Hard disk drives (HDD) and solid state drives (SSD)

7.3.10.2 Removing the SAS expander board

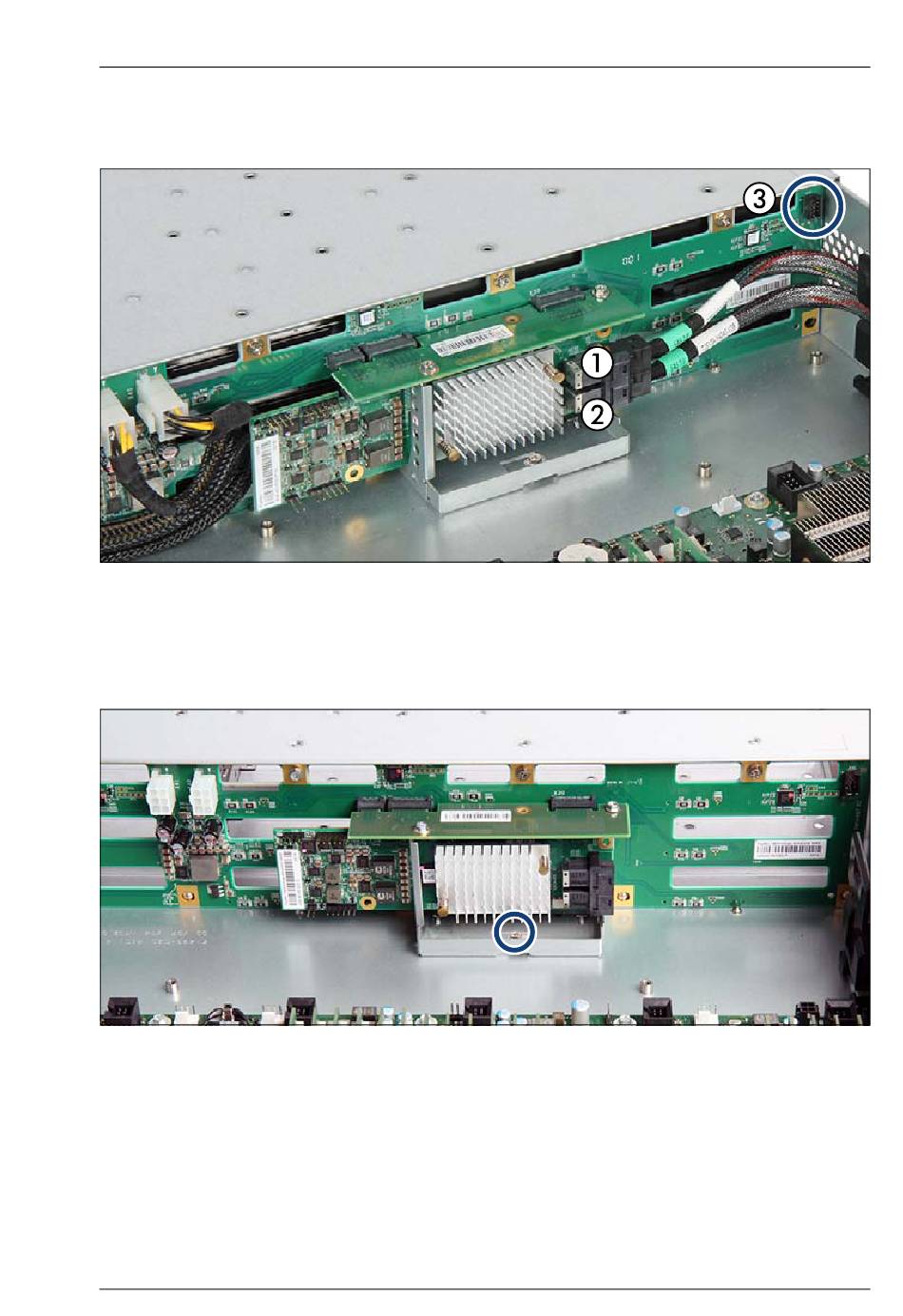

Figure 73: Disconnecting SAS cables
Ê Disconnect the two SAS cables from the SAS expander board (1, 2).
Ê If applicable, disconnect the OOB cable from the backplane (3).
Figure 74: Removing the SAS expander board holder (A)
Ê Remove the screw from the SAS expander board holder (see circle).
