Removing The Adf Separation Unit - Canon imageRUNNER ADVANCE 715 series Service Manual

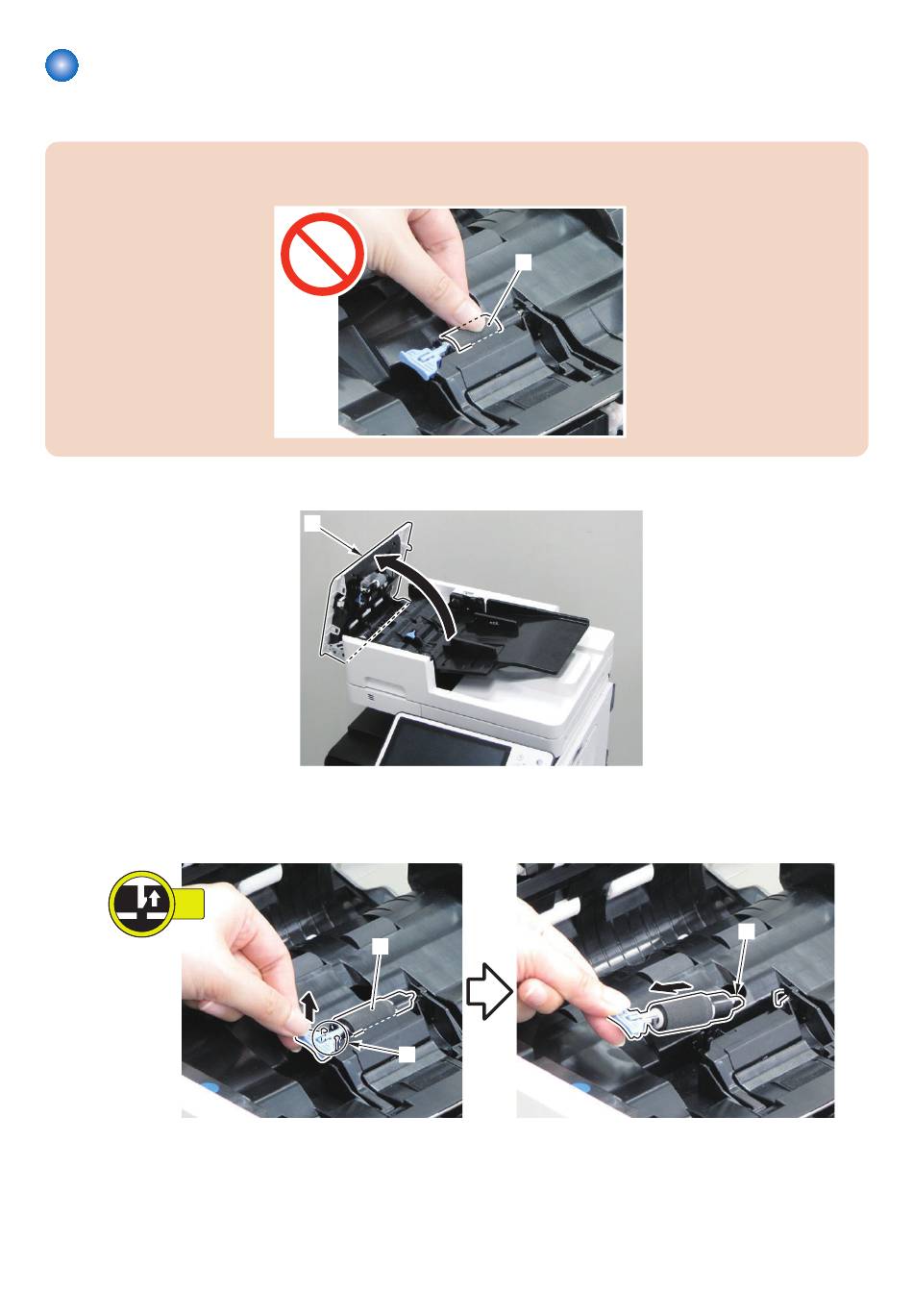

Removing the ADF Separation Unit

■ Procedure
CAUTION:
Be sure not to touch the surface [A] of the roller when disassembling/assembling.
1. Open the Feeder Cover [1].
2. Remove the ADF Separation Unit [1].
• 1 Claw [2]
• 1 Shaft [3]
1x
[1]
[1]
[2]
136
4. Parts Replacement and Cleaning
[A]
[3]
