10
11
12

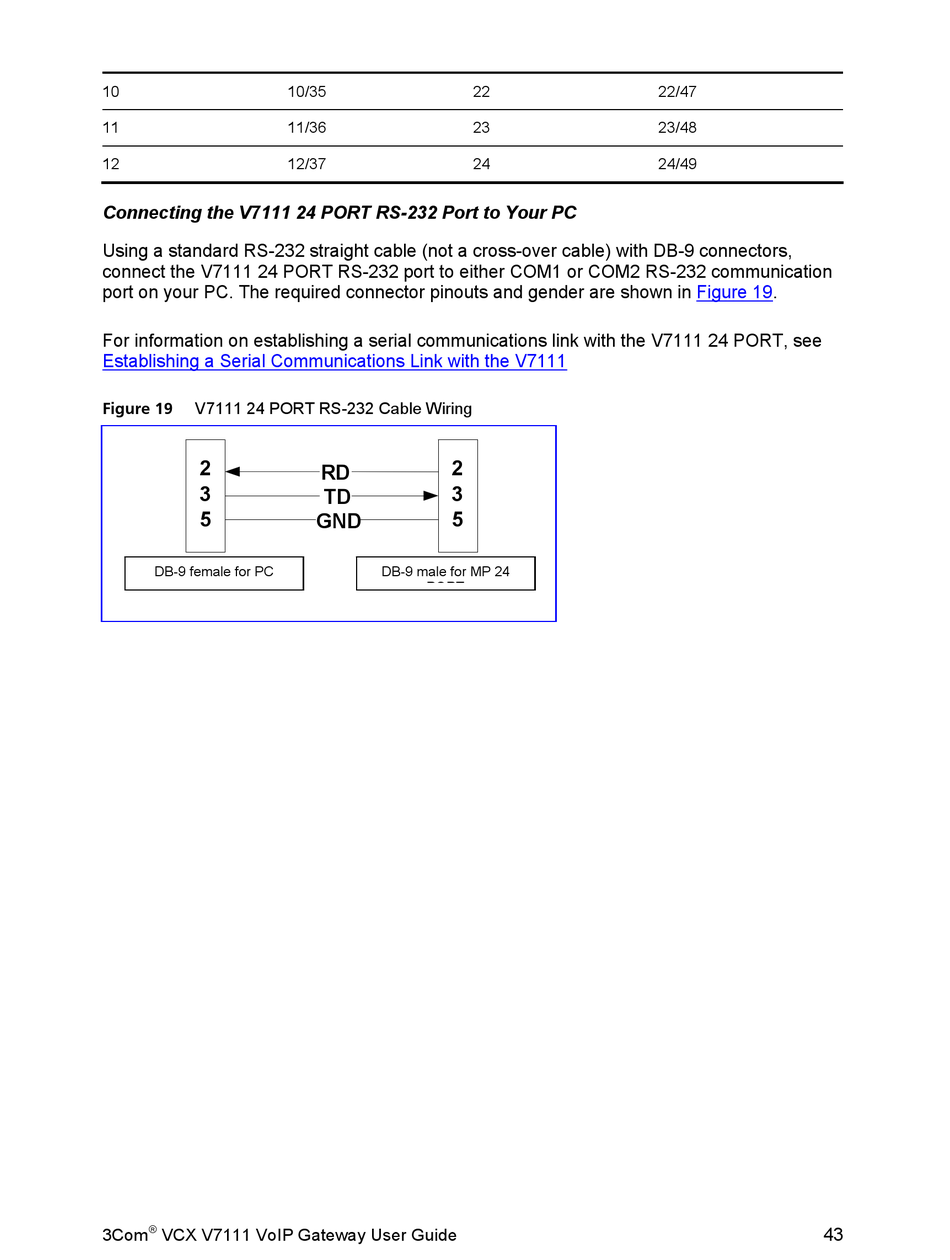

Connecting the V7111 24 PORT RS-232 Port to Your PC
Using a standard RS-232 straight cable (not a cross-over cable) with DB-9 connectors,
connect the V7111 24 PORT RS-232 port to either COM1 or COM2 RS-232 communication
port on your PC. The required connector pinouts and gender are shown in
For information on establishing a serial communications link with the V7111 24 PORT, see
Establishing a Serial Communications Link with the V7111
V7111 24 PORT RS-232 Cable Wiring
Figure 19
2
3
5
DB-9 female for PC
DB-9 female for PC
®
3Com VCX V7111 VoIP Gateway User Guide
10/35
11/36
12/37
2
RD
3
TD
5
GND
DB-9 male for MP 24
DB-9 male for MP-100
PORT
22
23
24
22/47
23/48
24/49
Figure 19.
43
