To add the prerecorded tone files (you created in Step 1) to the Prerecorded Tones
4
screen follow one of these procedures:
Select the files and drag them to the Prerecorded Tones screen.
Click the Add File(s) button; the Select Files screen opens. Select the required
Prerecorded Tone files and click the Add>> button. Close the Select Files screen.
For each raw data file, define a Tone Type, a Coder and a Default Duration by
5
completing the following steps:
Double-click or right-click the required file; the File Data window (shown in
154) appears.
From the Type drop-down list, select the tone type this raw data file is associated
with.
From the Coder drop-down list, select the coder that corresponds to the coder this
raw data file was originally recorded with.
In the Description field, enter additional identifying information (optional).
In the Default field, enter the default duration this raw data file is repeatedly played.
Close the File Data window (press the Esc key to cancel your changes); you are
returned to the Prerecorded Tones File(s) screen.

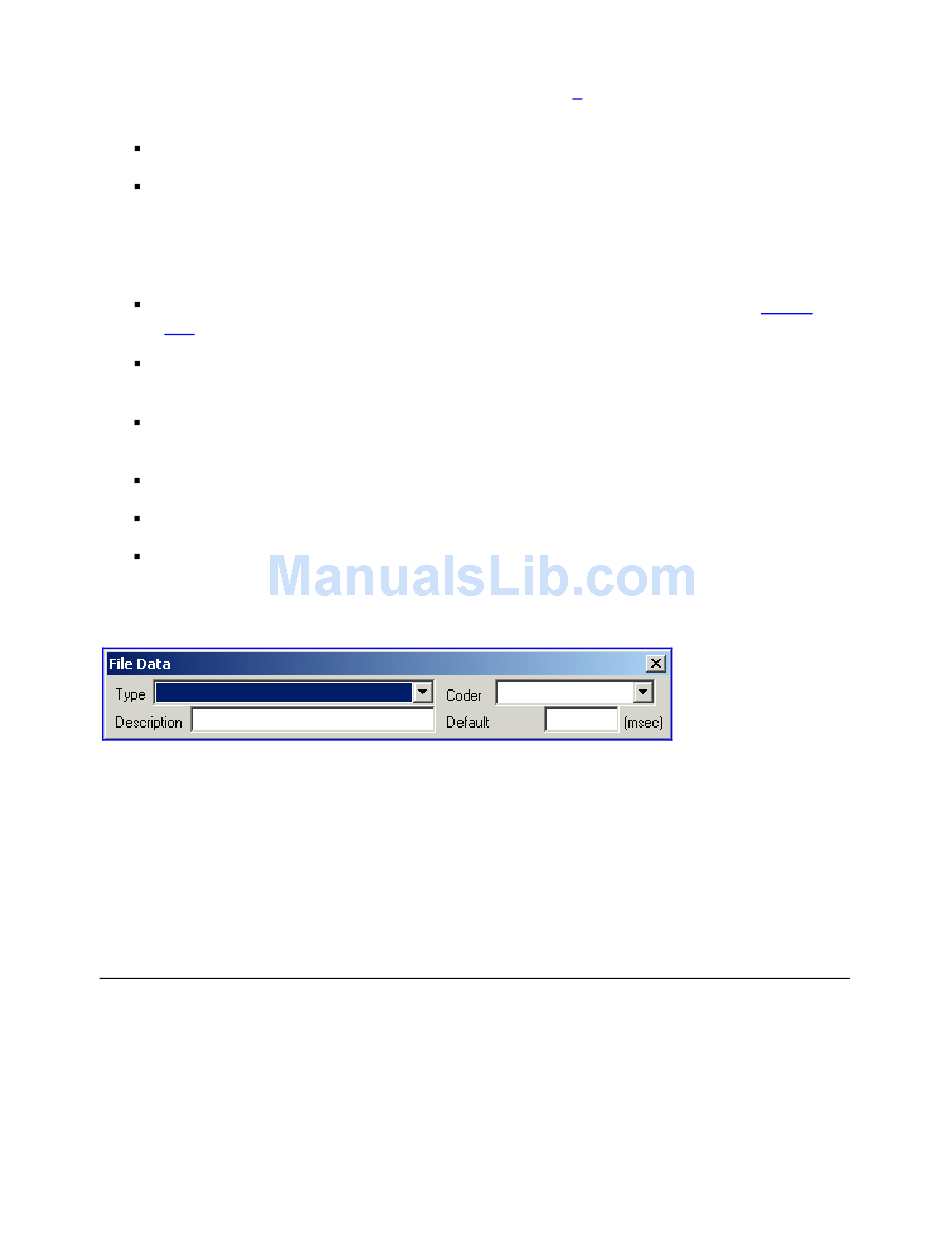

Figure 154 File Data Window
In the Output field, specify the output directory in which the PRT file is generated
6
followed by the name of the PRT file (the default name is prerecordedtones.dat).
Alternatively, use the Browse button to select a different output file. Navigate to the
desired file and select it; the selected file name and its path appear in the Output field.
Click the Make File(s) button; the Progress bar at the bottom of the window is activated.
7
The dat file is generated and placed in the directory specified in the Output field. A
message box informing you that the operation was successful indicates that the process
is completed.

Call Progress Tones Wizard

This section describes the Call Progress Tones Wizard (CPTWizard), an application
designed to facilitate the provisioning of a V7111/FXO gateway by recording and analyzing
Call Progress Tones generated by any PBX or telephone network.
®
