V7111 24 Port Physical Description; V7111 24 Port Front Panel - 3Com VCX v7111 User Manual

V7111 1x PORT Rear Panel Component Descriptions
Table 4
Item # Label
1 100-240~0.3A max.
2 Ethernet
3 RS-232
4 FXS or FXO
5 Reset

V7111 24 PORT Physical Description

V7111 24 PORT Front Panel

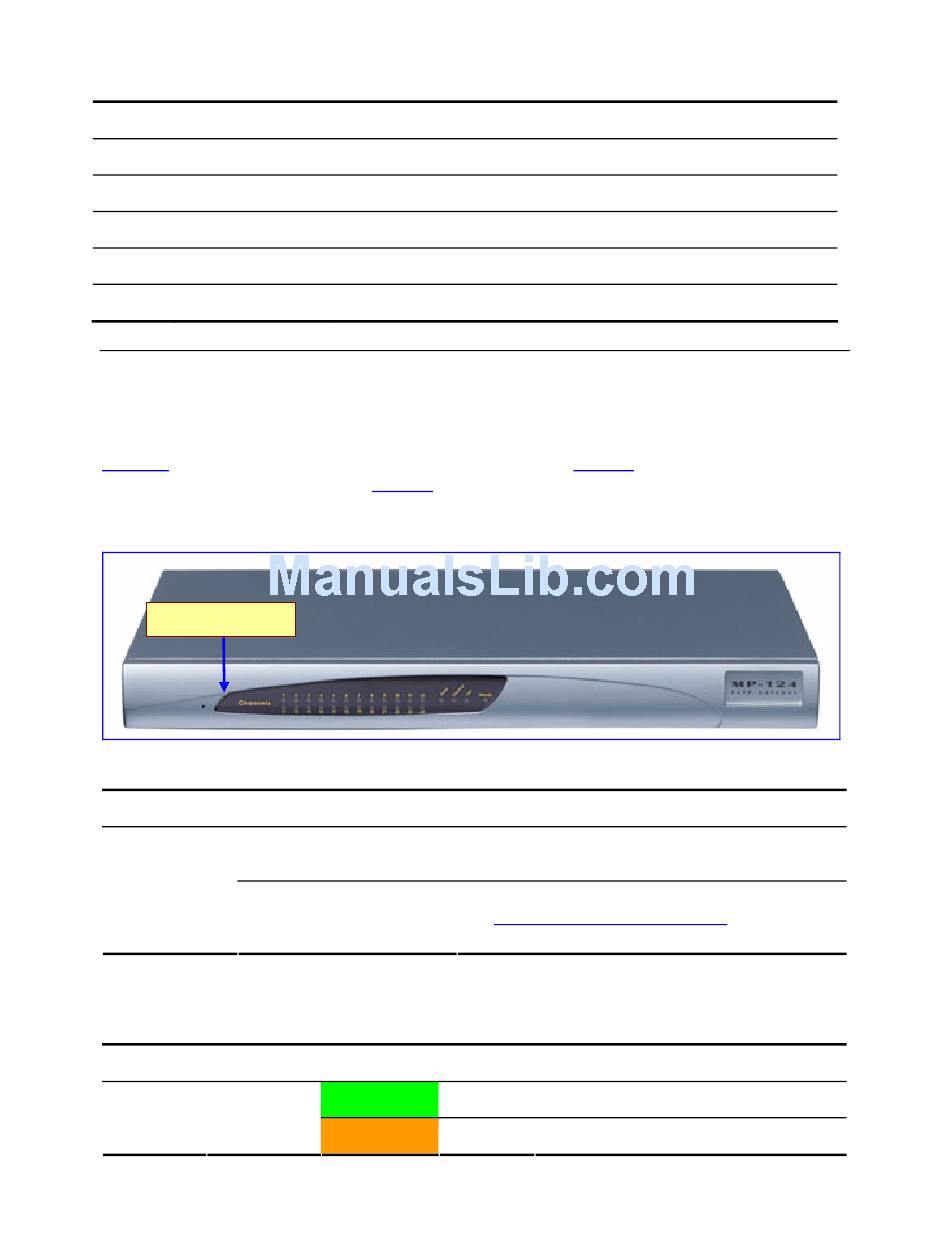

Figure 4 illustrates the front layout of the V7111 24 PORT.
button located on the front panel.
V7111 24 PORT Front Panel
Figure 4
Reset Button
Front Panel Buttons on the V7111 24 PORT
Table 5
Type Function
Resets the V7111 24 PORT
Reset button
Restores the V7111 24 PORT
parameters to their factory
default values
Indicator LEDs on the V7111 24 PORT Front Panel
Table 6
Label Type
Ready Device Status
®
3Com VCX V7111 VoIP Gateway User Guide
Component Description
AC power supply socket
10/100 Base-TX Uplink port
RS-232 status port (requires a DB-9 to PS/2 adaptor)
2, 4, or 8 FXS / FXO ports
Reset button
Table 6 lists and describes the front panel LEDs.
Comment
Press the reset button with a paper clip or any other
similar pointed object, until the gateway is reset.
See Restoring Networking Parameters
Color State
Green On
Orange Blinking
Table 5 describes the Reset
Function
Device Powered, self-test OK
Software Loading/Initialization
27
