3Com VCX v7111 User Manual page 130

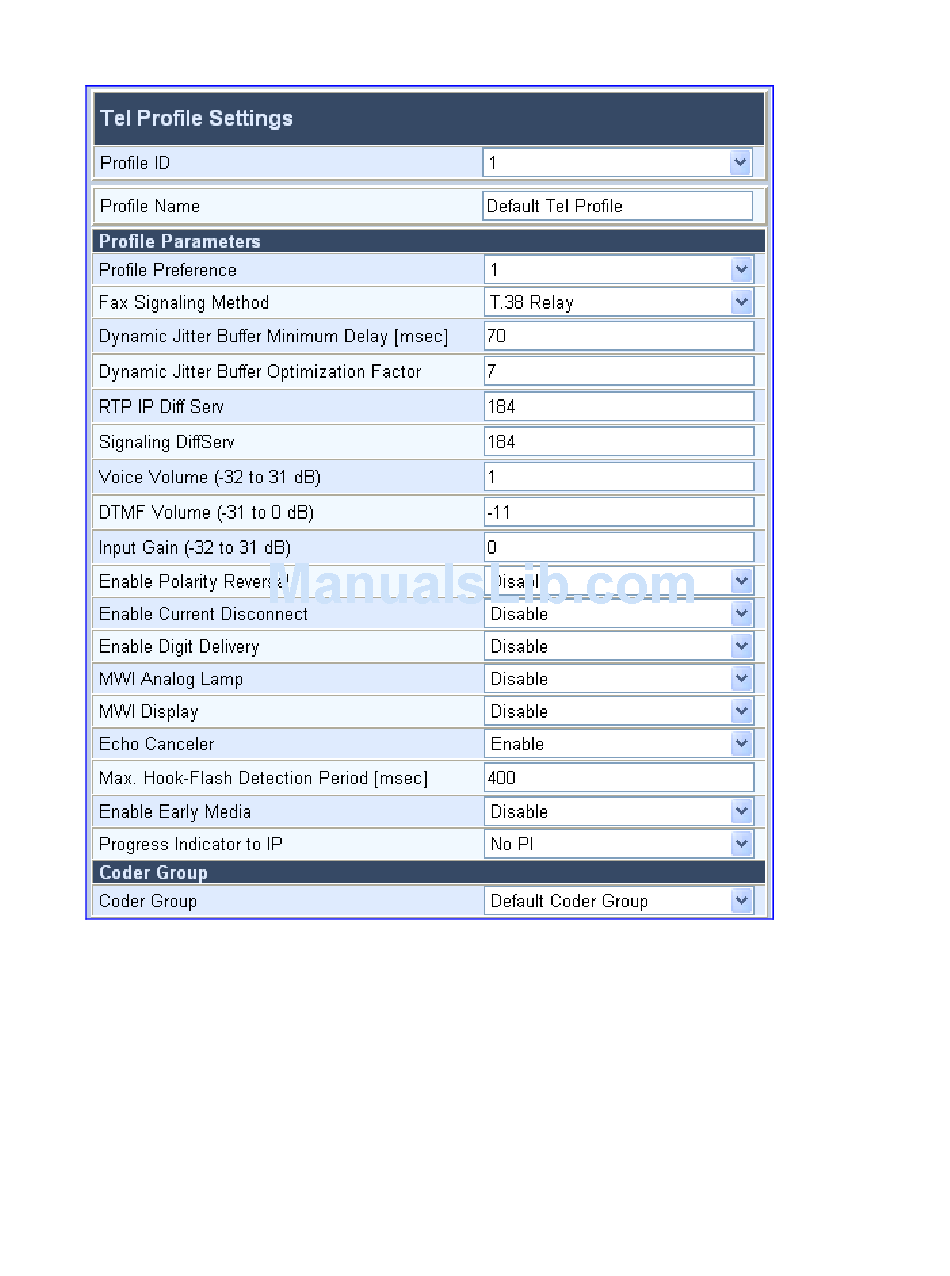

Tel Profile Settings Screen
Figure 43
From the Profile ID drop-down list, select the Tel Profile you want to edit (up to four Tel
2
Profiles can be configured).
In the Profile Name field, enter a name that enables you to identify the Profile intuitively
3
and easily.
From the Profile Preference drop-down list, select the preference (1-20) of the current
4
Profile. The preference option is used to determine the priority of the Profile. Where 20 is
the highest preference value. If both IP and Tel profiles apply to the same call, the
coders and other common parameters (noted by an asterisk in the description of the
parameter TelProfile_ID) of the preferred Profile are applied to that call. If the Preference
of the Tel and IP Profiles is identical, the Tel Profile parameters are applied.
130
®
3Com VCX V7111 VoIP Gateway User Guide
