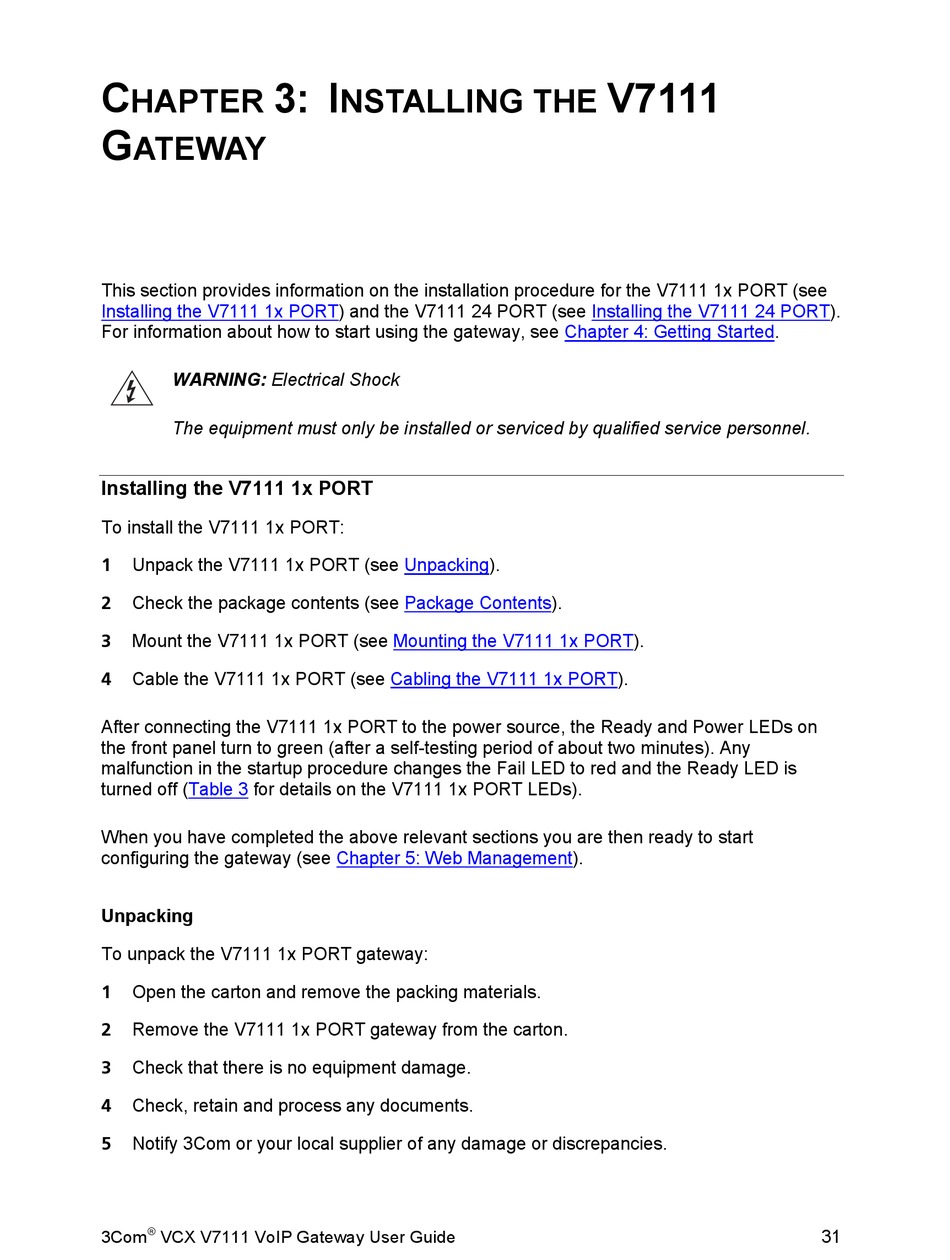

This section provides information on the installation procedure for the V7111 1x PORT (see
Installing the V7111 1x
For information about how to start using the gateway, see
WARNING: Electrical Shock
The equipment must only be installed or serviced by qualified service personnel.

Installing the V7111 1x PORT

To install the V7111 1x PORT:
Unpack the V7111 1x PORT (see
1
Check the package contents (see
2
Mount the V7111 1x PORT (see
3
Cable the V7111 1x PORT (see
4
After connecting the V7111 1x PORT to the power source, the Ready and Power LEDs on
the front panel turn to green (after a self-testing period of about two minutes). Any
malfunction in the startup procedure changes the Fail LED to red and the Ready LED is
turned off (Table 3 for details on the V7111 1x PORT LEDs).
When you have completed the above relevant sections you are then ready to start
configuring the gateway (see

Unpacking

To unpack the V7111 1x PORT gateway:
Open the carton and remove the packing materials.
1
Remove the V7111 1x PORT gateway from the carton.
2
Check that there is no equipment damage.
3
Check, retain and process any documents.
4
Notify 3Com or your local supplier of any damage or discrepancies.
5
®
