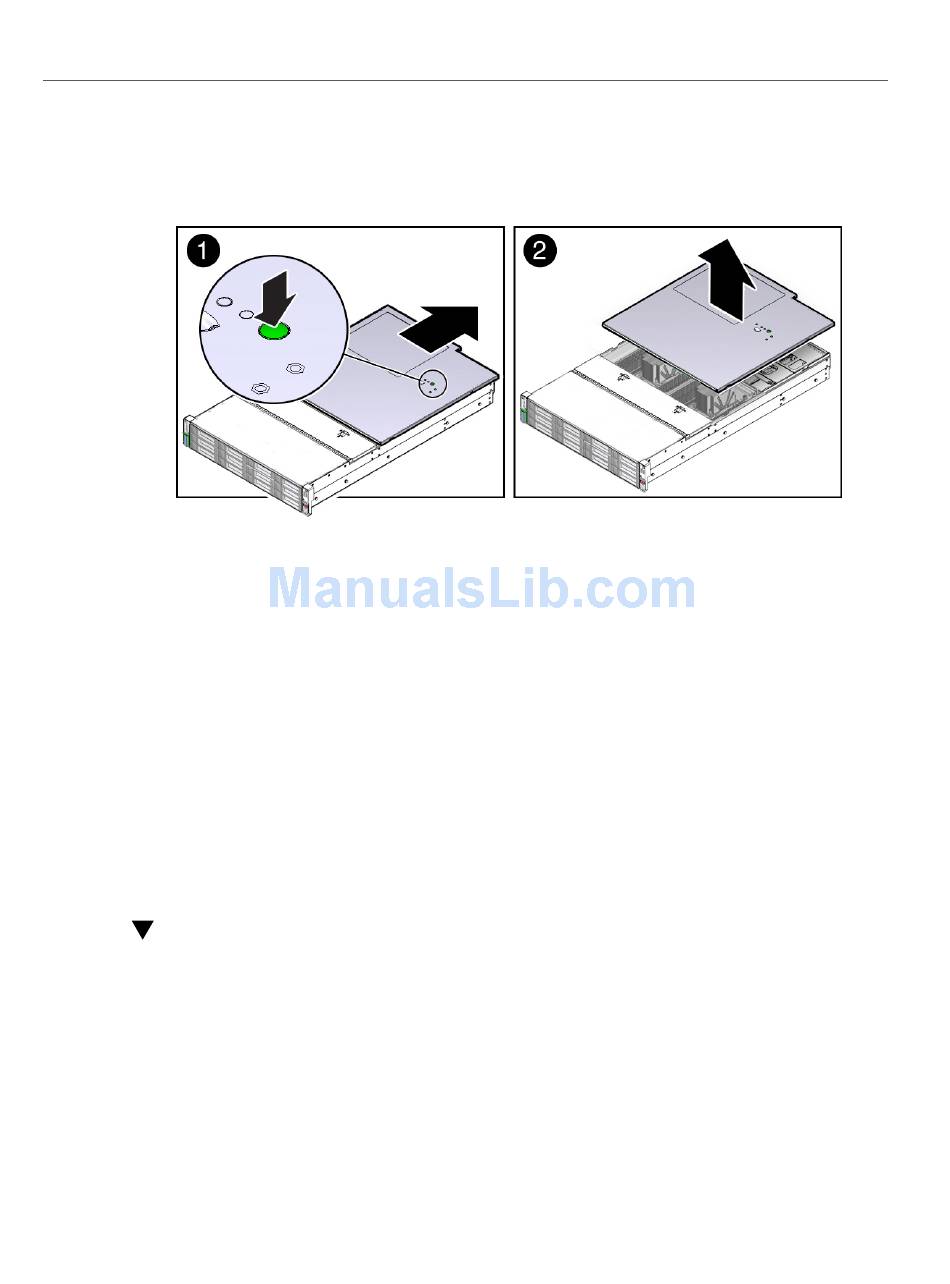

Press the green release button on the top of the server cover.
While pressing the top cover release button, slide the cover toward the rear of
3.
the server [2].
If necessary, open the fan assembly door.
4.
Lift up and remove the top cover [2].
5.
Related Information
"Take Antistatic Measures" on page 57
■
"Remove the Fan Assembly Door From the Server" on page 59
■
"Install the Server Top Cover" on page 161
■

Remove the Fan Assembly Door From the Server

Before you service the server's storage drive backplane, you should first remove the server's
front fan assembly door.
1. Ensure that the AC power cords are disconnected from the server power
supplies.
Remove the Fan Assembly Door From the Server
Preparing for Service 59
