Install the Fan Assembly Door

The procedures in this section should be used for systems configured with twelve 3.5-
Note -
inch storage drives.
Place the fan assembly door on the chassis and slightly over the fan assembly.
1.

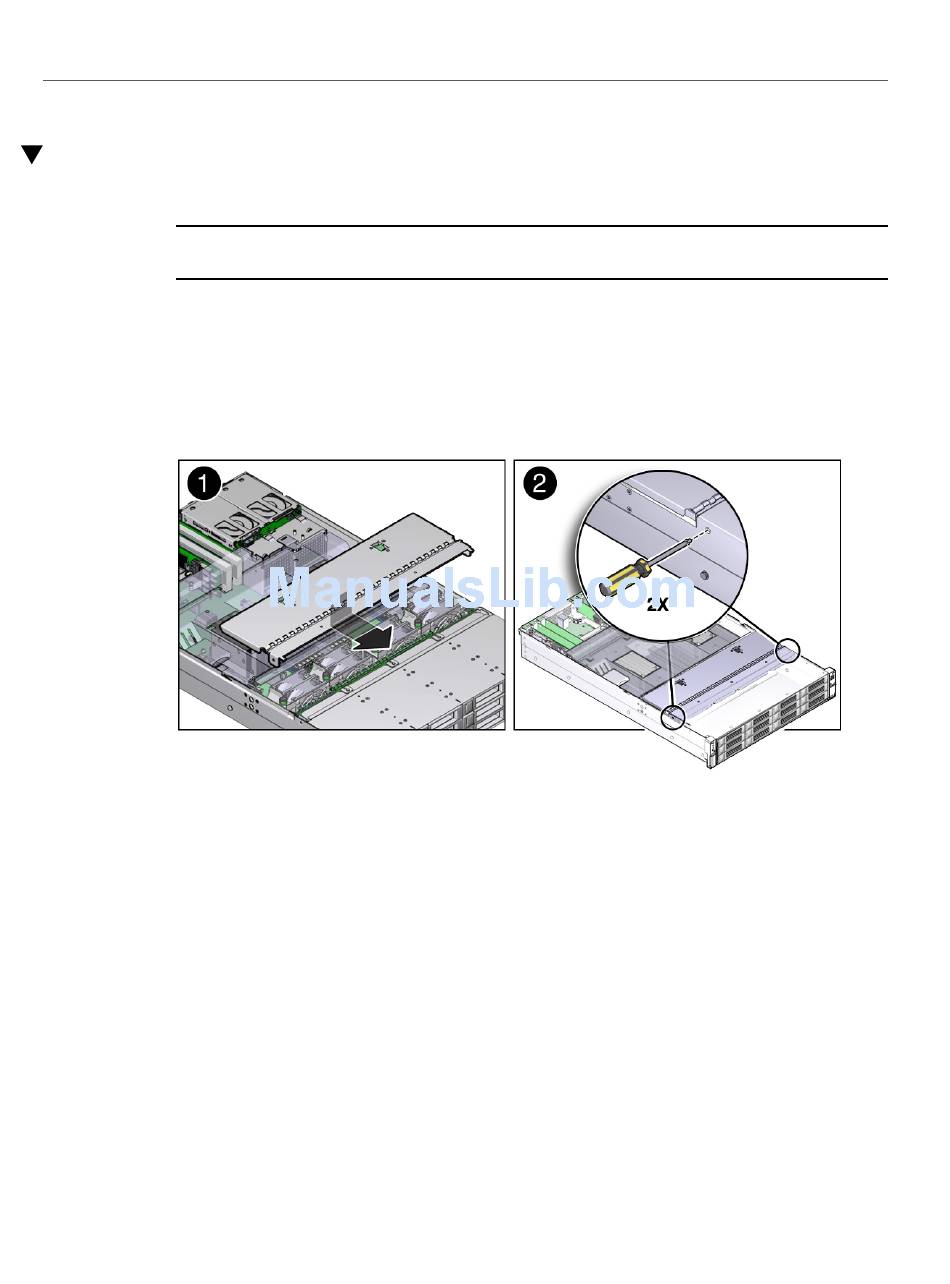

2. Slide the fan assembly door forward and under the lip of the forward top cover
until it latches into place [1].
3. Use a No. 2 Phillips screwdriver to install and secure the fan assembly door [2].
If your system is configured with twelve 3.5-inch storage drives, install and
■
tighten the two screws on each side of the chassis and the three screws on
top of the chassis.
If your system is configured with twenty-four 2.5-inch storage drives, install
■
and tighten the two screws on each side of the chassis.
Related Information
"Remove the Fan Assembly Door From the Server" on page 59
■
"Remove the Server Top Cover" on page 58
■
