A view reference is a symbol. You can create a view reference family in the Family Editor. View reference
families can contain lines, filled regions, text and labels for the view number and sheet number parameter
values.
To add a view reference:
1 Open the view to which you want to add a reference.
2 Click Annotate tab
3 On the Options Bar, select the target view.
4 Click in the drawing area to place the reference.
To hide view references
1 Click View tab
2 Click the Annotation Categories tab.
3 Clear the check box for View Reference.
Related topics
Duplicate Dependent Views
Adding Views to a Sheet

Propagating Dependent View Configuration

After you have set up dependent view configuration for one view, you can propagate the view and crop
region configuration to parallel views of the same scale. New dependent views display in the Project Browser
under the primary view, but are not placed on sheets.
NOTE If the view is on a sheet, right-click the view, and click Activate View.
Tag panel
Alternatively, click the crop region of the view you want to reference. If crop regions are not
visible click (Show Crop Region) on the View Control Bar.

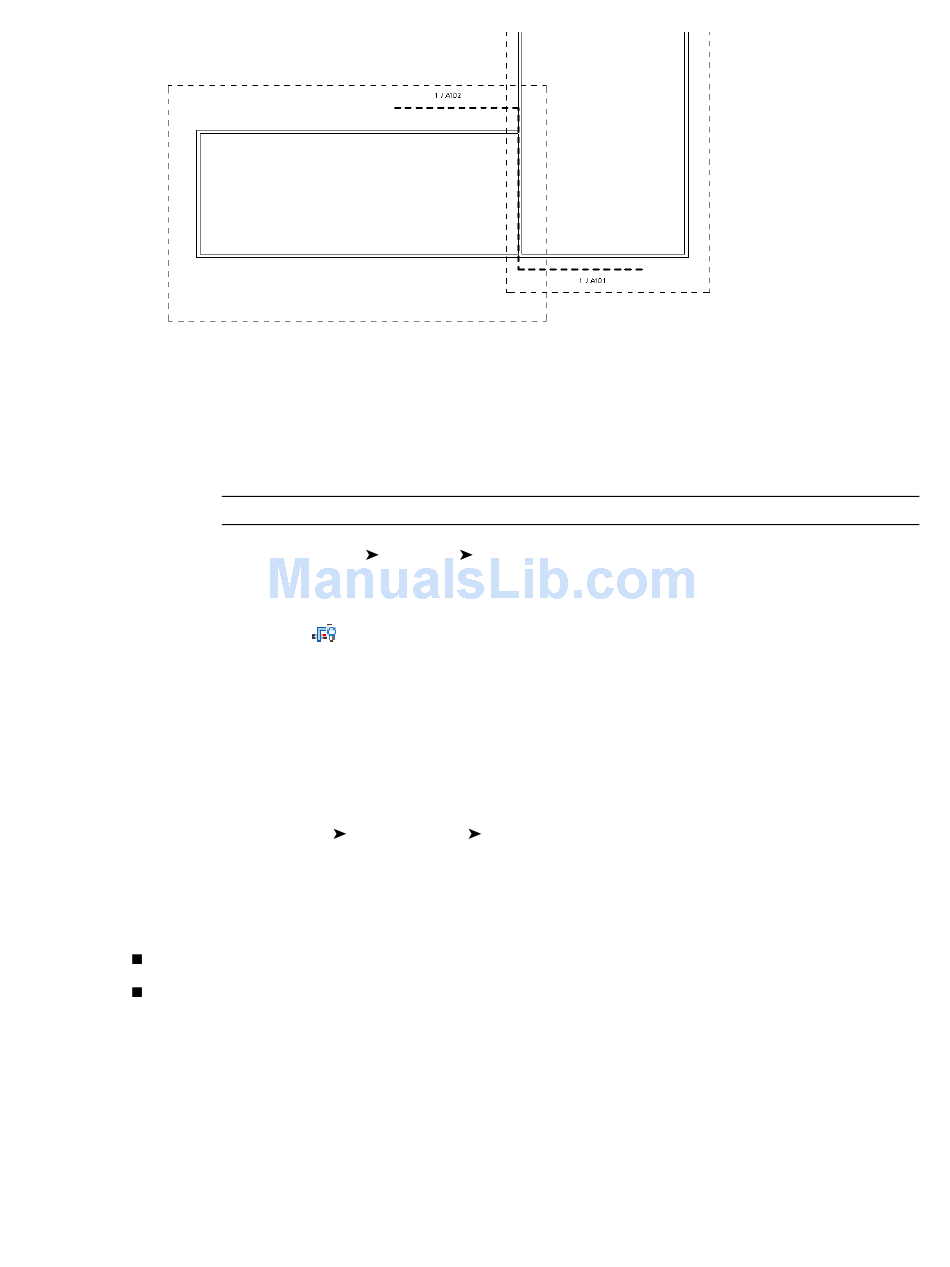

View references display in the primary view and all related dependent views (except for the view
that it is referencing). For example, if you have a view split into 2 dependent views (left and
right), and you add a view reference to the right view to reference the left, the view reference
appears in the primary view and in the right view, but not in the left view.
Graphics panel
on page 192
on page 1033
View Reference.
Visibility/Graphics, or use the keyboard shortcut VG.
Propagating Dependent View Configuration | 197
