Zooming Project Views

The Zoom tool changes the viewable area in the window.
The following Zoom options are available on the Navigation Bar:
Zoom in Region
Zoom Out (2X)
Zoom to Fit
Zoom All to Fit
Zoom Sheet Size
Previous Pan/Zoom
Next Pan/Zoom
If the Navigation Bar is hidden in your view, click View tab
drop-down
You can also zoom project views using the SteeringWheels. See

Maintaining Line Thickness when Zooming

The Thin Lines tool maintains the true thickness of lines relative to the zoom of the view. Typically, when
you zoom in on a model in a small scale view, element lines appear much thicker than they actually are.
When you activate the Thin Lines tool, it affects all views but does not affect printing or print preview.
To activate the tool, click View tab

View Scale

The view scale is the proportional system used to represent objects in a drawing. You can assign a different
scale to each view in a project. You can also create custom view scales.
To assign a view scale
Use one of the following methods:
In the Project Browser, right-click the view, and click Properties. In the Instance Properties dialog, for
View Scale, select a value.

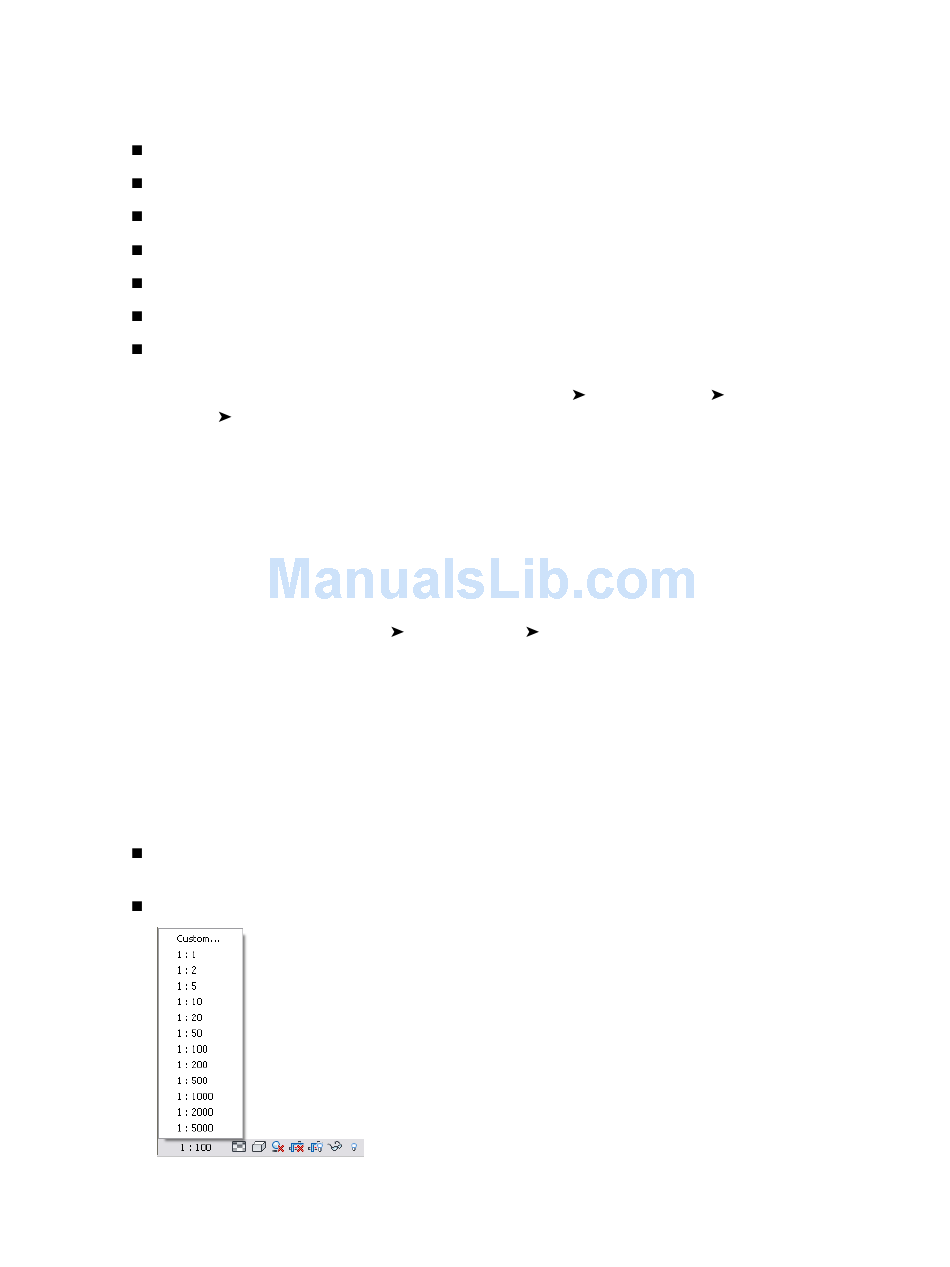

Select a scale from the View Control Bar.
Navigation Bar.
Graphics panel
Windows panel
Navigating Views
Thin Lines.
Zooming Project Views | 243
User Interface
on page 217.
