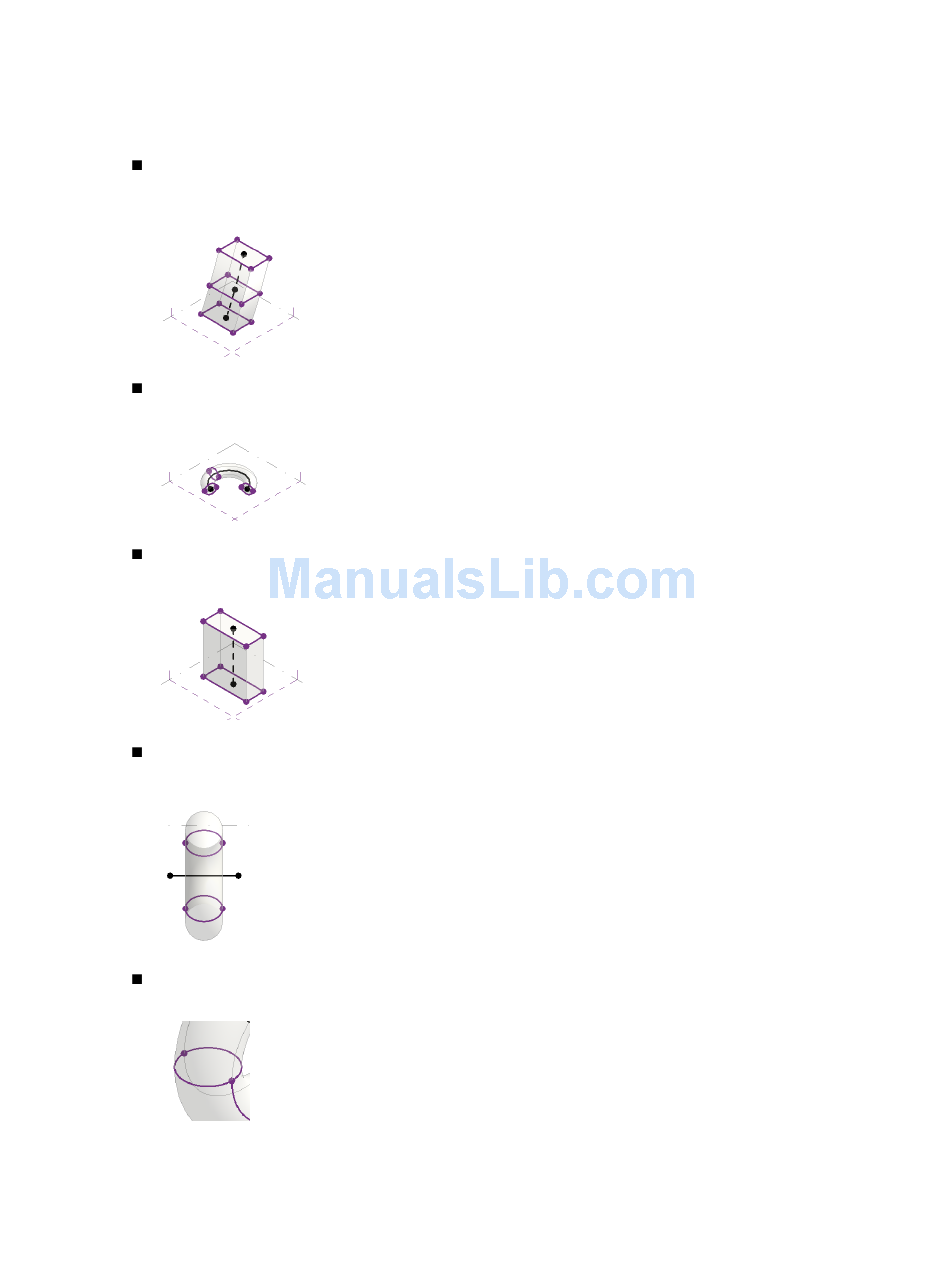

Display of Elements in X-Ray Mode
When X-Ray mode is enabled, it displays profiles, explicit and implicit paths, form axes, and the control
nodes that were used to create a form.
X-Ray mode displays the following:
Profiles
The closed loops you drew to define the shape of extrusions, lofts, revolves, and sweeps.
Explicit paths
The line you drew to define a sweep.
Implicit paths
The line that the system creates to construct extrusions and lofts.
Axis
The line you created to define the rotation of a revolve.
Control node
The points that the system creates on the path that hosts individual profiles.
548 | Chapter 11 Conceptual Design Environment
