Manipulating Forms in X-Ray Mode

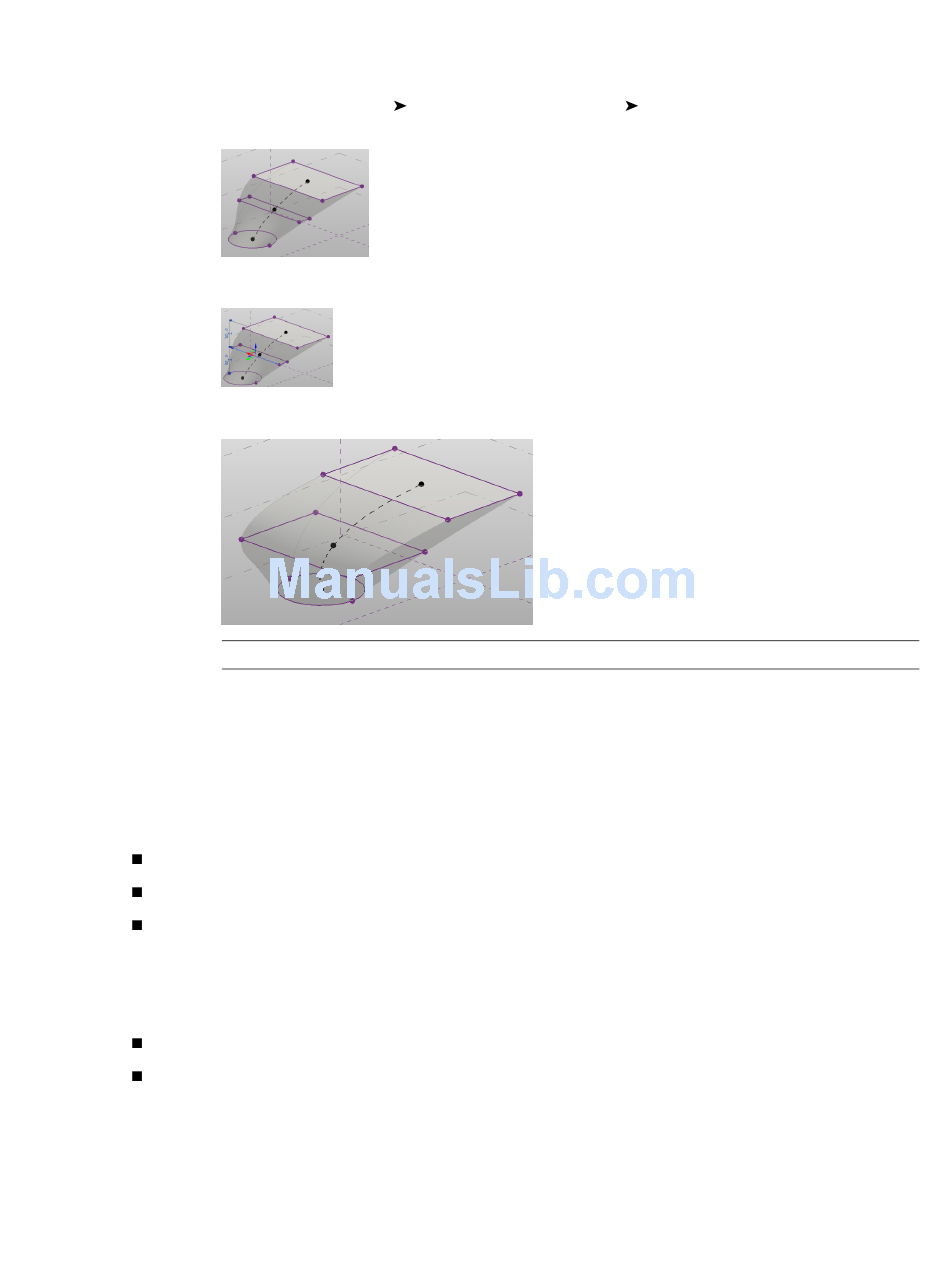

1 Select a form.
2 Click Modify Form tab
3 Double-click an element to select it. The 3D control displays.
4 Drag the 3D control arrow.

Profiles

A profile is a single line, chain of connected lines, or closed loop that can be used to generate a form. Profiles
can be manipulated to change the geometry of a form.
Profiles can be added to the following forms types:
extrusions
lofts
sweeps
(See Adding a Profile to a Form
Related topics
Locked Profiles
Locking and Unlocking Profiles
mode.
NOTE You can also select and delete profiles, edges, and vertices in X-Ray mode.
on page 562.)
on page 550
on page 550
Modify Form Element panel
Manipulating Forms in X-Ray Mode | 549
