Changing Mitering Options for Roof Fascia

1 In the drawing area, select the fascia.
If there are many elements near the fascia that make selection difficult, you can use the filter
selection tool to select the fascia. Highlight the area where the fascia is using a pick box, and
click Multi-Select tab
2 Click Modify Fascias tab
3 Select a mitering option:
Vertical
Horizontal
Perpendicular
4 Click on the end face of the fascia to change the miter option.

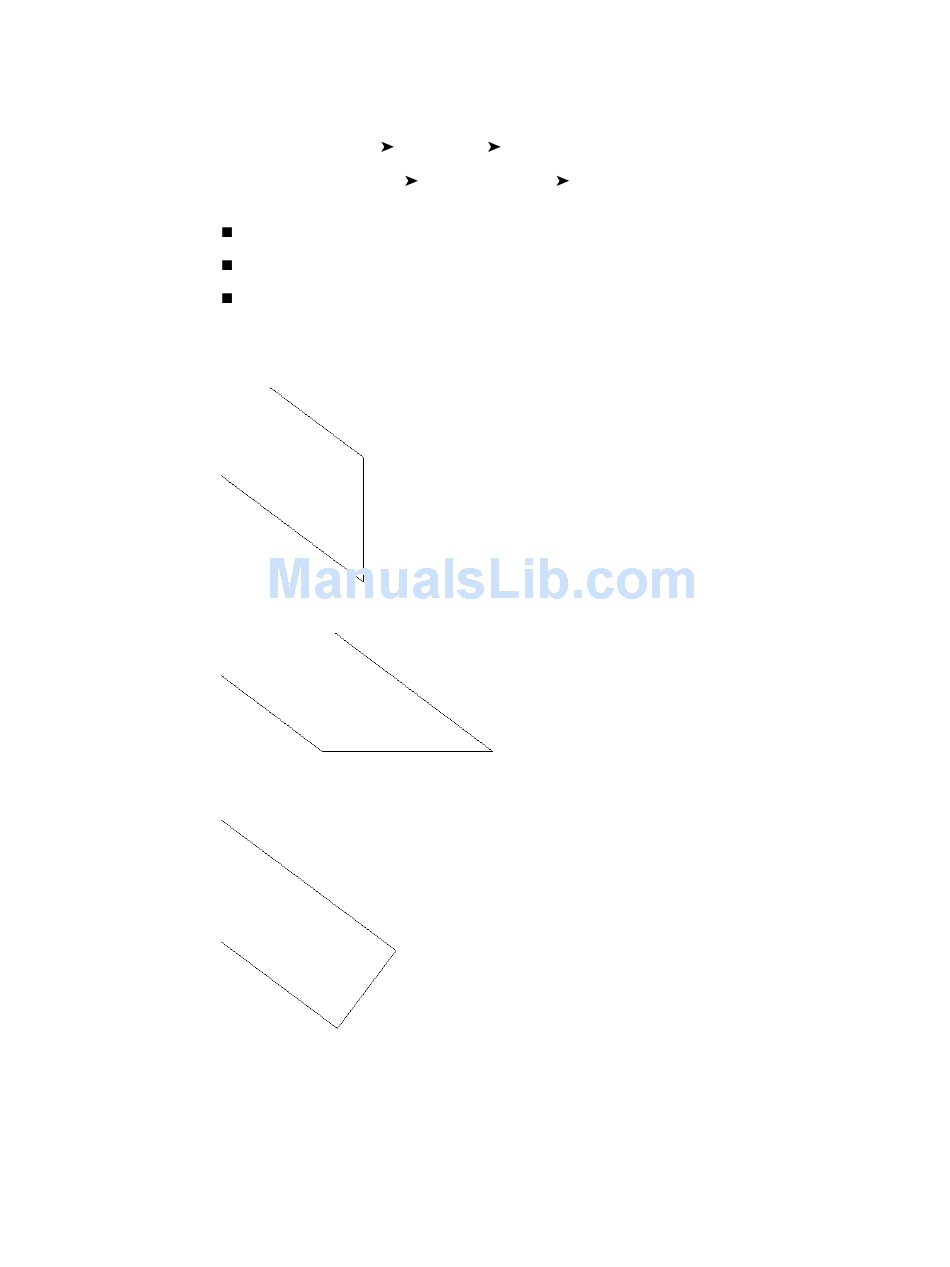

Vertical miter
Horizontal miter
Perpendicular miter
5 Press Esc to exit the Modify Mitering tool.
Roof fascias can miter between the eave and rake edges of a plumb-cut gable roof.
Filter panel Filter. Select only Fascias and click OK.
Roof Fascia panel Modify Mitering.
