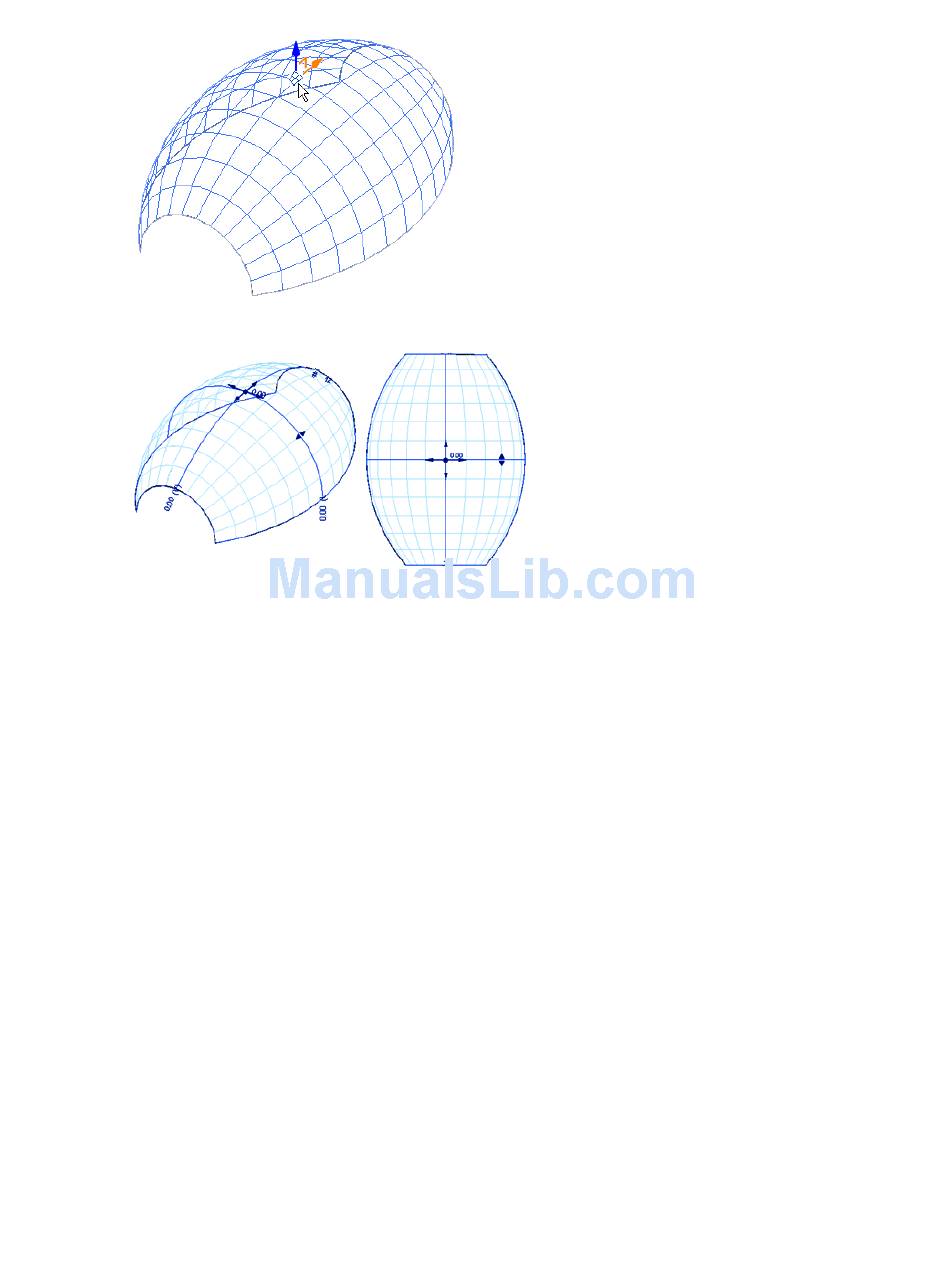

Once selected, UV grid editing controls display on the surface.
Editing Spacing between Divisions
Spacing for the distance and number of divisions of both U and V grids are located at the ends of their
respective belts. These parameters are the same as the spacing grids parameters previously seen on the Options
Bar. See Modifying the Spacing of UV Grids on Divided Surfaces on page 571.
To change these, click on them and type new parameters.

Rotating UV Grids

You can rotate the direction of each or both UV grids. Rotation angle controls are located at the ends of
their respective belts. Changing the values of these parameters will rotate the grids.
To change the rotation of a grid, click on the value field and type a new rotation angle.
