6 Click Finish Roof.
To see the roof, open a 3D view.

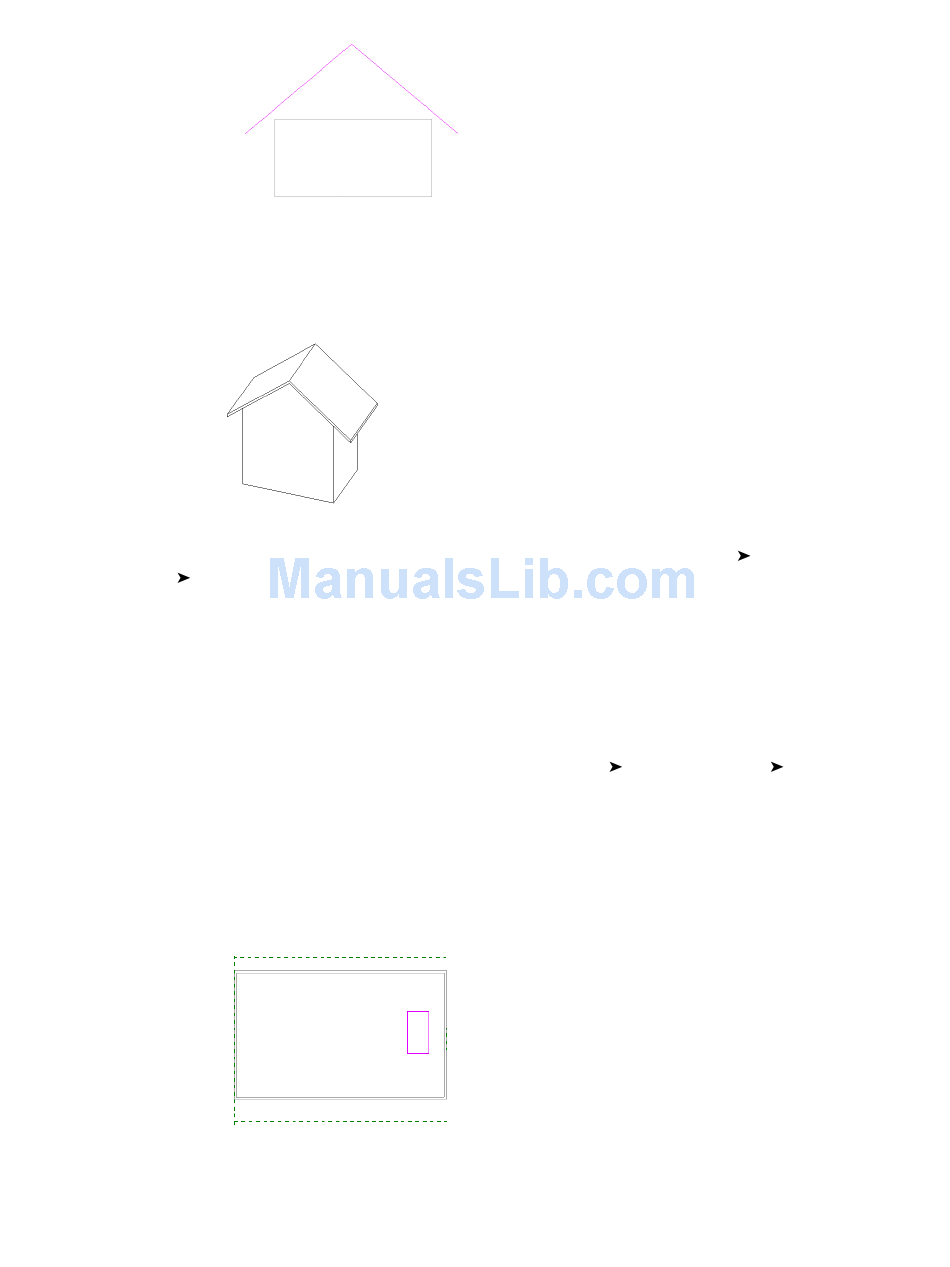

Completed extruded roof
If you need to attach walls to the roof, select the walls and click Modify Walls tab
panel Attach. Then, select the roof. See
information.
After you create a roof by extrusion, you can rehost the roof or edit the work plane of the roof. For more
information, see Rehosting Work Plane-based and Face-based Elements and Components
Changing the Work Plane of an Element
Cutting Openings in an Extruded Roof
1 Select the extruded roof, and click Modify Roofs tab
2 If the Go to View dialog is displayed, choose the appropriate plan view in which to edit the
profile.
A plan view representation of the roof is displayed. Reference planes define the boundary of the
roof.
3 Sketch closed-loop openings in the roof using the sketch tools.
Closed-loop sketches in sketch mode
4 Click Finish Roof.
Attaching Walls to Other Components
on page 318.
Modify Wall
on page 651 for more
on page 812 and
Modify Roof panel Vertical Opening.
Adding a Roof | 679
