Controlling Visibility and Graphic Display of Elements Using Filters

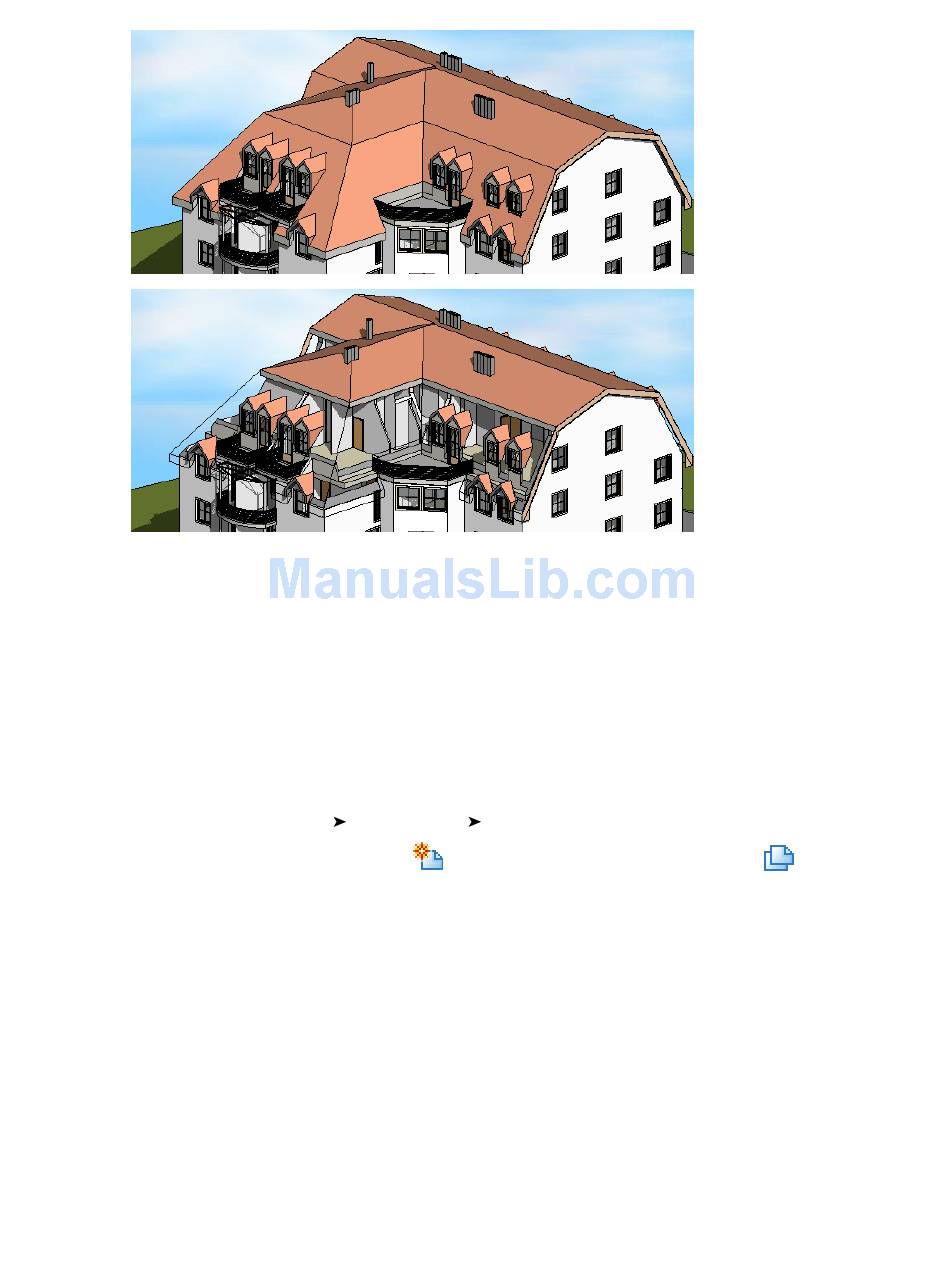

Filters provide a way to override the graphic display and control the visibility of elements that share common
properties in a view. For example, if you need to change the line style and color for 2-hour fire-rated walls,
you can create a filter that selects all walls in the view that have the 2-hour value for the Fire Rating parameter.
You can then select the filter, define the visibility and graphic display settings (such as line style and color),
and apply the filter to the view. When you do this, all walls that meet the criteria defined in the filter update
with the appropriate visibility and graphics settings.

Creating a Filter

1 Click View tab
2 In the Filters dialog, click
204 | Chapter 5 Project Views
Graphics panel Filters.
(New), or select an existing filter and click (Duplicate).
