Tagging Mass Floors

After creating mass floors, you can tag them in 2D views. The tags can include information about the area,
exterior surface area, perimeter, volume, and usage for each mass floor. If you change the shape of the mass,
the tags update to reflect the changes. (For information about tags, see Tags on page 1123.)
Revit Architecture provides the Mass Floor Tag and M_Mass Floor Tag families. These tags reside in the
Annotations folder of the Revit Architecture library. They provide information about the usage and square
units per mass floor.
To display other parameter values in a mass floor tag, create your own, or use the example provided in the
Training folder: Mass Floor Tag-Complex.rfa or M_Mass Floor Tag-Complex.rfa. If you use the default
installation location for tutorial content, these files reside in the following location:
C:\Documents and Settings\All Users\Application Data\Autodesk\<product name and
version>\Training\<Imperial or Metric>\Families\Annotations
When applying these complex tags to mass floors, you can select a family type to display the desired
information, as shown.

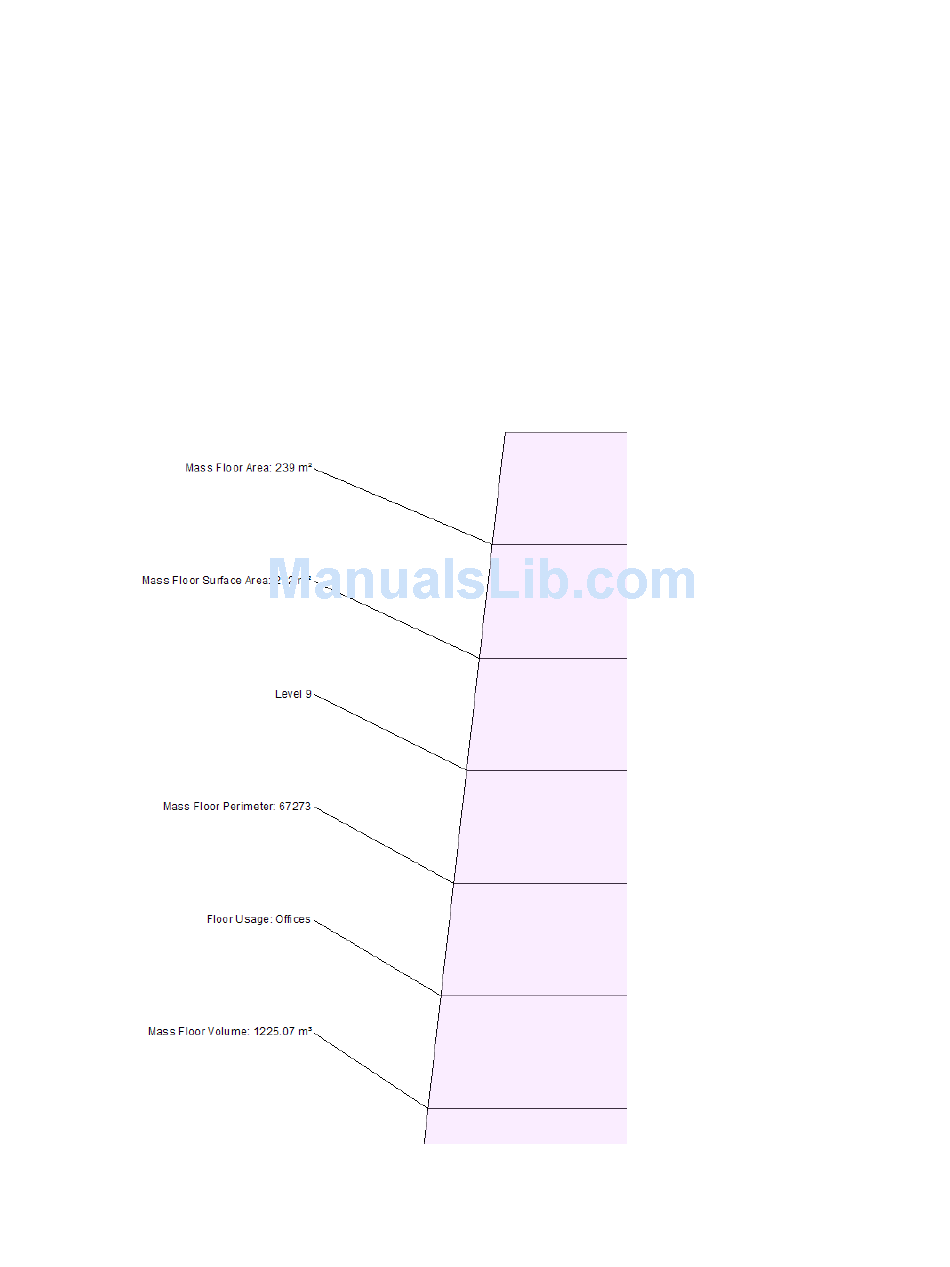

Sample tags for mass floors
