Locking Permanent Dimensions

When you place permanent linear or angular dimensions, a lock control appears with the dimension. Locks
appear when you select
A permanent dimension.
An element constrained by a dimension. An element is constrained if it is referenced by a locked segment
or is a reference in an equality dimension.
If the lock is unlocked, the dimension value is modifiable and the element that it references is free to move
in any direction. You can click the dimension value and change it.
If the lock is locked, the dimension value is fixed, preventing any change to the distance between its referenced
components. You cannot click the dimension value to change it.

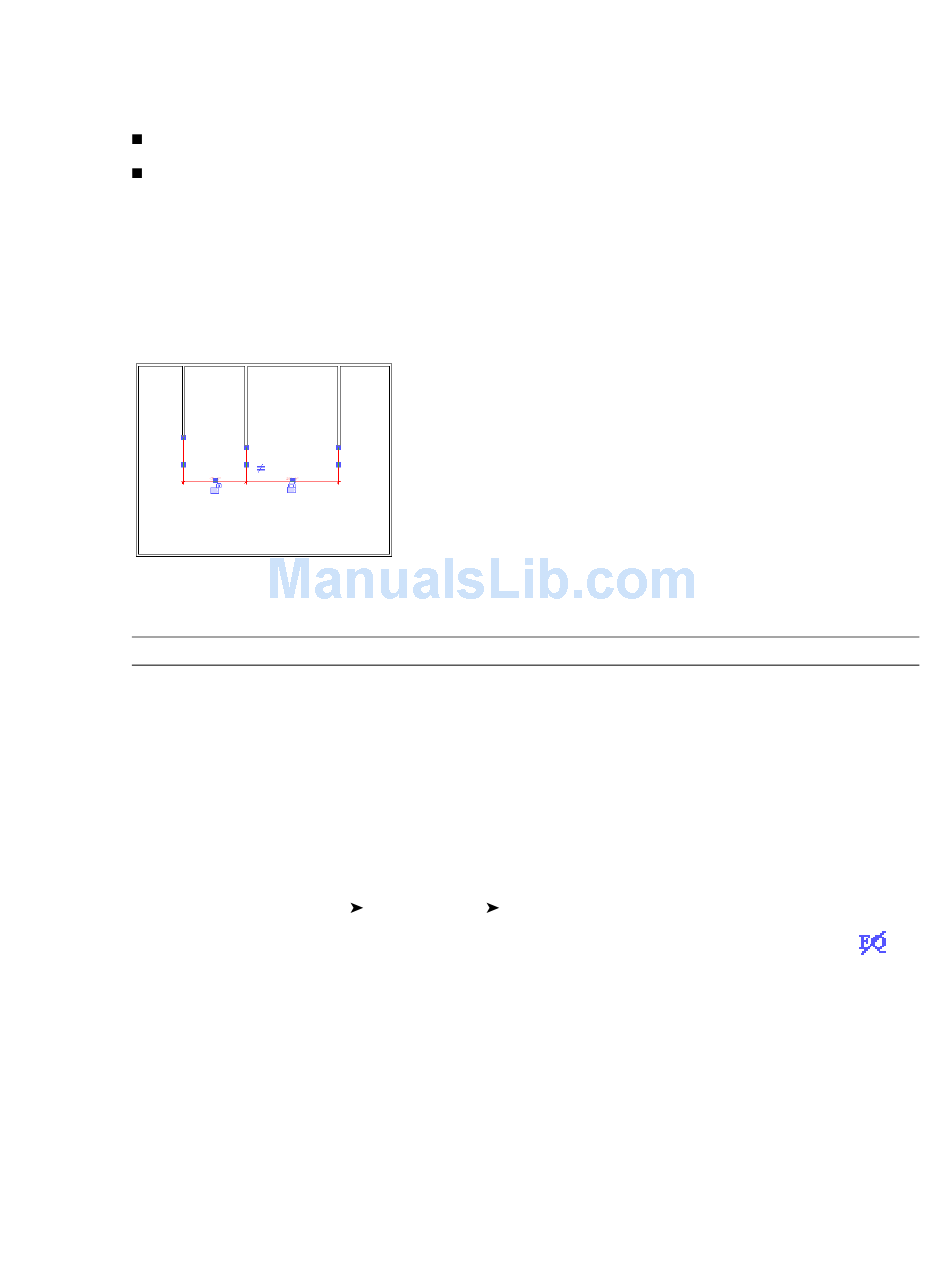

Selected dimension with locked and unlocked controls
Clicking on the lock switches it between the locked and unlocked state. Once a dimension is locked, you
must unlock it to change its value.
TIP You can also switch the locked and unlocked state of the lock by right-clicking on it and choosing Toggle.
Also see Applying Constraints with Dimensions
Anchoring Elements Referenced in Multi-Segmented Dimensions
In a multi-segmented, equality constrained dimension, you can use the anchor symbol to designate the
anchored element. The element that is anchored remains stationary while you move other elements in a
dimension.
1 Create a multi-segmented dimension. See
2 Click Modify tab
3 In the drawing area select the dimension, and click the Dimension Equality symbol (
4 Select any element the dimension references, except the one you want to anchor.
272 | Chapter 6 Using Dimensions and Constraints
information on creating dimensions.
Selection panel
make the dimension equally constrained.
An anchor symbol appears near the dimension.
on page 300.
Placing Permanent Dimensions
Modify.
on page 265 for
) to
