Adding columns in 3D View
It is helpful to set up a grid before adding structural columns, as they snap to grid lines (see
Adding Grids
on page 1093).

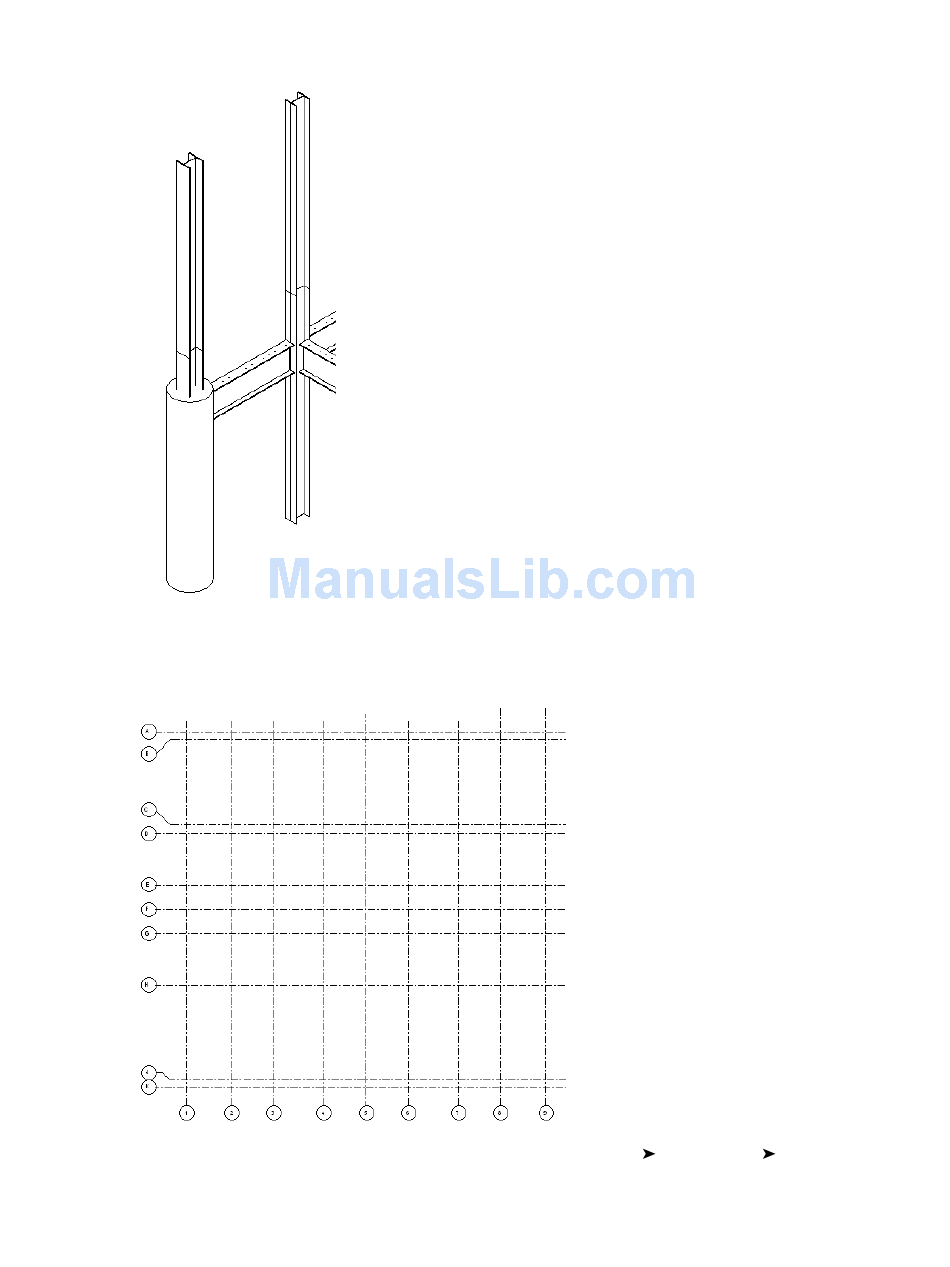

Sample grid for placing structural elements
The grid lines also provide vertical planes for braces. Click Home tab
Datum panel
Grid.
Structural Columns | 821
