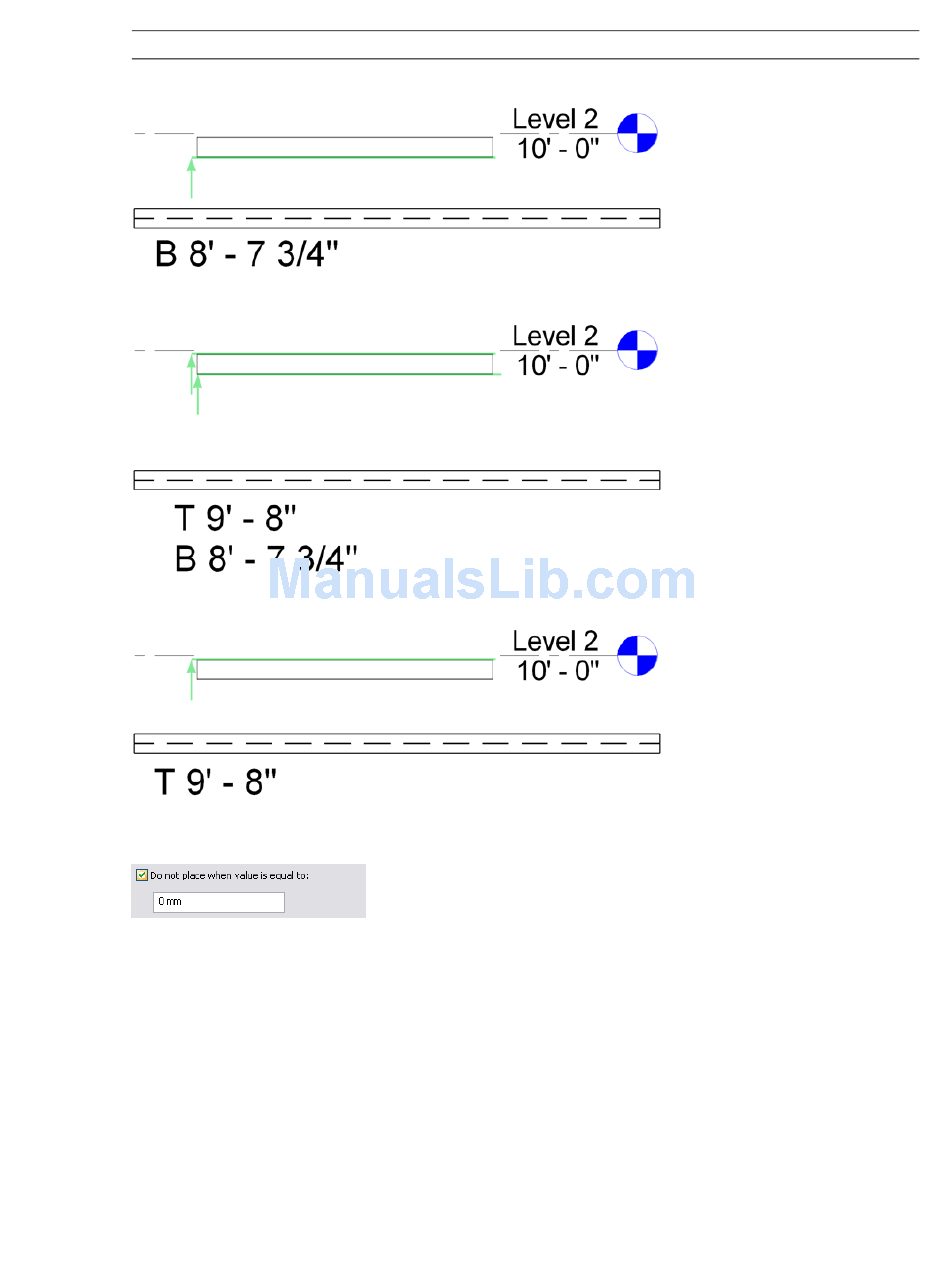

NOTE Actual (Selected) Elevation tags the elevation of the location line, not the beam geometry.
Bottom Elevation
Top & Bottom Elevations
Top Elevation
The final option available in the Select Annotation Type dialog for spot elevations is a filter for defined
elevations.
This option enables a filter that prevents spot elevations from being created if it equals the entered value.
The default setting is 0 units as defined by the project.

Beam Properties

Several properties for beams, including work plane, materials, and angle, are accessible in the Instance
Properties dialog.
Beam Properties | 857
