can click the control again to pin the element to its new position. For information on placing pushpin
controls, see Preventing Elements from Moving

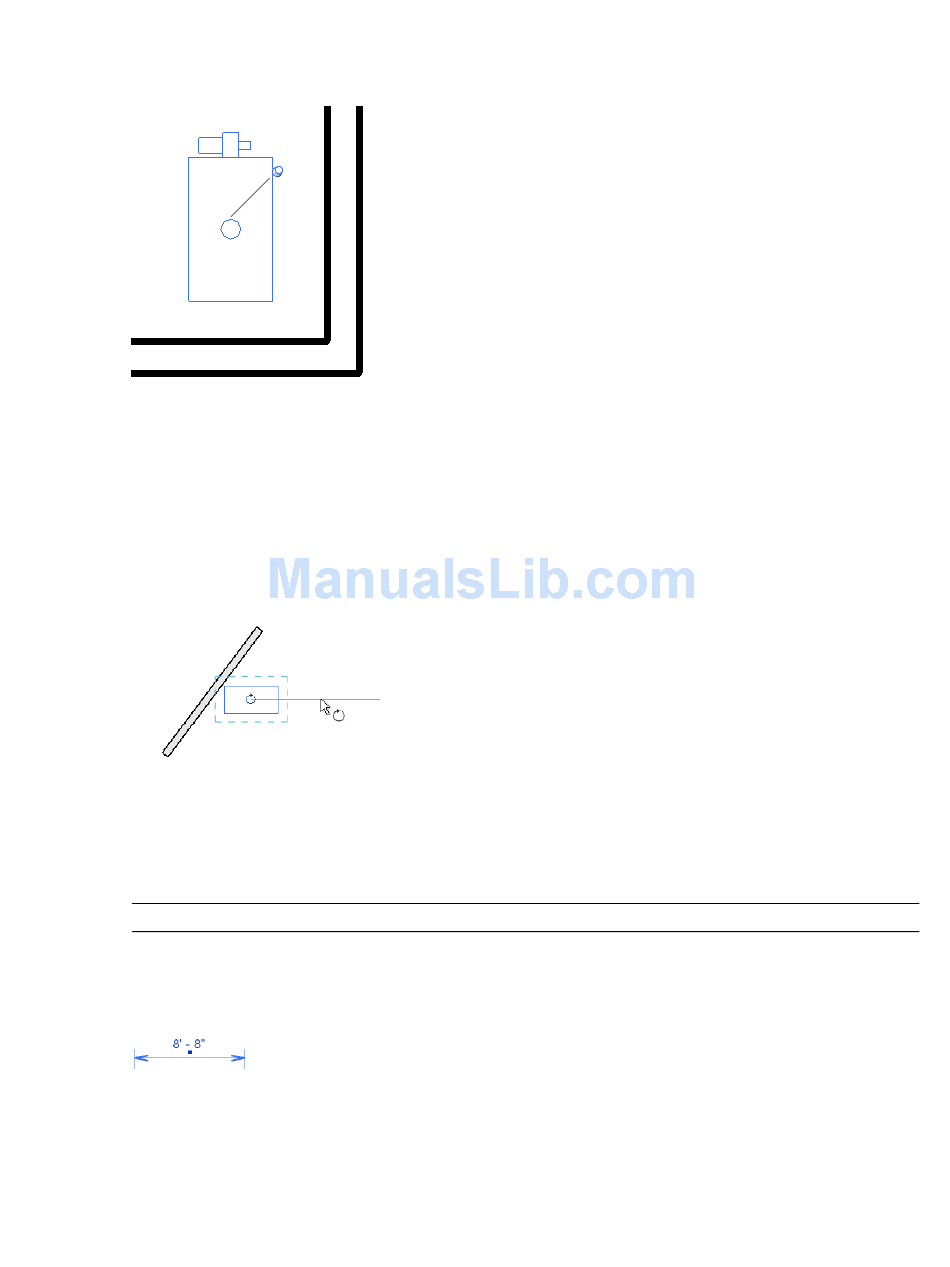

Pushpin control on a locked component

Rotate Controls

Use rotate controls to drag an element or text note to a desired degree of rotation around a central axis.
If desired, drag the center of rotation symbol. The symbol snaps to points and lines of interest, such as walls
and the intersections of walls and lines. You can also drag it onto open space.
See Rotating Elements on page 379.
Rotate control

Dimension Text Controls

Dimension text controls are blue squares that display on selected dimension elements that you have added
to a drawing. Drag a control to move dimension text away from the dimension line.
NOTE You may need to zoom in to see dimension text controls.
See Dimension Witness Lines
Dimension text
control shown in
blue
on page 382.
on page 284.
Controls and Shape Handles | 351
