Logos and Images in a Title Block

To include a corporate logo or image in a title block, you can import an image file into a title block family.
Revit Architecture supports the following image file types: BMP (bitmap), JPEG, JPG, PNG (portable network
graphics), and TIFF.

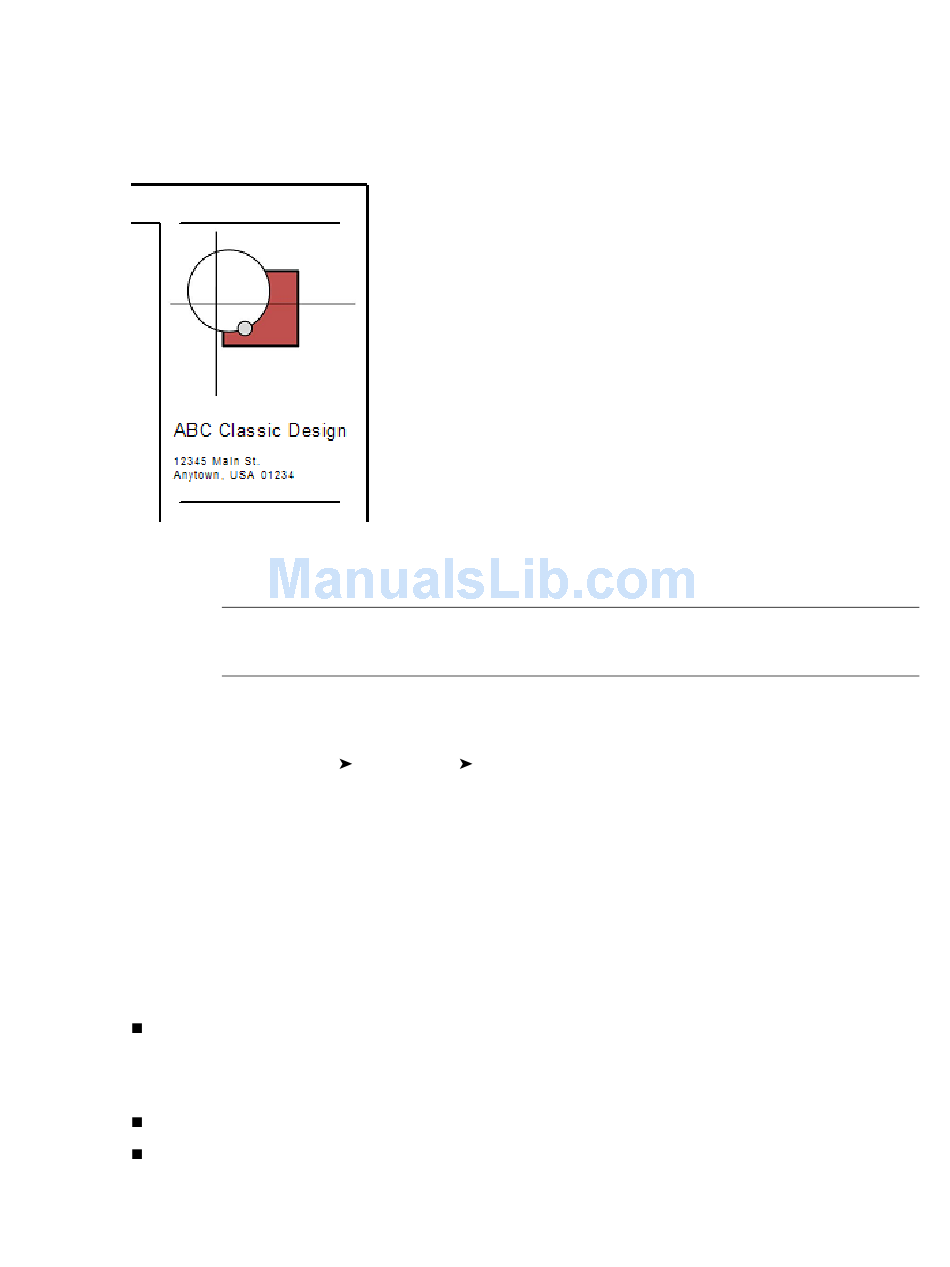

A corporate logo in a title block
To import an image into a title block
1 Prepare the image or logo, and save it in a supported file format.
2 Open the title block in the Family Editor.
3 Click Insert tab
4 In the Import Image dialog, navigate to the location of the image file.
5 Select the image file, and click Open.
6 Click in the drawing area to place the image.
To reposition the image, drag it to the desired location on the sheet. To resize the image, select it and drag
a blue corner dot.

Loading a Title Block into a Project

You can load a title block into a project as follows:
When creating or modifying a title block. After saving changes to the title block family, in the Family
Editor, click Load into Project. If multiple projects are currently open, select the open projects into which
you want to load the title block, and click OK. If only one project is open, Revit Architecture loads the
title block into that project without further input.
When adding a sheet to a project. See
Using the ribbon in a project. Use the following procedure.
1048 | Chapter 17 Preparing Construction Documents
TIP Import the file using the image size at which you want it to display in the title block. If you load
and resize a large image file in the title block, Revit Architecture retains the large file size, which can
degrade performance. To improve performance, use the smallest acceptable image file.
See Modifying a Title Block
Import panel
on page 1047.
Image.
Adding a Sheet on page 1032.
