Editing Wall Joins

NOTE The Wall Joins tool is not recommended for complex wall joins (for example, a wall join with more than 4
walls, a wall join on many floors, or a wall join that is in more than one workset). For more information, see
Complex Wall Joins on page 654.
1 Click Modify tab
2 Move the cursor over the wall join and click.
A square encloses the wall join.
3 On the Options Bar, select a join type:
Butt: Creates a butt join between the walls. This is the default join type.

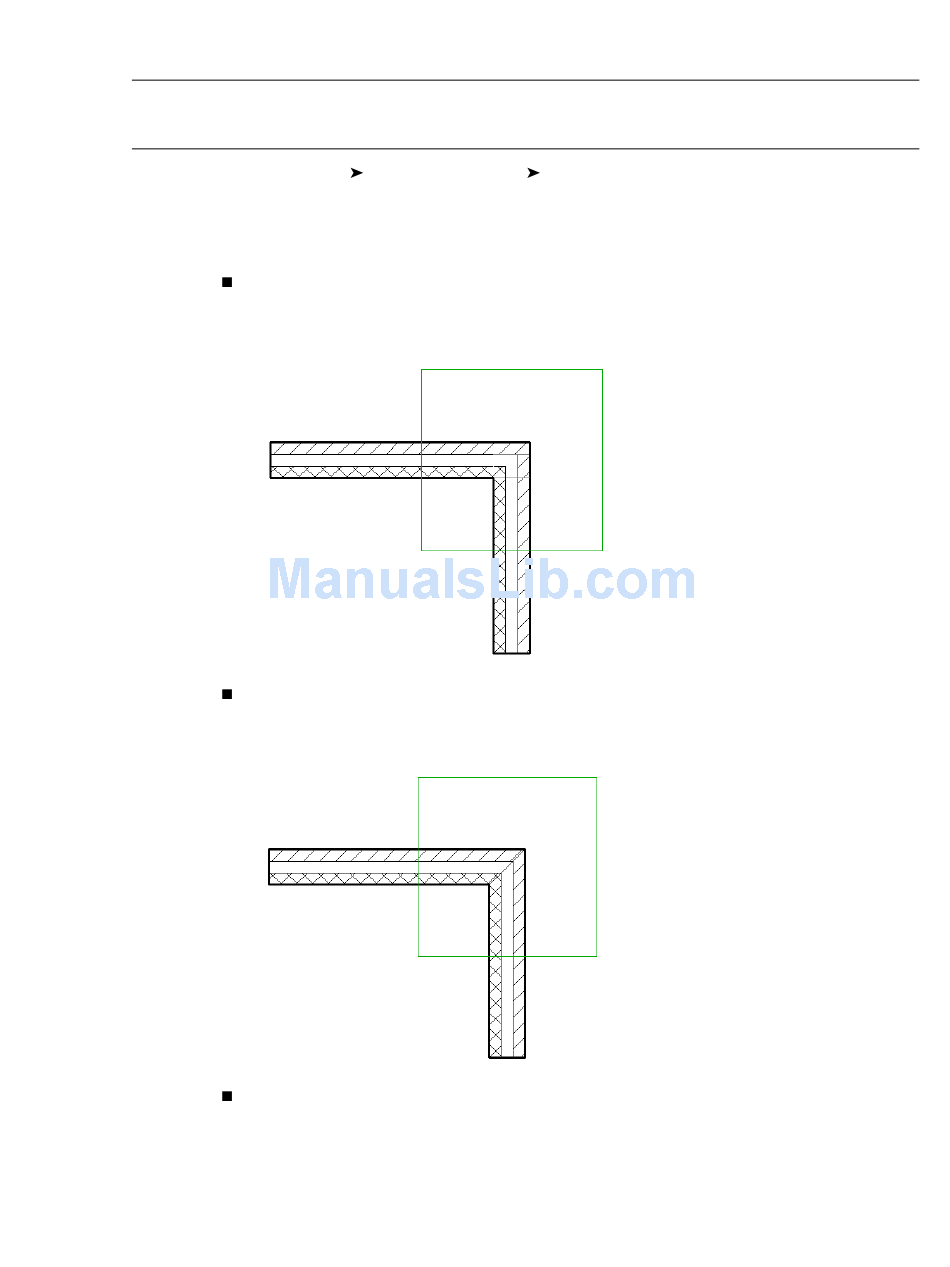

Butt join
Miter: Creates a miter join between the walls. All wall joins less than 20 are mitered.
Miter join
Square off: Squares a wall end to 90. This option is not available for walls already joined at
90.
Edit Geometry panel Wall Joins.
Editing
Wall Joins | 653
