Constrain: Restricts movement of array members along vectors that run perpendicular or
colinear to the selected elements.
NOTE You cannot group together detail components and model components.
5 If you selected Move To 2nd, place array members as follows:
a Click in the drawing area to indicate a starting point for measuring.
b Move the cursor the desired distance between members. As you move the cursor, a box
appears to indicate the size of the selected elements. The box moves along snap points. A
dimension appears between the first click location and the current cursor position.
c Click again to place the second member, or type a dimension and press ENTER.
6 If you selected Move To Last, place array members as follows:
a Click in the drawing area to indicate a starting point for measuring.
b Move the cursor to the desired location for the last array member. As you move the cursor,
a box appears to indicate the size of the selected elements. The box moves along snap
points. A dimension appears between the first click location and the current cursor position.
c Click again to place the last member, or specify a dimension and press ENTER.
7 If you selected Group and Associate on the Options Bar, a number box appears, indicating the
number of copies to create in the array. If desired, change the number and press ENTER.
Revit Architecture creates the specified number of copies of the selected elements, and places them using
the appropriate spacing.

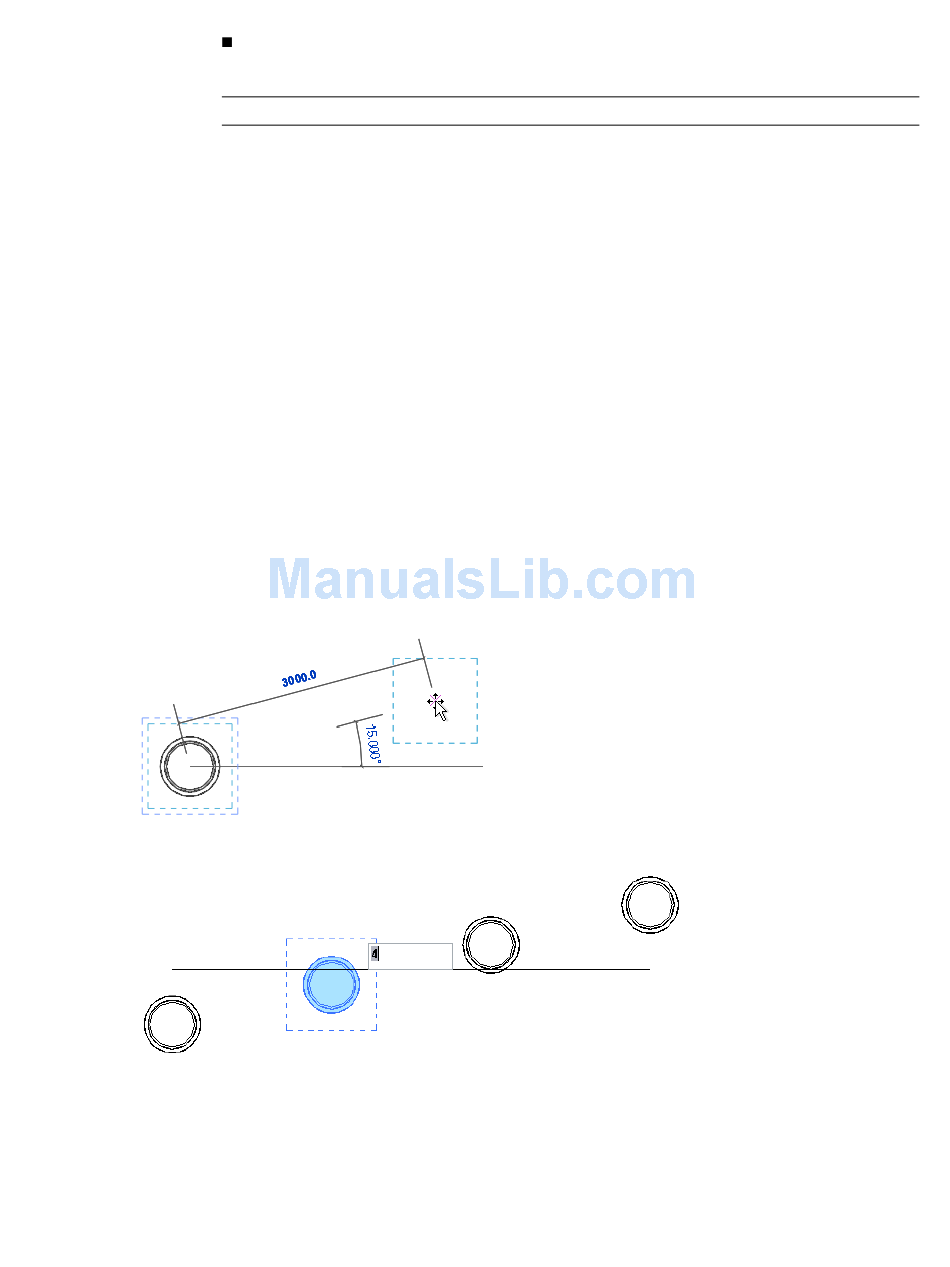

Placing the first and second items in a linear array
Specifying the number of elements in the array
Creating an Array | 367
