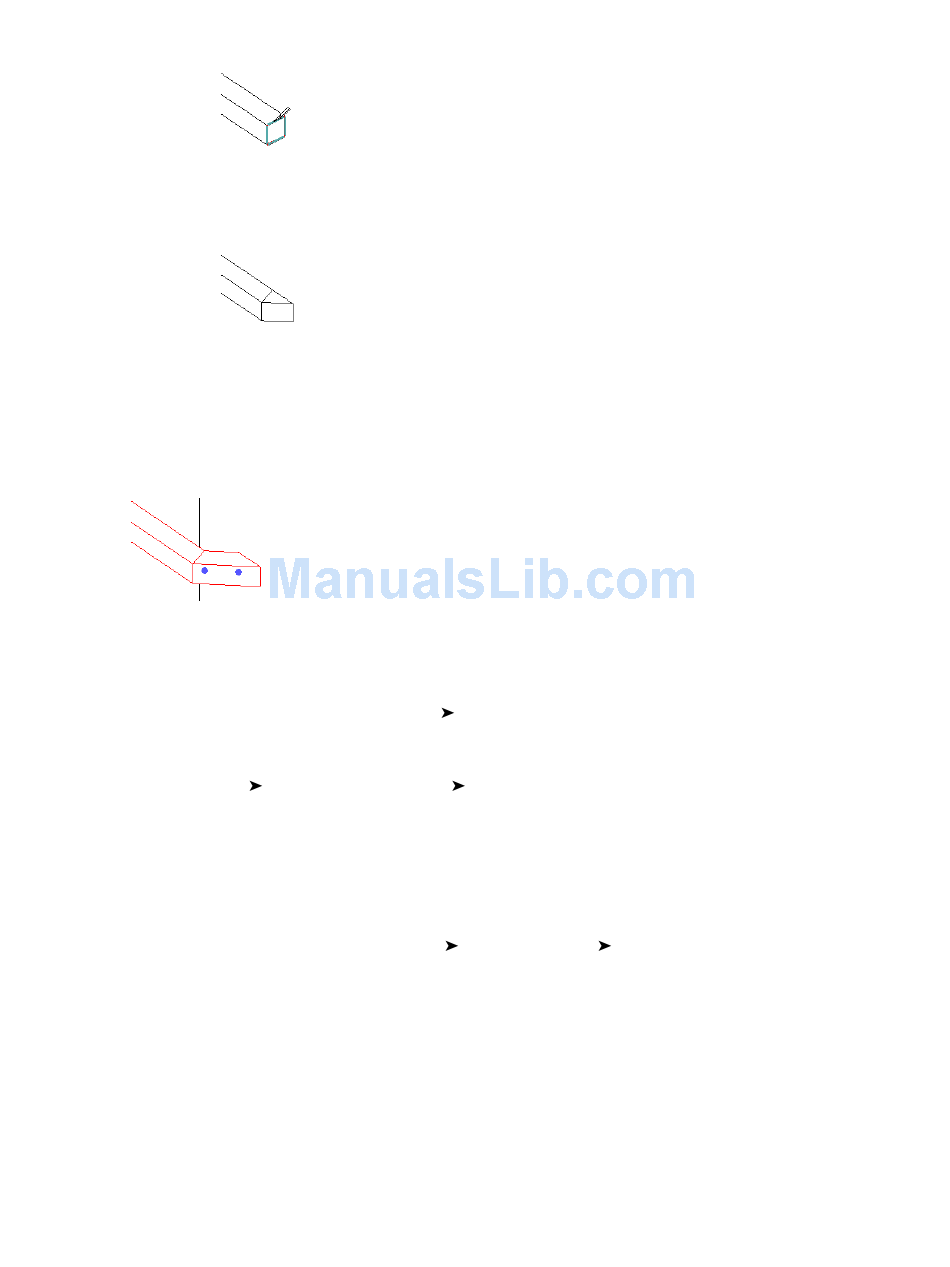

5 Click to apply the new return value.
In this example, the option Straight Cut becomes available. Select that option, and click the sweep end to
apply a straight cut to the sweep.
After you change the return, you can drag the end of the sweep or reveal to extend the return. Select the
wall sweep, and use the blue dot drag control.
Drag the right blue control

Changing the Wall Sweep Type

1 In the drawing area, select a wall sweep.
2 Click Modify Wall Sweeps tab
If the desired wall sweep type is not listed in the Type Selector, you can load additional profile families.
Click Insert tab

Adding or Removing Segments from a Wall Sweep

You can continue an existing sweep onto new walls, or remove segments from existing wall sweeps.
1 Open a 3D view and select the desired wall sweep.
2 Click Modify Wall Sweeps tab
3 Select the walls to continue adding to or removing from the wall sweep.

Resizing Unconnected Wall Sweeps

1 In a 3D or elevation view, select the wall sweep.
2 Drag the wall sweep end to resize it.
666 | Chapter 13 Architectural Design
Highlighted wall sweep end
Applied return value
Selector drop-down.
Load from Library panel
Element panel, and select the desired wall sweep from the Type
Load Family.
Wall Sweep panel Add/Remove Walls.
