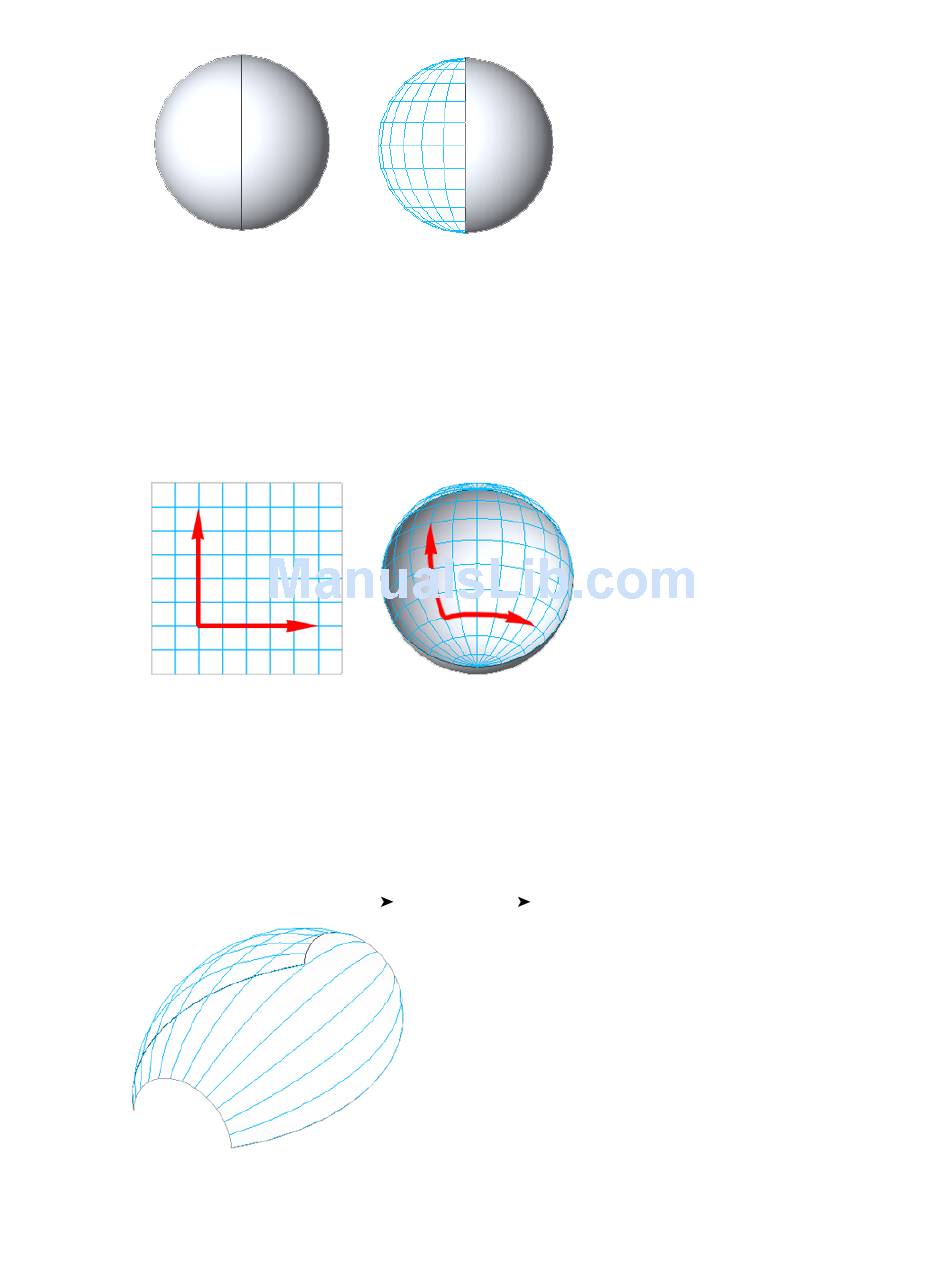

The UV grid acts as a guide in patterning the surface. Manipulating the divided surface also manipulates the
parametrically dependant patterns and components. Certain parameters of the divided surface can be edited
in the drawing area of the conceptual design environment.
Locations in 3D space are based on the XYZ coordinate system. This system can be applied globally to the
modeling space or to a work plane.
Since surfaces are not necessarily planar, the UVW coordinate system is used to plot location. This maps a
grid adjusting for the contours of a non-planar surface or form. UV grids, as used in the conceptual design
environment, are comparable to XY grids.
The default division of the surface is by number: 12x12 for imperial units and 10x10 for metric units.

Enabling and Disabling UV Grids

The UV grids are independent of one another and can be turned on and off as needed. By default, both U
and V grids are on when a surface is initially divided.
U grids
Click Modify Divided Surface tab
570 | Chapter 11 Conceptual Design Environment
UV Grids panel U Grid. Click again to enable.
