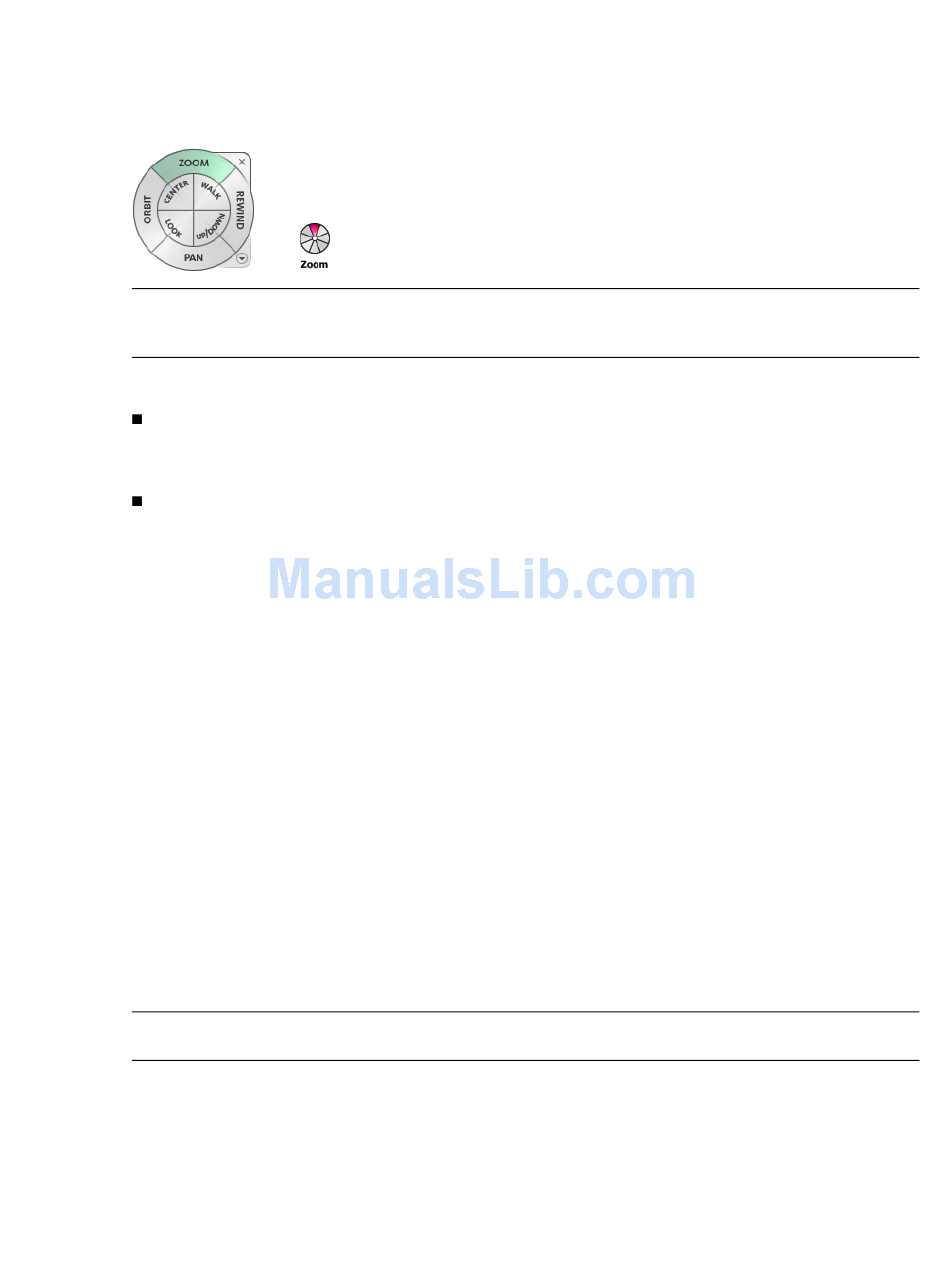

Full Navigation Wheels
The Full Navigation wheels (big and mini) combine the 3D navigation tools found on the View Object and
Tour Building wheels. You can view individual objects, and walk through and around a model. The big and
mini Full Navigation wheels are optimized for experienced 3D users.
NOTE When one of the Full Navigation wheels is displayed, you can press and hold the middle mouse button to
pan, scroll the wheel button to zoom in and out, and hold the SHIFT key while pressing and holding the middle
mouse button to orbit the model.
To switch to the big Full Navigation wheel
Right-click on the wheel and click Full Navigation Wheel.
To switch to the mini Full Navigation wheel
Right-click on the wheel and click Mini Full Navigation Wheel.

Navigation Tools

Each wheel is divided into different wedges. Each wedge contains a navigation tool that you can be uses to
reorient the current view of a model. Which navigation tools are available depends on which wheel is active.
Each wheel is divided into different wedges. Each wedge contains a navigation tool that you can be uses to
reorient the current view of a model. Which navigation tools are available depends on which wheel is active.
Center Tool
With the Center tool, you can define the center of the current view of a model. To define the center, you
drag the cursor over your model. A sphere is displayed in addition to the cursor. The sphere indicates that
the point below the cursor in the model will be the center of the current view when you release the mouse
button, the model is centered on the sphere.
Forward Tool
You use the Forward tool to change the magnification of the model by increasing or decreasing the distance
between the current point of view and the pivot point. The distance that you can move forward or backward
is limited by the position of the pivot point.
NOTE In orthographic views, the Forward tool is limited to the distance between the current position and the
pivot point. In perspective views, it is not limited, so you can move the cursor through the pivot point.
