Lofts
A loft is a form that blends 2 profiles located on separate work planes.
NOTE Profiles can be open or closed when making lofted geometry.

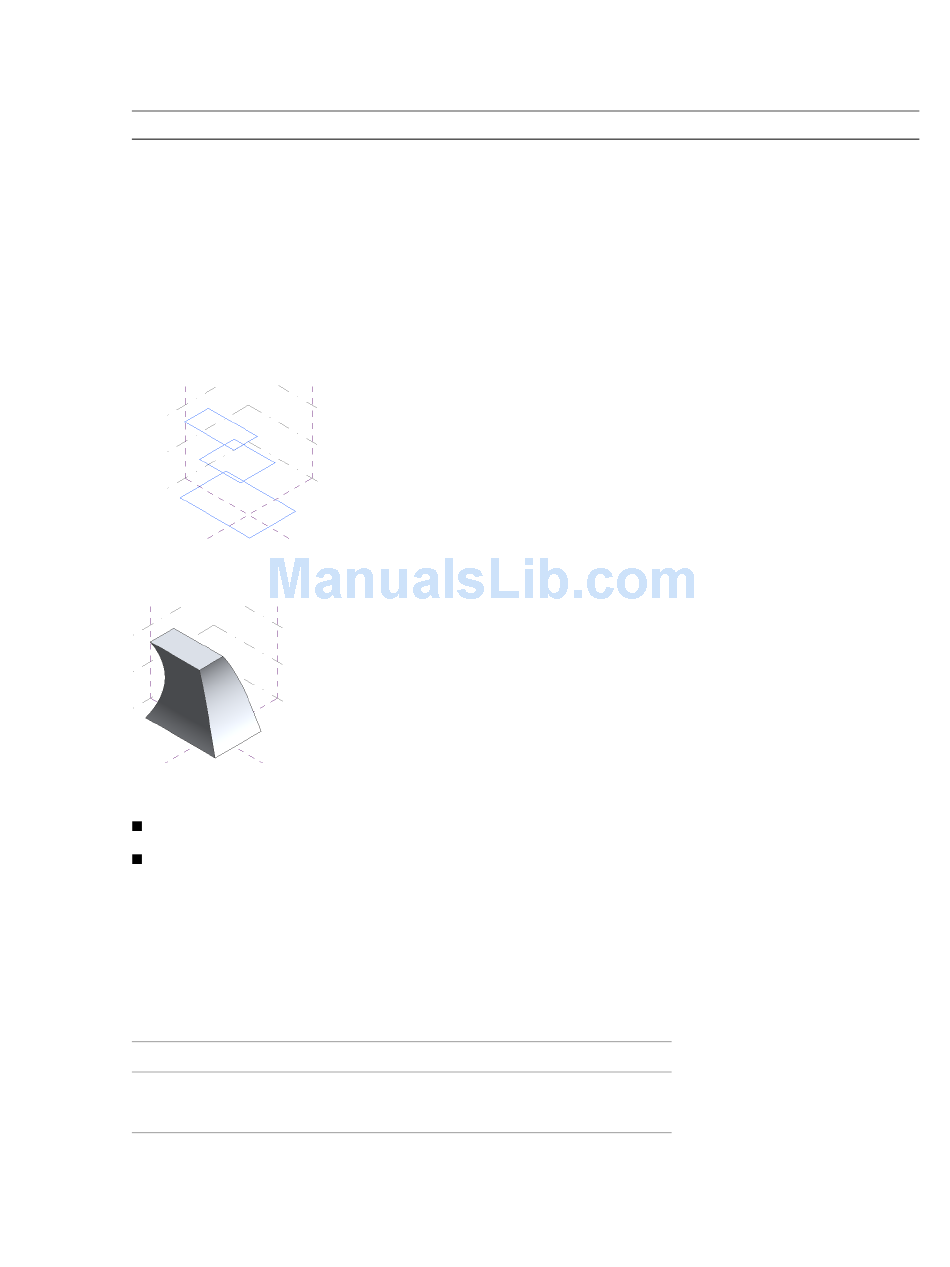

To create a solid loft
1 Draw a closed profile on a work plane.
2 Click a reference plane or a level to select a different work plane.
3 Draw a new closed profile.
4 Click a reference plan or a level, to select a different work plane.
5 Draw a closed profile on the third reference plane.
6 Select all 3 profiles.
7 Click Create Form. (See
Related topics
Creating Solid Forms
Creating Void Forms

Modifying Forms

Forms can be modified directly by using the 3D control arrows, and by adding and deleting edges and
profiles.
When a form is selected in the conceptual design environment, the following modification tools are available.
Panel
Selection
560 | Chapter 11 Conceptual Design Environment
Accessing Create Form Tool
on page 552
on page 553
Tool
Modify
on page 553.)
Description
Complete an action in the
drawing area.
