Area Schemes and Schedules

You can create schedules for area schemes. For more information about defining a schedule for an area
scheme, see

Creating an Area Scheme

1 Click Home tab
2 In the Area and Volume Computations dialog, click the Area Schemes tab.
3 Click New.
4 For Name, enter a name for the new area scheme.
5 For Description, enter a description of the new area scheme.
6 Click OK.

Deleting an Area Scheme

NOTE If you delete an area scheme, all area plans associated with that scheme are also deleted.
1 Click Home tab
2 In the Area and Volume Computations dialog, click the Area Schemes tab.
3 Select the area scheme.
4 Click Delete.
5 Click OK.

Area Plans

Area plans are views that show spatial relationships based on area schemes and levels in your model. You
can have multiple area plans for every area scheme and level. Each area plan can have distinct area boundaries,
tags, and color schemes.
Area plans are listed in the Area Plans node of the Project Browser. You can rename area plans. In the Project
Browser, the area plan name indicates the level associated with the plan.
Create area schemes before creating area plans. See

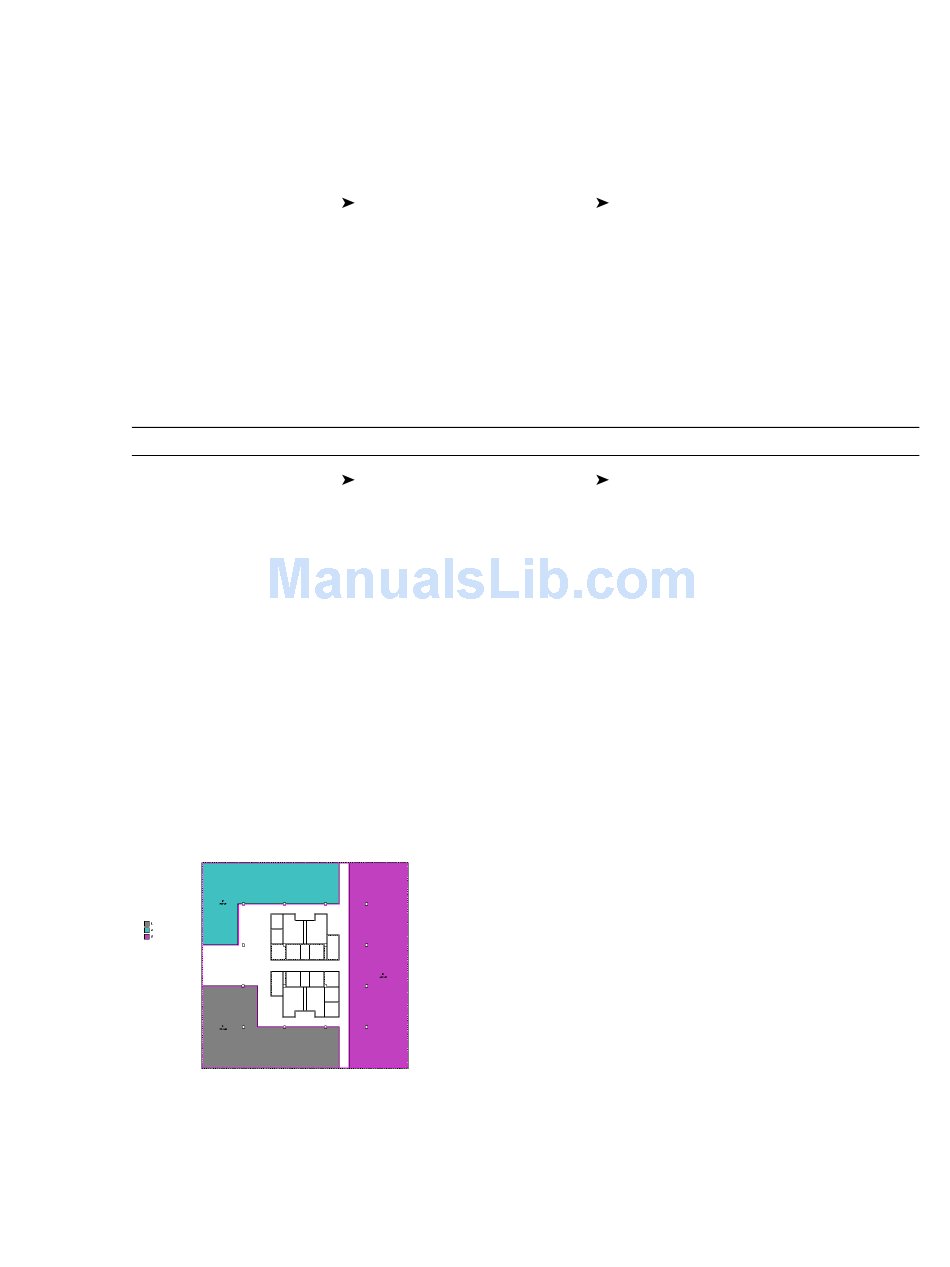

Area plan with area scheme applied
Creating a Schedule or Quantity
Room & Area panel drop-down
Room & Area panel drop-down
on page 173.
Area and Volume Computations.
Area and Volume Computations.
Creating an Area Scheme on page 1009.
