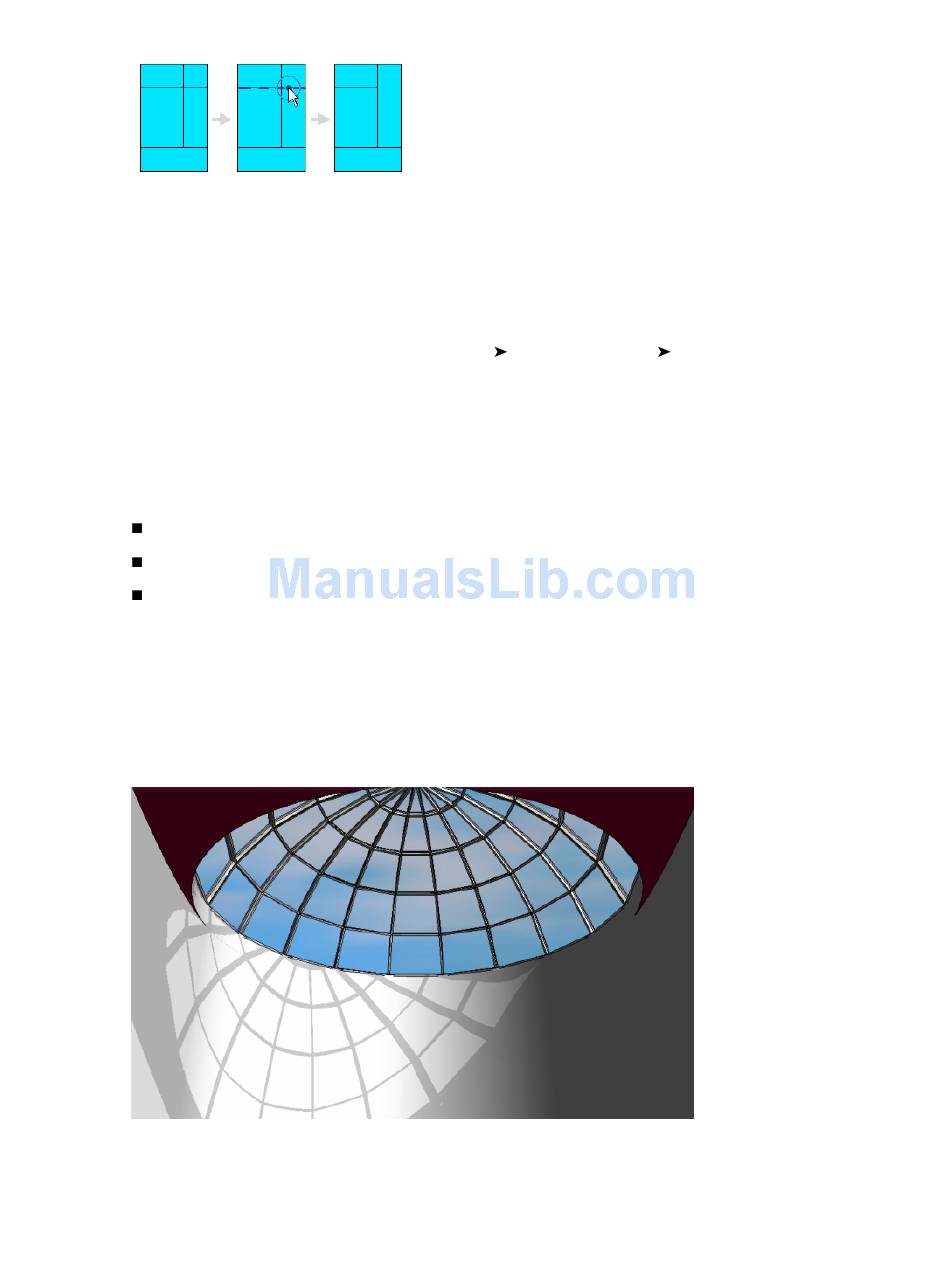

Unjoining Panels
To separate panels, you add curtain grid segments back.
1 Select a curtain grid.
2 Click Modify Curtain Wall Grids tab
3 Click the dashed segment to restore the curtain grid segment.
Merging Tips
You can make non-rectangular curtain wall panels with the system panel type only.
If you join panels of different types, the resulting panel is of the type you first selected.
Use hidden line view to clearly see which panels are joined. See
page 252.

Curtain Systems

A curtain system is a component that comprises panels, curtain grids, and mullions. It usually does not have
a rectangular shape. You can create a curtain system by selecting element faces. After you create a curtain
system, you can add curtain grids and mullions using the same technique as curtain walls.
You cannot create a wall or a roof as a curtain system.
The dashed lines indicate a segment that was removed previously. The joined panels revert back
to their unjoined state.
Curtain Grid panel Add/Remove Segments.
Hidden Line Model Graphics Style on
Curtain Systems | 785
