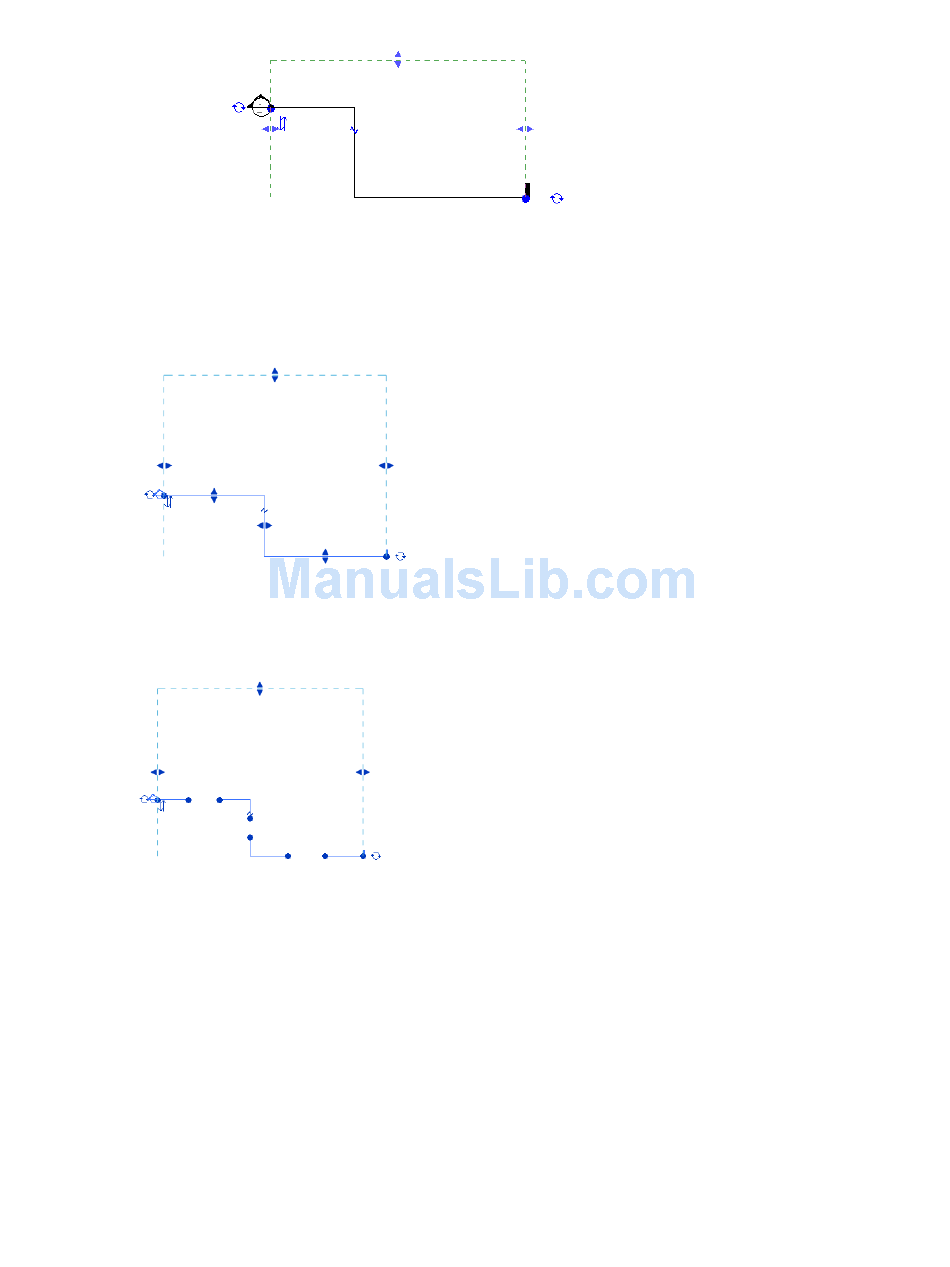

The new segmented section has several controls on it. Controls for resizing the crop region display as a
dashed green line. All segments share the same far clip plane.
There are controls for moving the segments of the section line.
There is also a break control that divides the section into smaller segments. The break control displays as a
Z on the section line. Click it to break up the section even further. When you do, the section has more
controls for resizing segments.

Merging Segmented Section Views

To change the segmented line into a continuous line, move segments toward one another so that they form
a continuous line and merge.

Reference Sections

Reference sections are sections that reference an existing view. They do not create a new view when you
add them to your project.
