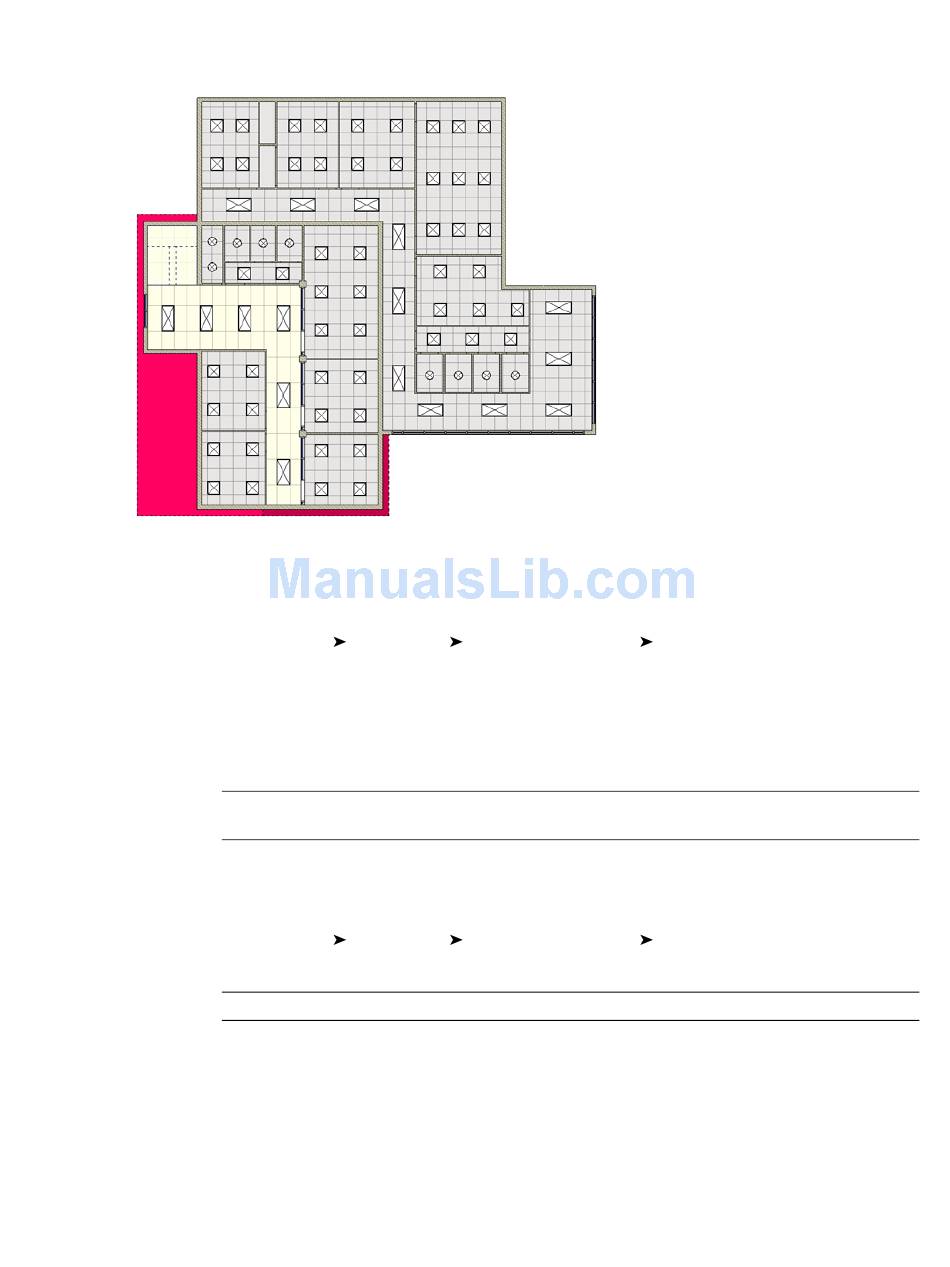

Reflected Ceiling Plan View
Most projects include at least one reflected ceiling plan (RCP) view.
Reflected ceiling plan views are also created automatically, as you add new levels to your project.

Creating a Plan View

1 Click View tab
2 From the New Plan dialog, select one or more levels for which you want to create a plan view.
3 If you want to create a plan view for a level that has an existing plan view, clear Do not duplicate
4 For Scale, select an appropriate view scale for the new view.
5 Click OK.

Creating a Reflected Ceiling Plan View

1 Click View tab
2 In the New RCP dialog, select one or more levels for which you want to create a view.
3 If you want to create a plan view for a level that has an existing plan view, clear Do not duplicate
4 For Scale, select an appropriate view scale for the new view.
5 Click OK.
126 | Chapter 5 Project Views
Create panel
existing views.
NOTE If you create duplicate plan views, the duplicate view displays in the Project Browser with the
following notation: Level 1(1), where the value in parentheses increases with the number of duplicates.
Create panel
NOTE Hold the Ctrl key as you select to choose multiple levels.
existing views.
Plan Views drop-down
Plan Views drop-down
Floor Plan.
Reflected Ceiling Plan.
