4 Place the cursor near a wall, and click to place the elevation symbol.
5 To set different interior elevation views, highlight the square shape of the elevation symbol,
6 Select the check boxes to indicate where you want to create elevation views.
7 Click away from the elevation symbol to hide the check boxes.
8 Highlight an arrowhead on the symbol to select it.
9 Click the arrowhead once to view the clip plane:
10 In the Project Browser, select the new elevation view.
Related topics

Displaying an Elevation View

Changing the Clip Plane in an Elevation View
Changing the Elevation Symbol
Framing Elevation Views
Displaying an Elevation View
There are several ways to display an elevation view.
Double-click the view name from the Project Browser.
Double-click the arrowhead on the elevation symbol.
Select the elevation symbol arrowhead, right-click, and select Go to Elevation View.
132 | Chapter 5 Project Views
NOTE As you move the cursor, you can press Tab to change the position of the arrowhead. The
arrowhead snaps to perpendicular walls.
and click.

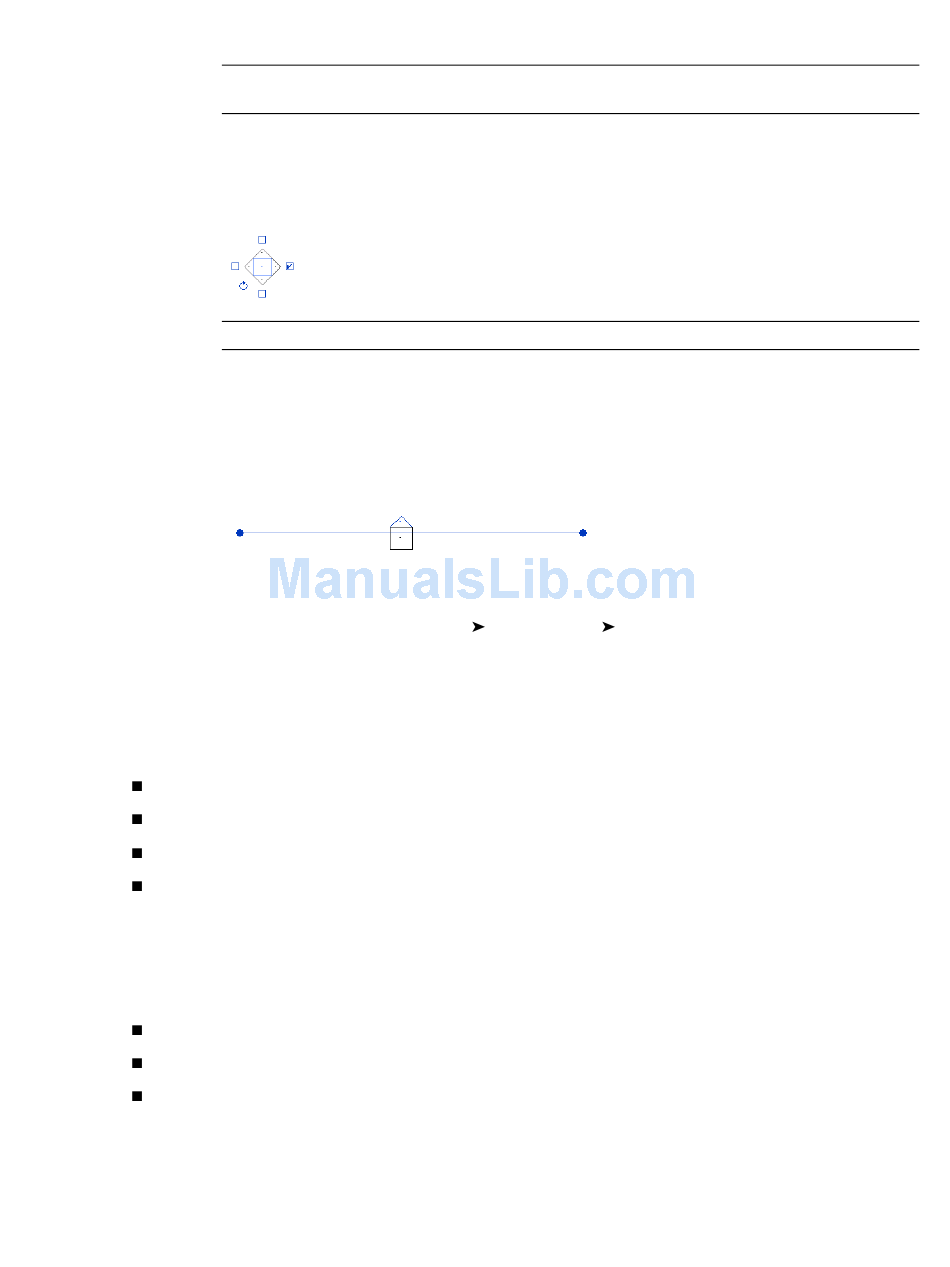

The elevation symbol displays with check box options for creating views, as the following image
shows.
TIP The rotation control is useful for aligning to angled elements in the plan.
Elevation symbol with clip plane
The end points of clip planes snap and join to walls. You can resize the width of the elevation
by dragging the blue controls. If the blue controls do not display in the view, select the clip
plane and click Modify Views tab
Properties dialog, select the Crop View parameter, and click OK.
The elevation view is designated by a letter and number, for example, Elevation: 1 - a.
on page 132
on page 133
on page 135
Element panel Element Properties. In the Instance
on page 133
