Functional Description
Wobbel generator
Acceleration time (oP.47)
Deceleration time(oP.48)

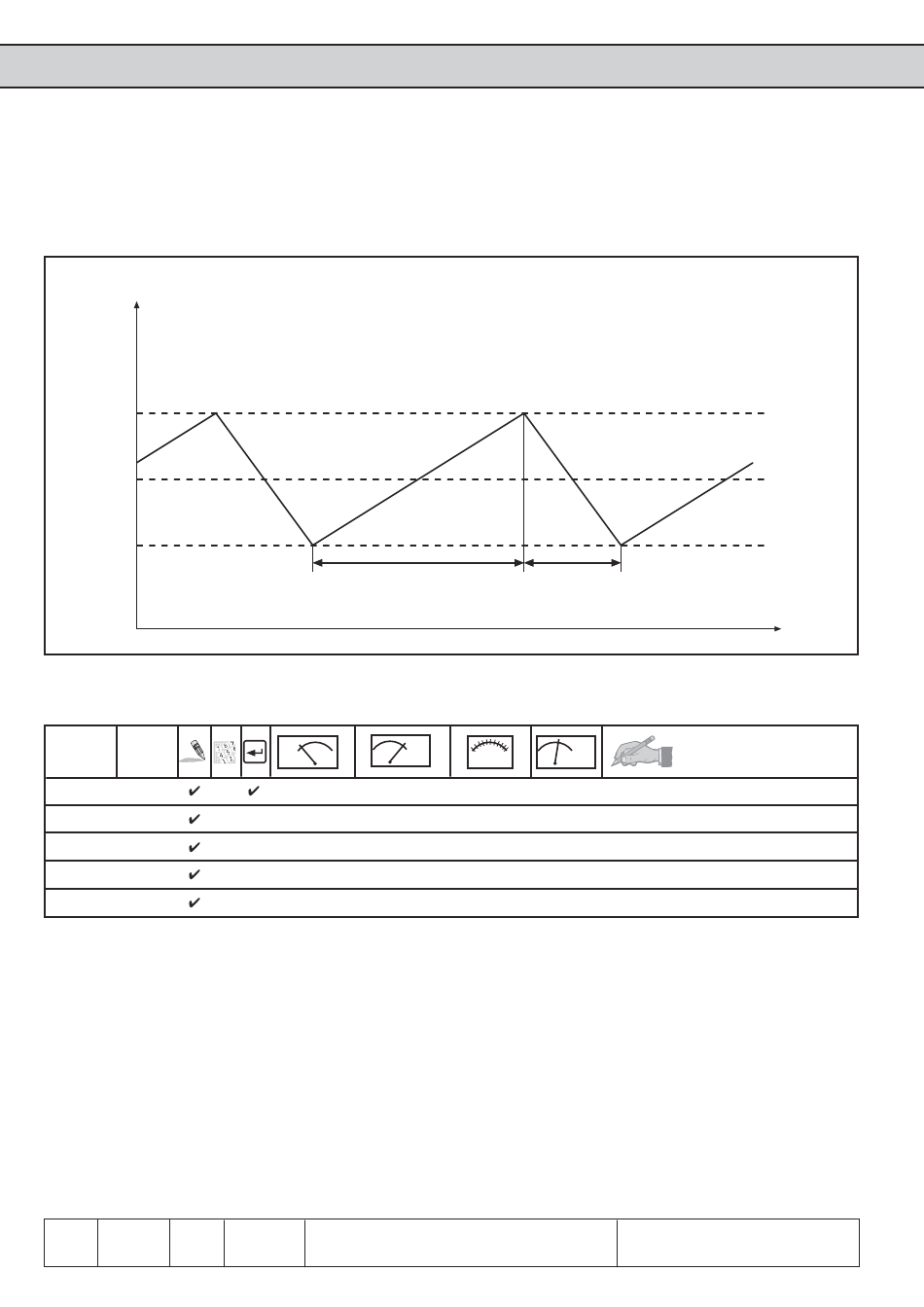

6.9.7.b Acceleration and deceleration times of the wobbel generator
f
f + [%]
set
f
set
f - [%]
set
Used Parameters
R/W
PROG.
Param. Adr.
oP.44 032Ch
oP.45 032Dh
oP.46 032Eh
oP.47 032Fh
oP.48 0330h
Chapter Section Page
6 9 28
With oP.47 the acceleration time and with oP.48 the deceleration is adjusted in each
case within the range of 0...20.00 s. Together the two parameters result in the period
duration of the wobbel period.
oP.47
ENTER
min
- 0 63
- - 0,00 % 100,00 %
- - 0,00 s 20,00 s
- - 0,00 s 20,00 s
- - 0,00 s 20,00 s
