Drive-Mode
ud. 9 = 4 or 5
4.4.6 Leaving the Drive-
Mode

4.4.7 Further Settings

© KEB Antriebstechnik, 2002
All Rights reserved
Stop
START START
FUNC.
ENTER
F/R SPEED
STOP STOP

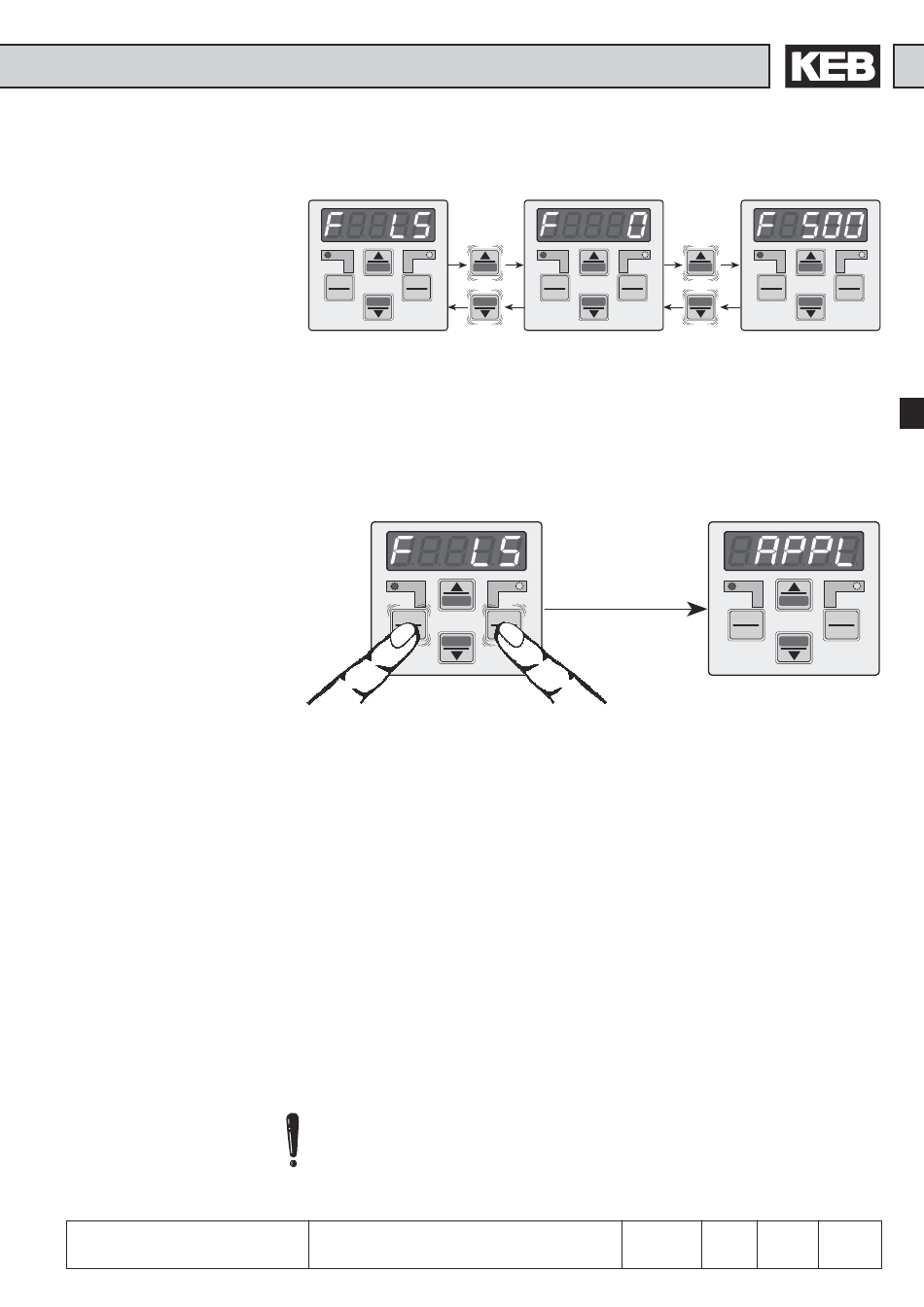

To leave the Drive-Mode, the keys ÑFUNCì and ÑENTERì must be pressed
simultaneously for approx. 3 seconds while being in status ÑStopì! The unit jumps
back into the mode from where the Drive-Mode was started.
Stop
START
ENTER
F/R
STOP
approx. 3 sec.
With the Drive-Mode operating mode (ud.9) the setpoint sources and the conditions at
starting/stopping can be specified. As setpoint source serves either the keyboard in
the Drive-Mode as described under 4.4.3 or the setpoint source selected under
parameter oP.0. Refer to 4.4.5 to learn about the different operating conditions at
starting / stopping.
The status at starting / stopping (Bit 2 and 3) are only accepted after a restart the
drive mode !
Bit 3 Bit 2 Bit 1 Bit 0 Funktion ud.9
x x x
x x x
x x 0
x x 1
0 0 x
0 1 x
1 0 x
1 1 x
To avoid undefined conditions, it must be ensured that the minimum speeds (oP.6,
oP.7) is set to 0 rpm at the values ud.9 bit 2, 3 = 1 or 2 .
Name: Basis
KEB COMBIVERT F5-M / S
Operation
Start
START
FUNC.
ENTER
F/R SPEED
STOP
Leaving
Drive-Mode
FUNC.
SPEED
0 Set value setting by keyboard
1 Set value setting by set value source oP.0
x set value is 0-limited (negativ values = 0)
x absolut set value settings
x LS => run
x 0 rpm => run
x LS => 0 rpm => run
x reserved
Date
17.05.04
Run
START START
FUNC.
ENTER
F/R SPEED
STOP STOP
START
ENTER FUNC.
F/R SPEED
STOP
