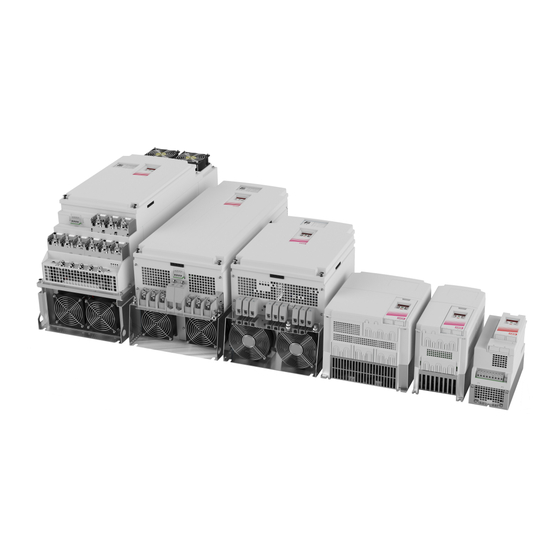

COMBIVERT F5
INSTRUCTIONS FOR USE | INSTALLATION ACTIVE-FRONT-END | 11...1005 KVA
Translation of the original manual
Document 20132138 EN 01

Advertisement

Table of Contents
loading

Related Manuals for KEB COMBIVERT F5

Summary of Contents for KEB COMBIVERT F5

  • Page 1 COMBIVERT F5 INSTRUCTIONS FOR USE | INSTALLATION ACTIVE-FRONT-END | 11...1005 KVA Translation of the original manual Document 20132138 EN 01...

  • Page 3: Preface

    PREFACE Preface The described hard- and software are developments of the KEB Automation KG. The enclosed documents correspond to conditions valid at printing. Misprint, mistakes and technical changes reserved. Signal words and symbols Certain operations can cause hazards during the installation, operation or thereafter.

  • Page 4: Laws And Guidelines

    Copyright The customer may use the instruction manual as well as further documents or parts from it for internal purposes. Copyrights are with KEB Automation KG and remain valid in its entirety. Other wordmarks or/and logos are trademarks (™) or registered trademarks (®) of their...

  • Page 5: Table Of Contents

    TAbLE OF CONTENTS Table of Contents Preface ..............................3 Signal words and symbols ......................3 More symbols ..........................3 Laws and guidelines ........................4 Warranty ............................4 Support ............................4 Copyright ............................4 Table of Contents ........................... 5 List of Figures ............................8 List of Tables ............................9 Glossary ..............................
  • Page 6 5.1 EMC-compatible control cabinet installation ................34 5.2 Installation instructions ........................ 34 6 Connection of the COMbIVERT F5-AFE ....35 6.1 Description of the input terminals at the drive converter ............35 6.2 Terminal blocks of the units ......................36 6.3 External fan power supply for housing size P and U ..............
  • Page 7 9 Dimensioning ............... 56 9.1 Dimensioning Instructions ......................56 9.2 Technical data of KEb COMbIVERT drive converters ............... 57 9.3 Technical data of KEb COMbIVERT F5-AFE devices ..............59 10 Maintenance ............... 60 10.1 Overload characteristic ....................... 60 10.2 Maintenance interval ........................60 10.3 Storage ............................

  • Page 8: List Of Figures

    LIST OF FIGURES List of Figures Figure 1: External fan power supply for housing size P and U ............38 Figure 2: Circuit example for the power unit with AFE/LCL filter ............. 42 Figure 3: Circuit example for the power unit with AFE/LCL filter and common mode filter ..... 43 Figure 4: Circuit example for the master-slave operation with AFE/LCL filter and common mode filter ........................44 Figure 5: Circuit example for the control circuit ................45 Figure 6: Flow chart switch-on procedure ..................

  • Page 9: List Of Tables

    Description of the RS232/485 interface X6C ..............54 Table 17: Technical data of KEB COMBIVERT drive converters ............. 58 Table 18: Technical data of KEB COMBIVERT F5-AFE devices ............. 59 Table 19: Maintenance interval ......................60 Table 20: Heat sink and operating pressure ..................62 Table 21: Electro-chemical voltage series / standard potentials against hydrogen ......

  • Page 10: Glossary

    Overcurrent Fieldbus system Overheat COMBIVERT KEB drive converters Overload COMBIVIS KEB start-up and parameterizing software OSSD Output signal swithching device; - an output signal that is checked in regu- DC current or voltage lar intervals on its shutdown. (safety Demineralized water, also referred to...
  • Page 11 GLOSSARy The security integrity level is a measure for quantifying the risk reduction. Term used in the safety technology (EN 61508 -1...7). Safety function „Safe stop 1“ in ac- cordance with IEC 61800-5-2 Synchronous serial interface for encoder Safety function „Safe Torque Off“ in accordance with IEC 61800-5-2 Incremental signal with an output voltage up to 5 V...

  • Page 12: Standards For Drive Converters / Control Cabinets

    STANDARDS FOR DRIVE CONVERTERS / CONTROL CAbINETS Standards for drive converters / control cabinets Product standards that apply directly to the drive converter EN 61800-2 Adjustable speed electrical power drive systems - Part 2: General requirements - Rating specifications for low voltage adjustable frequency a.c. power drive systems (VDE 0160-102, IEC 61800-2) EN 61800-3 Speed-adjustable electrical drives. Part 3: EMC requirements and specific test methods (VDE 0160-103, IEC 61800-3)

  • Page 13: Standards That Are Used In The Environment Of The Drive Converter

    STANDARDS FOR DRIVE CONVERTERS / CONTROL CAbINETS EN 61000-4-4 Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques - Electrical fast transient/burst immunity test (IEC 61000-4-4); German version EN 61000-4-4 EN 61000-4-5 Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test (IEC 61000-4-5);...

  • Page 14: Basic Safety Instructions

    GRUNDLEGENDE SICHERHEITSHINWEISE 1 Grundlegende Sicherheitshinweise Der COMBIVERT ist nach dem Stand der Technik und anerkannten sicherheitstechni- schen Regeln entwickelt und gebaut. Dennoch können bei der Verwendung funktions- bedingt Gefahren für Leib und Leben des Benutzers oder Dritter bzw. Schäden an der Maschine und anderen Sachwerten entstehen.
  • Page 15 GRUNDLEGENDE SICHERHEITSHINWEISE Antriebsstromrichter enthalten elektrostatisch gefährdete bauelemente. ► Berührung vermeiden. ► ESD-Schutzkleidung tragen. Lagern Sie Antriebsstromrichter nicht • in der Umgebung von aggressiven und/oder leitfähigen Flüssigkeiten oder Gasen. • mit direkter Sonneneinstrahlung. • außerhalb der angegebenen Umweltbedingungen. 1.3 Einbau und Aufstellung GEFAHR Nicht in explosionsgefährdeter Umgebung betreiben ! ►...

  • Page 16: Electrical Connection

    Komponenten durch Ausgleichströme zerstört werden. • Ausschließlich die von KEB angegebenen AFE-/LCL-Filter verwenden. • Bei Anschluss von mehreren Antriebsstromrichtern an das COMBIVERT F5-AFE sind die maximal zulässigen Zwischenkreiskapazitäten oder die Ladeströme aller angeschlossenen Antriebsstromrichter, sowie deren Verschaltung zu beachten.

  • Page 17: Installation

    Auf Grund der Funkentstörkondensatoren wird sich der Prüfgenerator sofort mit Stromfehler abschalten. Nach EN 60204-1 ist es zulässig, bereits getestete Komponenten abzuklem- men. Antriebsstromrichter der KEB Automation KG werden gemäß Produkt- norm zu 100% spannungsgeprüft ab Werk geliefert. 1.4.3 Isolationsmessung Eine Isolationsmessung (gemäß EN 60204-1 Kapitel 18.3) mit DC 500 V ist zulässig,...

  • Page 18: Start-Up And Operation

    • Nur für das Gerät zugelassenes Zubehör verwenden. • Anschlusskontakte, Stromschienen oder Kabelenden nie berühren. Sofern ein Antriebsstromrichter mit Elektrolytkondensato- ren im Gleichspannungszwischenkreis (siehe technische Daten) länger als ein Jahr nicht in Betrieb war, beachten Sie folgende Hinweise. www.keb.de/fileadmin/media/Manuals/knowledge/04_techinfo/00_gene- ral/ti_format_capacitors_0400_0001_deu.pdf...

  • Page 19: Maintenance

    Bei Applikationen, die zyklisches Aus- und Einschalten des Antriebsstromrichters erfor- dern, muss nach dem letzten Einschalten eine Zeit von mindestens 5 min vergangen sein. Werden kürzere Taktzeiten benötigt, setzen Sie sich bitte mit der KEB Automation KG in Verbindung. Kurzschlussfestigkeit Die Antriebsstromrichter sind bedingt kurzschlussfest.

  • Page 20: Disposal

    Antriebsstromrichter mit Sicherheitsfunktion sind auf eine Nutzungsdauer von 20 Jahren begrenzt. Danach sind die Geräte zu ersetzen. Antriebsstromrichter der KEB Automation KG sind professionelle, elektronische Gerä- te ausschließlich für die gewerbliche Weiterverarbeitung (sog. B2B-Geräte). Die Kenn- zeichnung erfolgt daher nicht mit dem Symbol der durchgestrichenen Mülltonnen, son- dern durch die Wortmarke und das Herstellungsdatum.

  • Page 21: Product Description

    PRODUCT DESCRIPTION 2 Product Description The COMBIVERT F5-AFE is based on the hardware of COMBIVERT F5 drive convert- ers, which are programmed with a special AFE software. The main application areas are industrial applications, single-axis applications, test systems and special projects.

  • Page 22: Specified Application

    Active Front End is done in cooperation with KEB. The used semiconductors and components of KEB are developed and dimensioned for the use in industrial products. If the KEB COMBIVERT F5 is used in machines, which work under exceptional conditions or if essential functions, life-supporting measures or an extraordinary safety step must be fulfilled, the necessary reliability and security must be ensured by the machine builder.

  • Page 23: Part Code

    PRODUCT DESCRIPTION 2.3 Part code xx xx x x x - x x x x Cooling A Air cooling D External fan power supply (P housing) H Water-cooling system Design system 1 Standard F5 „Plus“ E Stainless steel Serial number for special version Special version Y Special version Housing type E, G, H, R, U, P...

  • Page 24: Technical Data

    3 Technical Data 3.1 Operating conditions 3.1.1 Climatic ambient conditions Storage Standard Class Notes Surrounding temperature EN 60721-3-1 -25…55 °C Relative humidity 5…95 % (without condensation) EN 60721-3-1 Storage height – – Max. 3000 m above sea level Transport Standard Class Notes Surrounding temperature...

  • Page 25: Mechanical Ambient Conditions

    3.1.2 Mechanical ambient conditions Storage Standard Class Notes Vibration amplitude 0.3 mm (2…9 Hz) Vibration limits EN 60721-3-1 Acceleration amplitude 1 m/s² (9…200 Hz) Shock limit values EN 60721-3-1 40 m/s²; 22 ms Transport Standard Class Notes Vibration amplitude 3.5 mm (2…9 Hz) Vibration limits EN 60721-3-2 Acceleration amplitude 10 m/s²...

  • Page 26: Electrical Operating Conditions

    3.1.4 Electrical operating conditions 3.1.4.1 Equipment classification Requirement Standard Class Notes – EN 61800-5-1 Overvoltage category EN 60664-1 – Non-conductive pollution, occasional conden- Pollution degree EN 60664-1 sation when PDS is out of service Table 5: Equipment classification 3.1.4.2 Electromagnetic compatibility The indicated values are only valid for units with external filter.

  • Page 27: Unit Data

    UNIT DATA 4 Unit data Information on the dimensioning are contained in chapter „Dimensioning Instructions“. Unit size Housing size Cooling mode (L=air; W=water) Input data Phases Permitted mains forms TN system Input rated voltage Input voltage range 340…480 ± 0% Mains frequency 50 / 60 ±2 Input rated power...
  • Page 28 UNIT DATA Unit size Housing size Cooling mode (L=air; W=water) Number of modules for master/slave – – – – – – Input data Phases Permitted mains forms TN system Input rated voltage Input voltage range 340…480 ± 0% Mains frequency 50 / 60 ±2 Input rated power Input rated current...
  • Page 29 UNIT DATA Unit size Housing size Cooling mode (L=air; W=water) Number of modules for master/slave Input data Phases Permitted mains forms TN system Input rated voltage Input voltage range 340…480 ± 0% Mains frequency 50 / 60 ±2 Input rated power 1005 Input rated current 2x285...

  • Page 30: Accessories

    UNIT DATA 4.1 Accessories 4.1.1 AFE, LCL and EMC filters The line-side AFE or LCL filters are required for the characteristic of sinusoidal currents. They filter the switching frequency of the drive converter. The basic assembly consists of two inductors and capacitors (LCL filter). An EMC filter is additionally integrated at the AFE filters. AFE/LCL filter EMC filter Size Housing Cooling Material number Material number 14H6J4E-1000 16.5 integrated – 19H6J4E-1000 integrated – 19H6J4F-1000 integrated – 19H6J4F-1000 integrated – 21H6J4F-1001 integrated –...

  • Page 31: Common Mode Filter

    14Z1B04-1000 16.5 0LZ1I05-1001 18Z1B04-1000 8-16 0PZ1I05-1001 22Z1B04-1000 0SZ1I05-1001 24Z1B04-1000 0XZ1I05-1001 27Z1B04-1000 4-16 0YZ1I05-1001 29Z1B04-1000 Table 10: Sinus EMC filters and mains chokes Further information can be found under the following link: Installation sinus EMC filter. https://www.keb.de/fileadmin/media/Manuals/dr/sinus-emv-fil- ter_20146892_eng.pdf Programming manual COMBIVERT F5-AFE. https://www.keb.de/fileadmin/media/Manuals/f5afe/prog/F5_AFE_pro- gramm_20104270_gbr.pdf...

  • Page 32: Dc Fuses

    UNIT DATA 4.1.3 DC fuses Assembly Fuse body in Size Fuse (holders and fuses) 14U42EG-3W00 2 x 0090249-5419 Ø27 x 60.3 16U42GH-3W00 2 x 0090249-5459 Ø27 x 60.3 18U420H-3W00 2 x 0090249-5519 Ø27 x 60.3 19U42HR-3W00 2 x 0090249-5529 Ø27 x 60.3 20U420R-3W00 4 x 0090249-5479 Ø27 x 60.3...

  • Page 33: Additional Precharging Resistor At Master-Slave Operation

    0090013-0048 5.8 Ω 165 W 1100 V 4.2 Dimensions and weights The COMBIVERT F5-AFE are identical with the housing of the COMBIVERT F5 drive converter. Dimensions, weights and terminal descriptions can be found in the following manuals: Size Housing Instruction manual...

  • Page 34: Installation

    5.1 EMC-compatible control cabinet installation Mains fuse Precharging fuse Pre-charging contactor Main contactor (before LCL filter) EMC filter AFE/LCL filter (if necessary integrat- ed in 4) COMBIVERT F5-AFE If necessary external load-shunt External DC fuses 150 mm Drive converter Motor line Power unit equipotential bonding 150 mm with the housing earth...

  • Page 35: Connection Of The Combivert F5-Afe

    CONNECTION OF THE COMbIVERT F5-AFE 6 Connection of the COMbIVERT F5-AFE 6.1 Description of the input terminals at the drive converter ATTENTION Starting current limiting When connecting drive converters to a DC bus pay attention to the inter- nal wiring of the DC voltage inputs! Drive converters that directly output the DC link bus to the DC terminals must be integrated into the DC bus by way that the supply unit(s) limit the starting current.

  • Page 36: Terminal Blocks Of The Units

    CONNECTION OF THE COMbIVERT F5-AFE 6.2 Terminal blocks of the units The + contact of the temperature evaluation must be connected to terminal T1 to terminal strip X1A! For more information see chapter „Temperature detection T1, T2“. Housing Size E...
  • Page 37 CONNECTION OF THE COMbIVERT F5-AFE Housing size P K1K2 T1T2 max.42,5 mm Terminal Name Function Terminal strip L1, L2, L3 3-phase mains connection U, V, W AFE mains connection +PA, PB Connection for braking resistor +PA, – Connection for DC interconnection...

  • Page 38: External Fan Power Supply For Housing Size P And U

    CONNECTION OF THE COMbIVERT F5-AFE 6.3 External fan power supply for housing size P and U Housing size U Housing size P 5 4 3 2 1 5 4 3 2 1 13 12 11 10 13 12 11 10...

  • Page 39: Temperature Detection T1, T2

    CONNECTION OF THE COMbIVERT F5-AFE 6.4 Temperature detection T1, T2 ATTENTION • Do not lay KTY or PTC cable of the motor or AFE/LCL filter (also shielded) together with the control cable ! • KTY or PTC cable only permissible with double shielding within the motor cable ! 6.4.1 Use of the temperature input in KTy mode...

  • Page 40: Input And Precharging Circuits

    „Dimensioning Instructions“ ATTENTION Leakage capacitors against earth in the DC link Drive converters with leakage capacitors in the DC link against earth are not allowed for F5-AFE operation and can be destroyed. Only re- leased units by KEB may be connected.

  • Page 41: Circuit Examples

    CONNECTION OF THE COMbIVERT F5-AFE 6.6 Circuit examples 6.6.1 Instructions to the following circuit example In the following circuit example the drive converter is connected via the F5-AFE with a LCL filter to the supply system. The temperature monitoring of the LCL filter is done by the F5-AFE. The inputs and outputs are pre-programmed for the following circuit example.

  • Page 42: Circuit Example For The Power Unit With Afe/Lcl Filter

    CONNECTION OF THE COMbIVERT F5-AFE 6.6.2 Circuit example for the power unit with AFE/LCL filter °C °C T1 T2 KTY+ KTY- F-T1 F-T2 T1 T2 W PE L2 L3 PE Legend Q1 Mains circuit breaker S5 / S6 Temperature detection NC contact and KTY84 sensor...

  • Page 43: Circuit Example For The Power Unit With Afe/Lcl Filter And Common Mode Filter

    CONNECTION OF THE COMbIVERT F5-AFE 6.6.3 Circuit example for the power unit with AFE/LCL filter and common mode filter °C °C T1 T2 KTY+ KTY- F-T1 F-T2 T1 T2 W PE Legend Q1 Mains circuit breaker Common mode filter F1 Mains fuses...

  • Page 44: Circuit Example For The Master-Slave Operation With Afe/Lcl Filter And Common Mode Filter

    CONNECTION OF THE COMbIVERT F5-AFE 6.6.4 Circuit example for the master-slave operation with AFE/LCL filter and common mode filter °C °C T1 T2 KTY+ KTY- T1 T2 KTY+ KTY- Master Slave W PE T1 T2 Legend Mains circuit breaker Motor...

  • Page 45: Circuit Example For The Control Circuit

    CONNECTION OF THE COMbIVERT F5-AFE 6.6.5 Circuit example for the control circuit Uout 24Vdc Legend Coupling relay (control on/off) Second setpoint (customer) Pre-charging contactor Error reset K3 / K4 Main contactor External release for drive converter Coupling relay (max. 50 mA) for main...

  • Page 46: Functional Description

    CONNECTION OF THE COMbIVERT F5-AFE 6.6.6 Functional description The pre-charging contactor (K2) is switched by applying a 24 V DC voltage to the cou- pling relay (K1). If the DC link voltage reaches an adjustable value (480 Vdc at factory setting LE.04) output O1 is set and the coupling relay switches (K5).

  • Page 47: Connection Of The Control

    CONNECTION OF THE CONTROL 7 Connection of the Control 7.1 Control board for F5 AFE units 7.1.1 Assignment of the terminal strip X2A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 PIN Function Name...

  • Page 48: Connection Of The Control

    CONNECTION OF THE CONTROL PIN Function Name Default assignment Description Relay 1 / no contact Programmable relay output 1 (termi- Relay 1 / NC contact Error messages (error) nal X2A.24...26); Relay 1 / switching Programmable relay output 2 (termi- contact nal X2A.27...29) Relay 2 / no contact Specification, control and program-...

  • Page 49: Analog Inputs

    CONNECTION OF THE CONTROL 7.1.4 Analog inputs Connect not connected setpoint inputs to the analog ground to avoid setpoint changes ! Analog setpoint setting external Analog setpoint setting internal Ri = 55 kW 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 R = 3...10 kW 0...±10 VDC...

  • Page 50: Relay Outputs

    CONNECTION OF THE CONTROL 7.1.7 Relay outputs In case of inductive load on the relay outputs a protective wiring must be provided (e.g. free-wheeling diode)! 24 25 26 27 28 29 max. 30 VDC / 1 A Figure 12: Relay outputs 7.1.8 Analog outputs X2A 1 2 3 4 5 6 7 8 9 Uout: 0...±10VDC...

  • Page 51: Operation Of The Control

    8 Operation of the Control 8.1 Operation without operator A special HSP5 cable (Part No. 00F50C0-0010) is available for the operation of the KEB COMBIVERT without operator. The cable is connected between HSP5 interface X4A and serial RS232 PC interface (COM1 or COM2). Operation occurs via the program COMBIVIS 5.

  • Page 52: Keyboard Operation

    OPERATION OF THE CONTROL 8.2.1 Keyboard operation 8.2.1.1 Parameter numbers and / values When switching on KEB COMBIVERT F5 the value of customer parameter CP.1 is dis- played. The function key (FUNC) changes between the parameter FUNC. value and parameter number.

  • Page 53: Interface Operator

    0010). Access to the drive converter parameters in the application mode is possible via the PC software KEB COMBIVIS 5. The KEB-USB converter or the Port-Expander is required for COMBIVIS 6. The operator parameters can be read out and adjusted or parameterized by download.

  • Page 54: Description Of The Rs232/485 Interface X6C

    OPERATION OF THE CONTROL Required accessories: Adapter RJ45/DSub-9 Converter HSP5/RS232 00F50C0-0020 00F50C0-0010 C0F50C0-0020 8.3.2 Description of the RS232/485 interface X6C RS485 Signal Meaning reserved 5 4 3 2 1 transmission signal RS232 receive signal RS232 A‘ RxD-A receive signal A RS485 9 8 7 6 B‘...

  • Page 55: Wiring Rs485 Full Duplex

    Figure 19: Wiring RS485 half duplex 8.3.5 Remote control A special HSP5 operator is available for remote control of the KEB COMBIVERT F5. Hereby the operator is mounted separate from the drive converter e.g. into the control cabinet door. Operator...

  • Page 56: Dimensioning

    DIMENSIONING 9 Dimensioning 9.1 Dimensioning Instructions The dimensioning of the KEB COMBIVERT F5 AFE occurs to the maximum permissible input rated current. The power specifications refer to 400 Vac rated input voltage. The DC current is dependent on the adjusted DC voltage and is not measured sepa- rately. Precharging Depending on the mains input circuit of the AFE unit either the „max. external charging current“...

  • Page 57: Technical Data Of Keb Combivert Drive Converters

    DIMENSIONING 9.2 Technical data of KEb COMbIVERT drive converters COMBIVERT F5 drive converter precharging by AFE at an ambient temperature Ta = 45°C and UNmax = 440Vac. Corresponding higher charging currents are expected at higher mains voltages. In this case please contact KEB! Load-shunt Max.

  • Page 58: Table 17: Technical Data Of Keb Combivert Drive Converters

    P (M+S) 1000 39,600 – – P (M+S+S) 1150 59,400 – – Legend Rated power Rated current real capacity Table 17: Technical data of KEB COMBIVERT drive converters ATTENTION A restart for AFE with NTC is allowed only after 5 minutes.

  • Page 59: Technical Data Of Keb Combivert F5-Afe Devices

    DIMENSIONING 9.3 Technical data of KEb COMbIVERT F5-AFE devices Max. precharging AFE at an ambient temperature Ta = 45°C and Unmax = 440Vac / 480Vac. Corresponding higher charging currents are expected at higher mains voltages. In this case please contact KEB! Max.

  • Page 60: Maintenance

    Monthly Examine and clean extracted air filter and cooling air filter of the control cabinet. Examine function of the fans of the KEB COMBIVERT. The fans must be replaced in case of audible vibrations or squeak. Check the connecting ducts for corrosion and change it if necessary for units with water Annual cooling.

  • Page 61: Storage

    Due to the leakage current the oxide layer is unrenewed. If the capacitor starts running with rated voltage there is a high leakage current which can destroy the capacitor. In order to avoid defectives, the KEB COMBIVERT must be started up depending on the storage period in accordance with the following specification: Storage period < 1 year •...

  • Page 62: Cooling System

    DC link circuit capacitors and power modules (IGBT). Also the tem- perature dependent switching losses are positively effected. The use of liquid-cooled KEB COMBIVERT drive converters is offered in the drive technology, because there are process-caused coolants available with some applications.

  • Page 63: Requirements On The Coolant

    COOLING SySTEM Electro-chemical voltage series / standard potentials against hydrogen Material generated Ion Standard potential Material generated Ion Standard potential Lithium -3.04 V Cobald -0.28 V Potassium -2.93 V Nickel -0.25 V Calcium -2.87 V -0.14 V Sodium -2.71 V Lead -0.13 V Magnesium...

  • Page 64: Coolant Temperature

    COOLING SySTEM Special requirements for open and half-open cooling systems: Impurities Mechanical impurities in half-open cooling systems can be counteracted when appropriate water filters are used. Salt concentration The salt content can increase through evaporation at half- open systems. Thus the water is more corrosive. Adding of fresh water and removing of process water works against.

  • Page 65: Connection To The Cooling System

    • Pay attention to flux direction and check tightness ! • The cooling flow must always be started before starting the KEB COMBIVERT. The connection to the cooling system can occur as closed or open cooling circuit. The connection to a closed cycle cooling circuit is recommended, because the danger of contamination of coolant is very small. Preferably also a monitoring of the pH value of the coolant should be installed.

  • Page 66: Fall Of Pressure Depending On The Rate Of Flow

    COOLING SySTEM 11.1.5.1 Fall of pressure depending on the rate of flow The pump capacity required for the COMBIVERT F5 is derived from the following spec- ifications, which are represented in the diagram Connection scheme for a cooling circuit (series connection). l/min Legend Recommended working range 10-30 in l/min ① Single unit ② Series connection of two modules (Master/Slave) ③...

  • Page 67: Connection Scheme For A Cooling Circuit (Series Connection)

    COOLING SySTEM 11.1.5.2 Connection scheme for a cooling circuit (series connection) Coolant connection of a Master/Slave-System F5/F6 F5/F6 Master Slave Coolant outlet Coolant inlet Coolant connection of a Master/Slave/Slave-System F5/F6 F5/F6 F5/F6 Slave 1 Master Slave 2 Coolant outlet Coolant inlet Figure 22: Coolant connection This connection scheme is only an installation proposal and does not replace...

  • Page 68: Volume Flow In Dependence Of The Heat Power Dissipation And Temperature Difference

    COOLING SySTEM ATTENTION The maximum temperature difference between pre-run and return flow is specified in the technical data and should not be exceeded. If the vol- ume flow (above 30 l / min per module) is selected too large, increases the risk of erosion in the liquid cooler. 11.1.5.3 Volume flow in dependence of the heat power dissipation and temperature difference ΔT in K Pv in kW Legend ② Master / Slave / Slave 9-12 ΔT in K 15 l/min ③ Master / Slave 6-10 ΔT in K 20 l/min ④ Master 3-6 ΔT in K 25 l/min ① ⑤ 10 l/min 30 l/min Figure 23: Volume flow in dependence of the heat power dissipation...

  • Page 69: Connection Scheme For A Cooling Circuit (Parallel Connection)

    It should be noted that the use of flow controller and a temperature monitoring is man- datory required. The cooling flow must always be started before starting the KEB COM- BIVERT. Other elements in the cooling circuit such as pumps, shut-off valves, ventilation etc. must be attached according to the cooling system and the local conditions.

  • Page 70: Revision History

    REVISION HISTORy 12 Revision History Version Date Description 2016-10 Completion Pre-series 2018-01 Changeover to new KEB-ci, general changes...
