6.3.22 Inversion of Out-
puts (do.42)
6.3.23 Output Terminal
Status (ru.25)
6.3.24 Hardware output
allocation (do.51)
Chapter Section Page
6 3 18

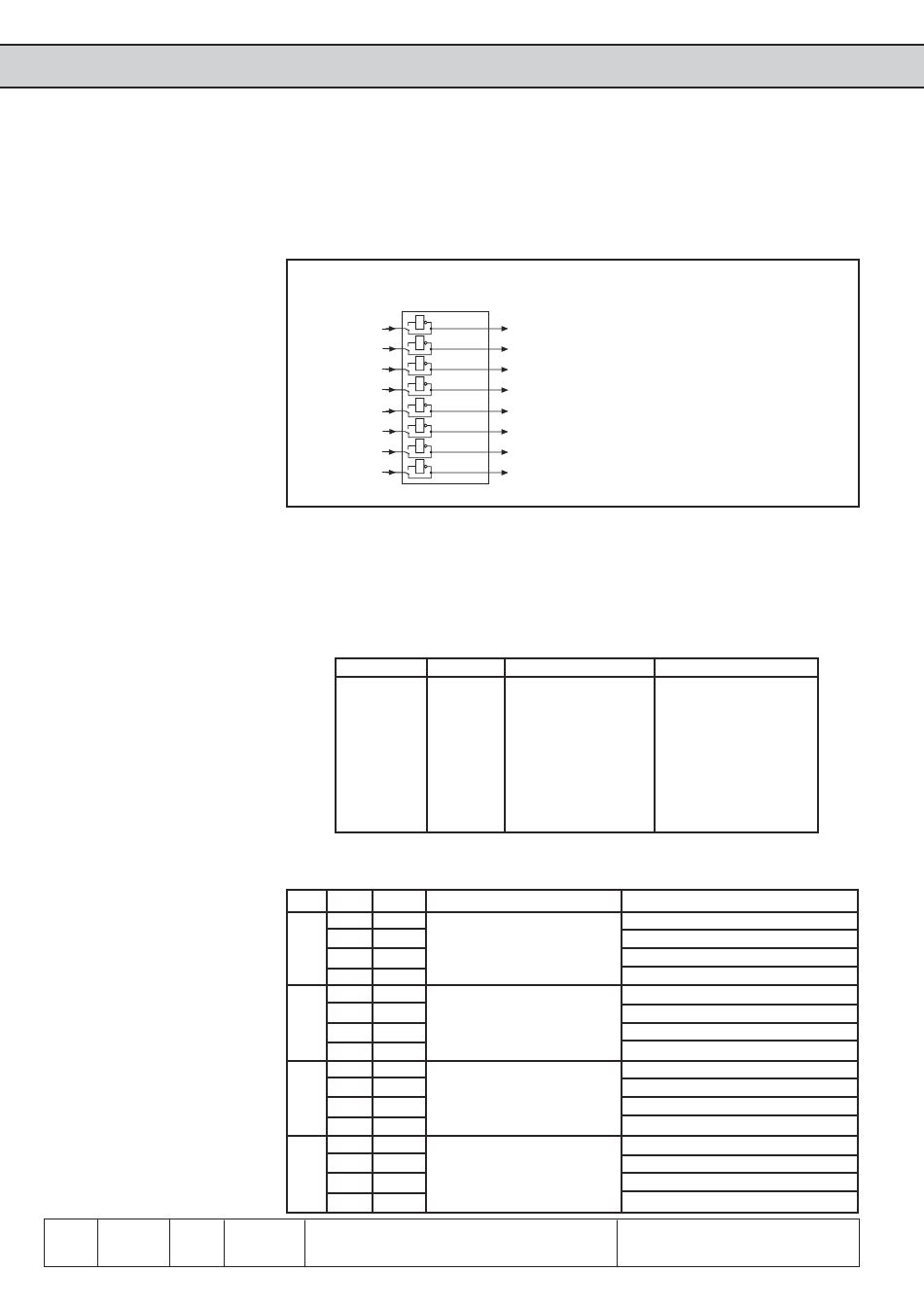

As shown in Fig. 6.3.21, with parameter do.42 the outputs can be once again inverted
after the linking. The parameter is bit-coded, i.e. according to following table the value
belonging to this output must be entered. If several outputs shall be inverted the sum
is to be formed
Fig. 6.3.21 Inverting the outputs
Bit 0
Bit 1
Bit 2
Bit 3
do.41
Bit 4
Bit 5
Bit 6
Bit 7
Parameter ru.25 indicates the logic condition of the digital outputs after the allocation
by do.51. Parameter ru.80 indicates the logic condition before the allocation. It is
irrelevant whether the output is set due to conditions or by inverting. If an output is set
the appropriate decimal value, according to the table below, is output. If several outputs
are set, then the sum of the decimal values is output.
Terminal
X2A.18
X2A.19
X2A.24...26
X2A.27...29
-
-
-
-
With do.51 the output signals are assigned to the output terminals O1, O2, R1 and R2.
The assignment is done according to following table:
Bit Value Signal Output
0 + 1 0 O1
1 O2
2 R1
3 R2
2+3 0 O1
4 O2
8 R1
16 R2
4+5 0 O1
16 O2
32 R1
48 R2
6+7 0 O1
16 O2
32 R1
48 R2
Date Name: Basis
28.01.03 KEB COMBIVERT F5
do.42
Terminal
1
1
X2A.18
2
1
X2A.19
4
1
X2A.24...26
8
1
X2A.27...29
16
1
-
32
1
-
64
1
-
1 128
-
Name Function
O1 Transistor output
O2 Transistor output
R1 Relay output
R2 Relay output
OA Internal output
OB Internal output
OC Internal output
OD Internal output
O1 (terminal X2A.18)
O2 (terminal X2A.19)
R1 (terminal X2A.24...26)
R2 (terminal X2A.27...29)
Digital In- and Outputs
Name Function
O1 Transistor output
O2 Transistor output
R1 Relay output
R2 Relay output
OA Internal output
OB Internal output
OC Internal output
OD Internal output
Decimal values ru.25
1
2
4
8
16
32
64
128
Default
x
x
x
x
