Drive-Mode
4.4 Drive-Mode
4.4.1 Adjustment
Possibilities
4.4.2 Display and
Keyboard
4.4.3 Setpoint Display /
Setpoint Input
The actual set value could be
read by bus at Sy.45.
© KEB Antriebstechnik, 2002
All Rights reserved
The Drive-Mode is a special operating mode of the KEB COMBIVERT. It allows an
easy manual start-up. To activate the Drive-Mode enter the password Ñ500ì in
ëCP.0í or ëud.0í. Following settings are possible:
ñ Stop / Start / Run
ñ Setpoint value
ñ Direction of rotation
All other settings like setpoint limitation, acceleration time, deceleration time etc.
correspond to the preselection in the parameter sets.
Hardware condition: The control release must be bridged!
Rotation display
Interface check
Transmission "LED on"
reduce
set value
START
ENTER FUNC.
F/R SPEED
STOP

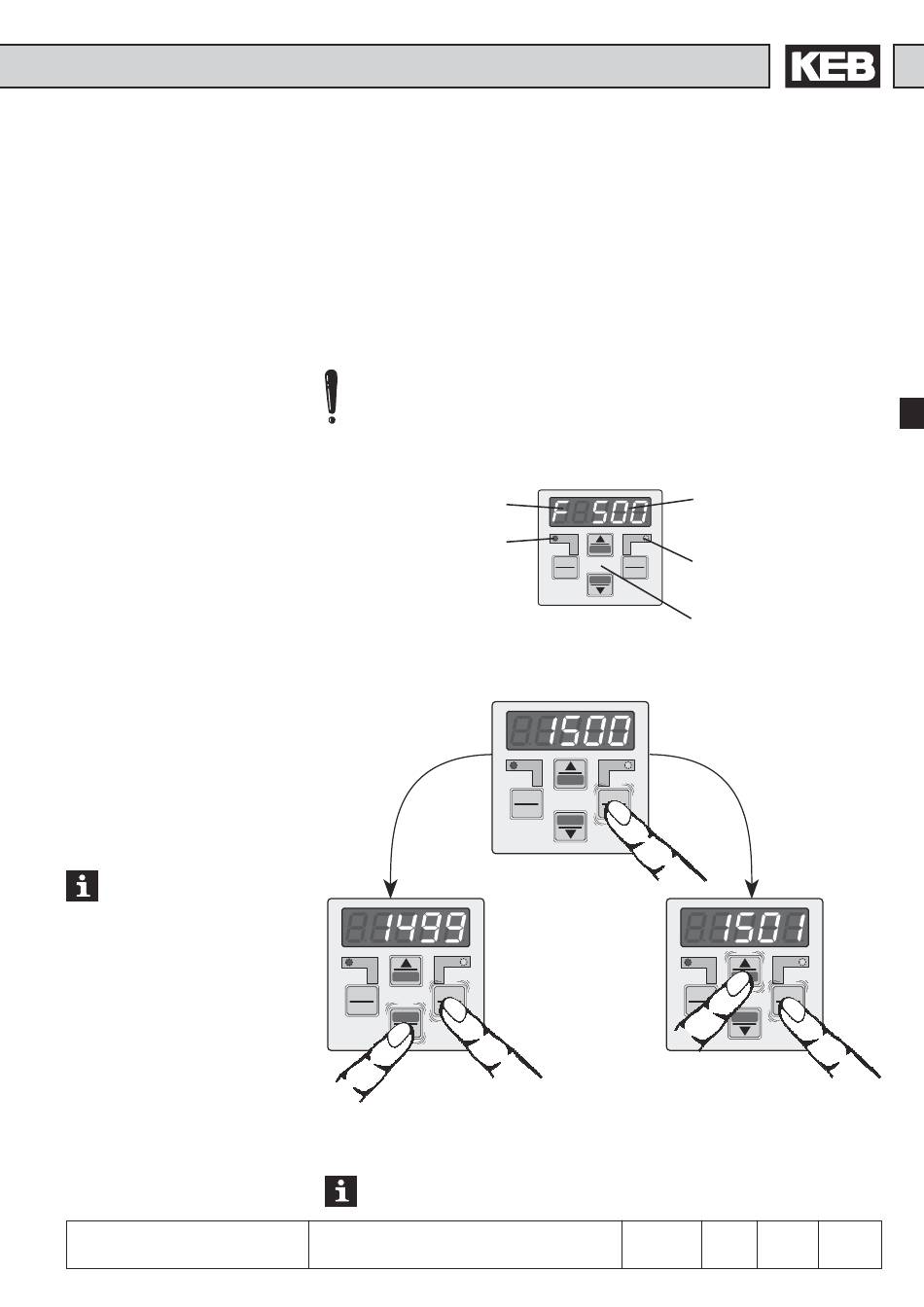

Press the SPEED-key and
reduce the displayed setpoint
value with the DOWN-key.
The setpoint entry via keyboard is possible only for parameter ud.9 = 0 (see
4.4.7).
Name: Basis
KEB COMBIVERT F5-M / S
Operation
START
ENTER FUNC.
F/R SPEED
STOP
The adjusted setpoint value is
displayed for as long as the
SPEED-key is pressed.
START
ENTER FUNC.
F/R SPEED
STOP
ENTER
Press the SPEED-key and
increase the displayed setpoint
value with the UP-key.
Date
17.05.04
Display operating status /
actual speed / setpoint
speed
Status-/ Error display
Normal "LED on"
Error "LED blinking"
Operator panel
increase
set value
START
FUNC.
F/R SPEED
STOP
