Quantum Scalar i6000 Installation Manual page 99

cable (W11), power distribution cable to library (W12), power distribution cable to drive cluster (W13)
door interlock cable (W15), power supply status cable (W16), and I/O management unit cable (W17).

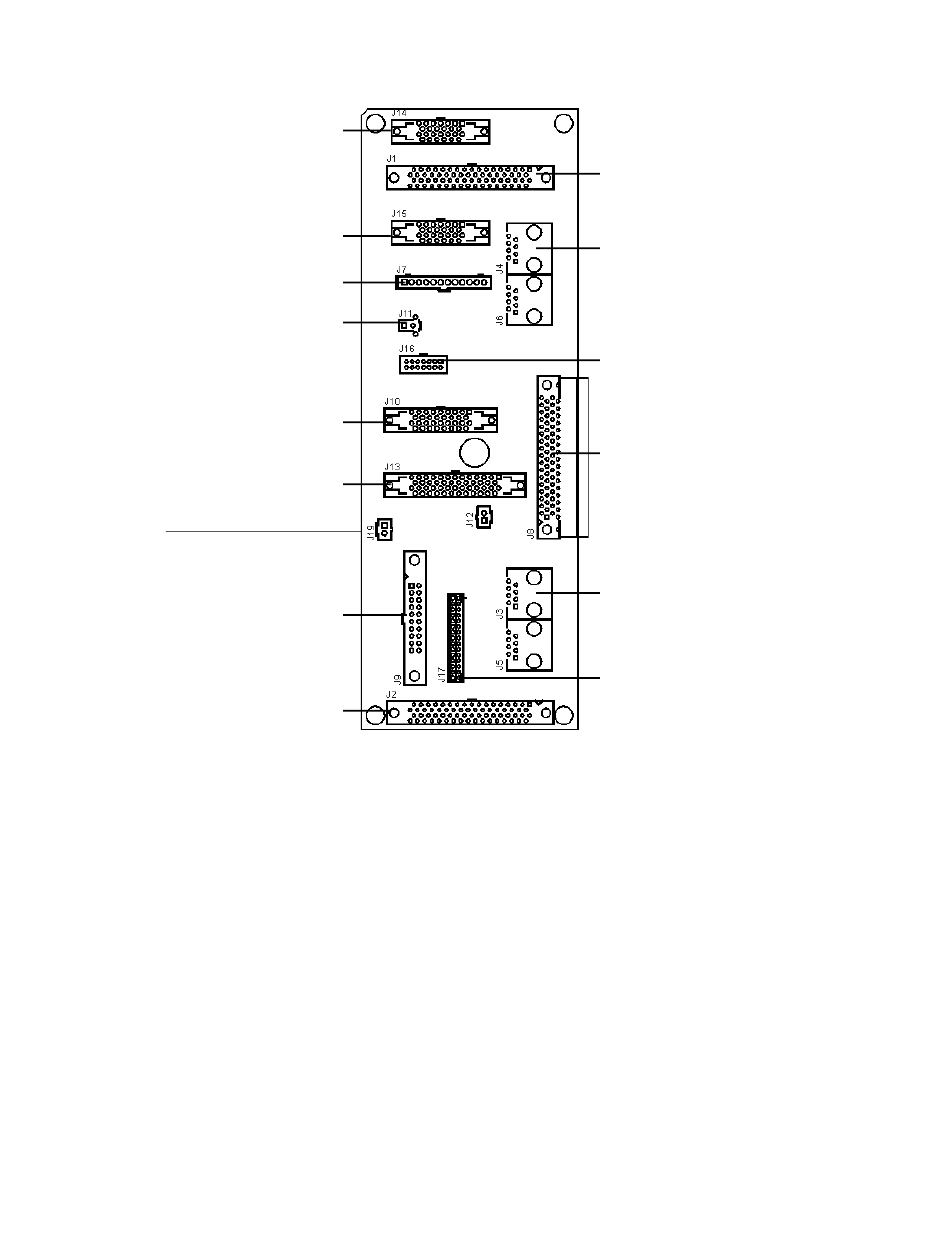

connector: J14
plug: W3 to lower drive cluster
connector: J15
plug: W3 to upper drive cluster
connector: J7
plug: W6 to I/E station
connector: J11
plug: W15 to door interlock
connector: J10
plug: W11 to I/O management unit;
connector: J13
plug: W7 to I/O management unit;
CAN interface
plug: J19
connector: 1 x 2 aisle light
cable
connector: J9
plug: W5 to power enclosure
connector: J2
plug: W1 to LBX extended
5 Use your thumb to unsnap the IEX board from the standoffs, and then unplug it from the LBX board.
Then use your thumb to unsnap the LBX board from the standoffs.
To avoid damage to the backside of the LBX board, you should use care when removing the LBX board
from the space above the metallic standoffs.
6 Remove the IEX and LBX boards.
Scalar i6000 Installation Guide
Ethernet
connector: J1
plug: W1 to BPI or
from previous LBX
connector: J4
plug: W2 to BPI or
from previous LBX
connector: J16
plug: W16 to I/O management unit
connector: J8
plug: IEX board
connector: J3
plug: W2 to J4 of next LBX
connector: J17
plug: LBX terminator
87
