Removing the Middle X-Axis Rail from Module Eight

You only need to remove the middle X-axis rail from module eight if you are
Note
adding expansion modules to an existing eight module library. Later, you will
replace this rail with a special rail for the expanded configurations.

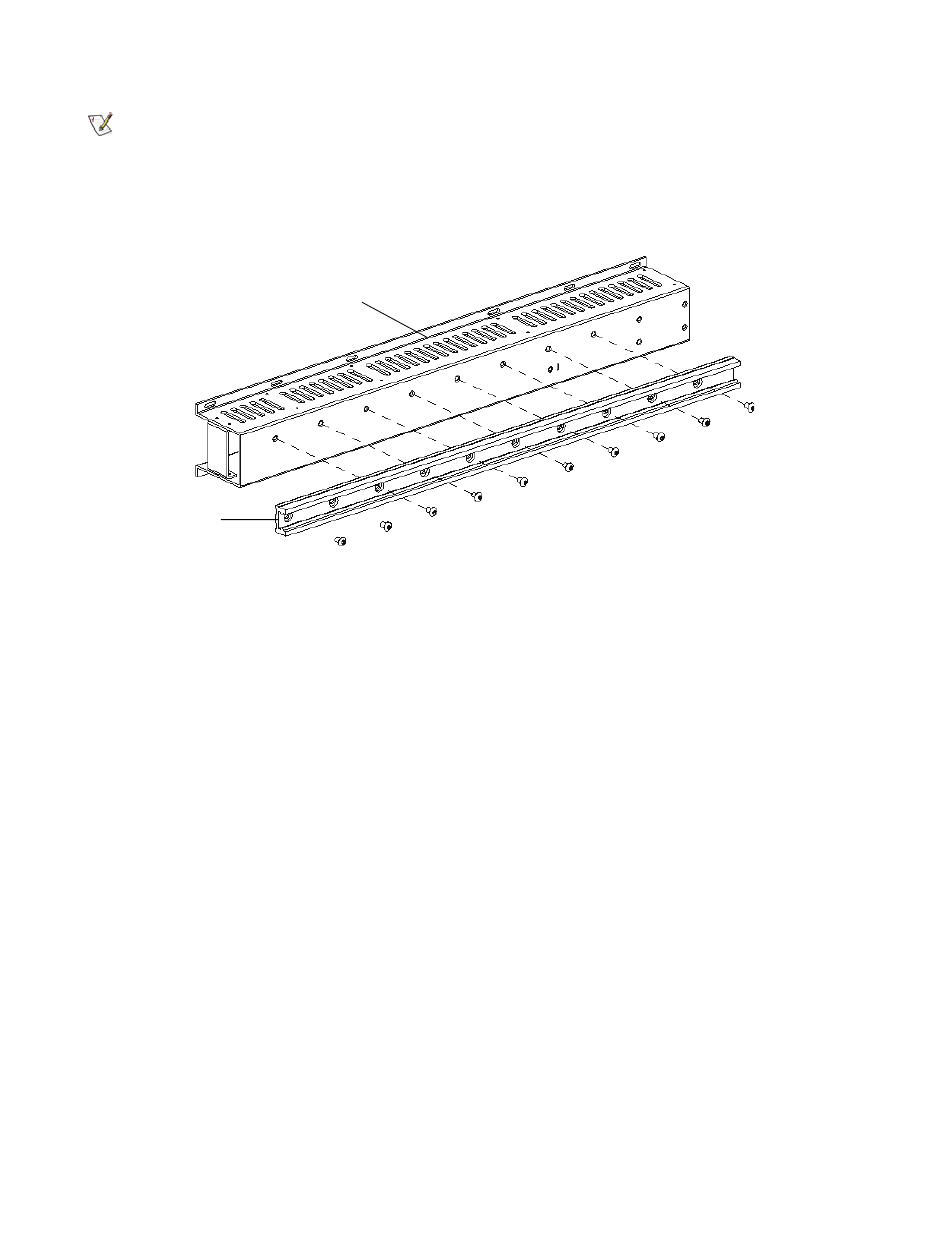

1 Use a 3 mm hex wrench to remove screws 1 through 10.
middle X-axis rail
2 Lift the rail from the frame, and set aside.
Scalar i6000 Installation Guide
X-axis channel
3
2
1
7
6
5
4
10
9
8
