Quantum Scalar i6000 Installation Manual page 79

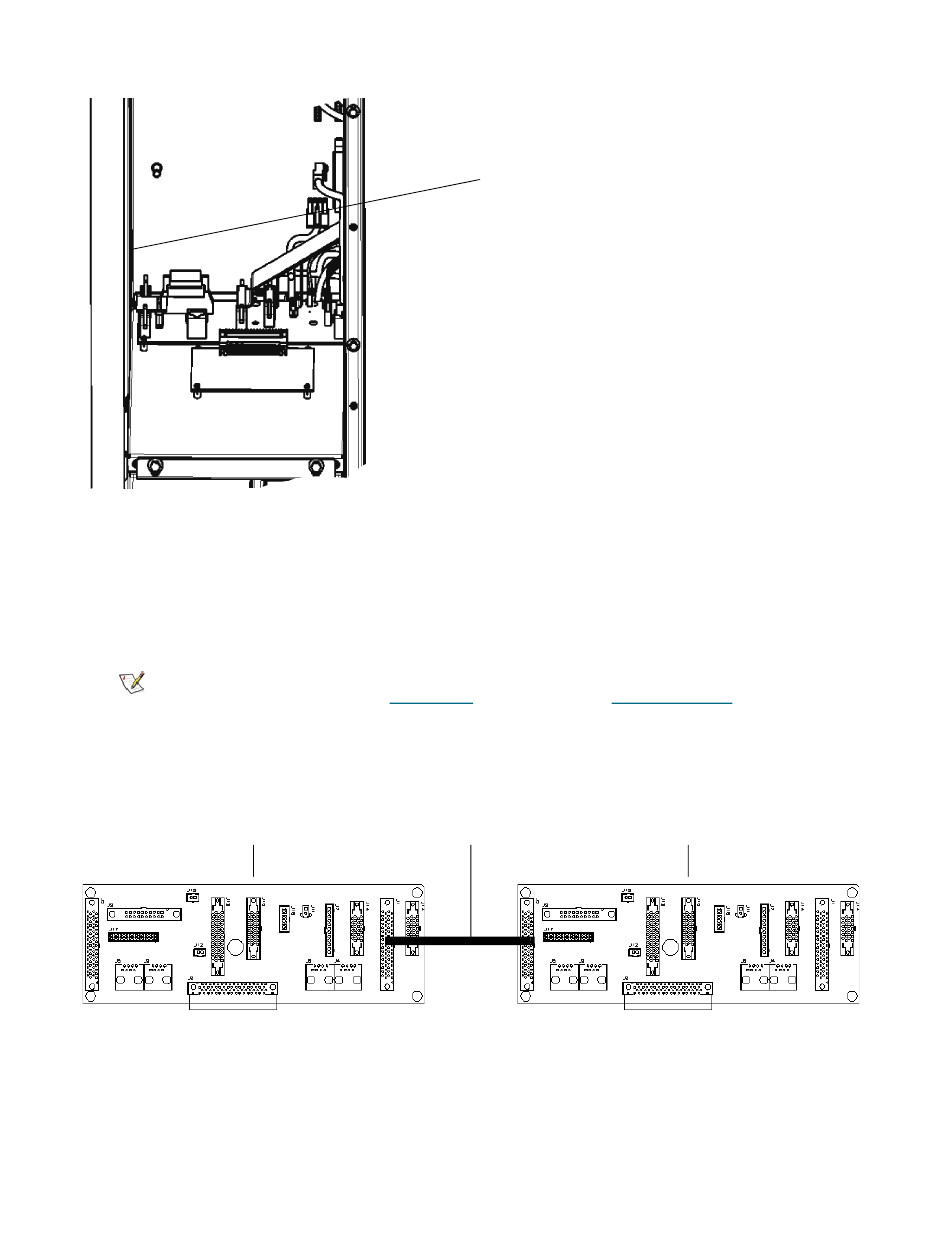

4 Route the W1 and W2 cables from the new expansion module through the opening in the left bulkhead
of the control module or last expansion module in the existing configuration.
5 Connect the W1 ribbon cable to the J2 connection on the LBX board on the control module or last
expansion module in the existing configuration.
This connects the J1 connection on the LBX board in the new expansion module to the J2 connection
on the LBX board in the control module or last expansion module in the existing configuration.
The LBX board has three versions and the terminator has two versions. For
Note
more information, see
page 349. Make certain you have the correct version LBX based on the
library configuration you are installing.
LBX board on
expansion module
J2
J17
Scalar i6000 Installation Guide
route the W1 and W2 cables
through opening in the left
bulkhead
LBX Board on page 345 and
W1 cable
(large ribbon cable)
J1 J2
LBX Terminator on
LBX board on
control module or
expansion module
J1
67
