Either discard the cover plates or leave them with the customer for future use.
4 Remove the drives from the anti-static bag and place them in a location where they cannot be damaged.

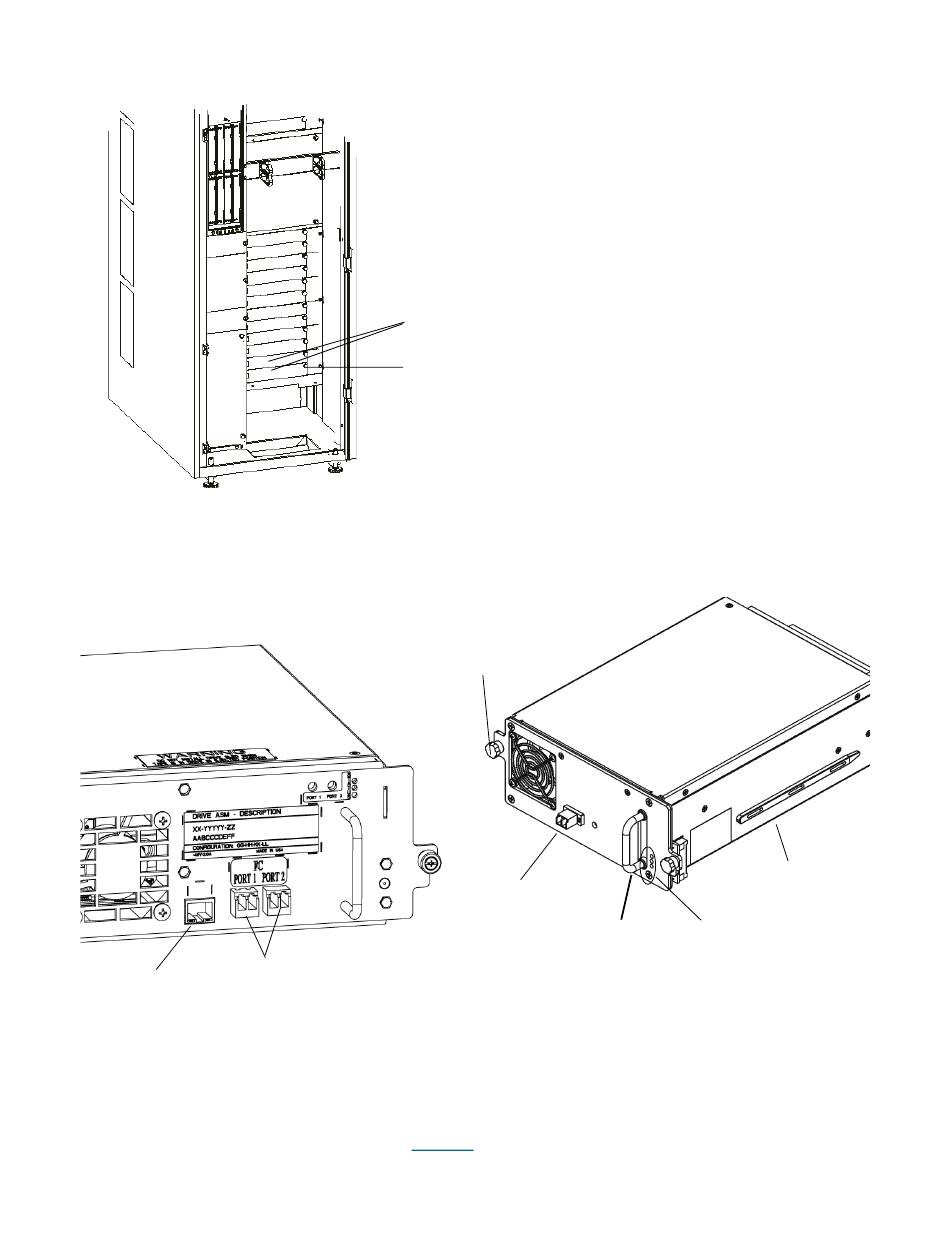

Figure 11 LTO drive examples
LTO-5 tape drive
FC Ports (use Port 1 on left)
EEB port connector
5 Using the notches and markings on the drive sled position, slide the drive in slowly so the guide rails
engage.You might need to tilt the drive up or down in order to engage the rails. Once inserted, the drive
should be flush with no gaps above, below, or on either side. The screws must line up with the screw
holes.
6 Use the #2 Phillips screwdriver to tighten the two thumbscrews on the drive.
7 Follow the numbering scheme shown in
8 Detach the ESD strap.
106
cover plates
thumbscrew
thumbscrew
FC connector
Figure 7 on 101 when installing any additional drives.
LTO-3 tape drive
guide rail
FC LED status LEDs
Installing Drives and Blades
