Figure 18 Section, Column, And Row Numbering Location For Rack 2 Using Lto Cartridges - Quantum Scalar i6000 Installation Manual

Figure 18 shows the section, column and row numbering for rack 2 of a module using LTO cartridges. See
Figure 16 on 132 to review the rack numbering.
The cartridges in the 24-slot LTO I/E station are addressed as part of column 3
Note
and are in sections 1 through 4 (top to bottom). When you have an I/E station
installed on rack 2, there are no cartridges in columns 3 and 4 of sections 1-5.
See Figure 18

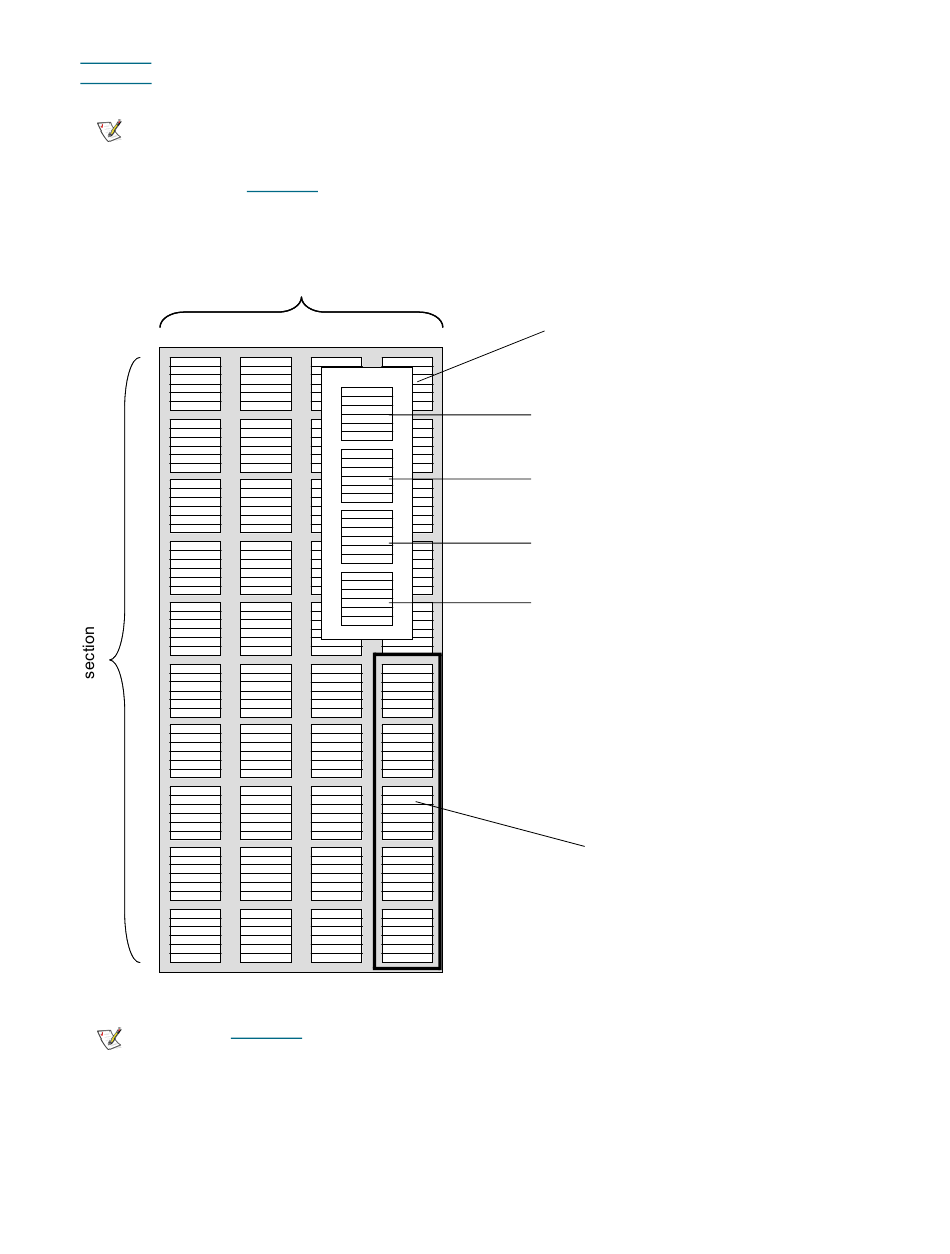

Figure 18 Section, Column, and Row Numbering Location for Rack 2 Using LTO Cartridges
1 1
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
In Figure 18
Note
not exist in a control module. The magazines do exist in expansion modules.
134
for an illustration.
column
2 2 3 3 4 4
on 134, the five magazines shown in column 4, sections 6-10 do
I/E station
column 3, section 1
column 3, section 2
column 3, section 3
column 3, section 4
this column of magazines are
not present in a control module
Installing Cartridges
