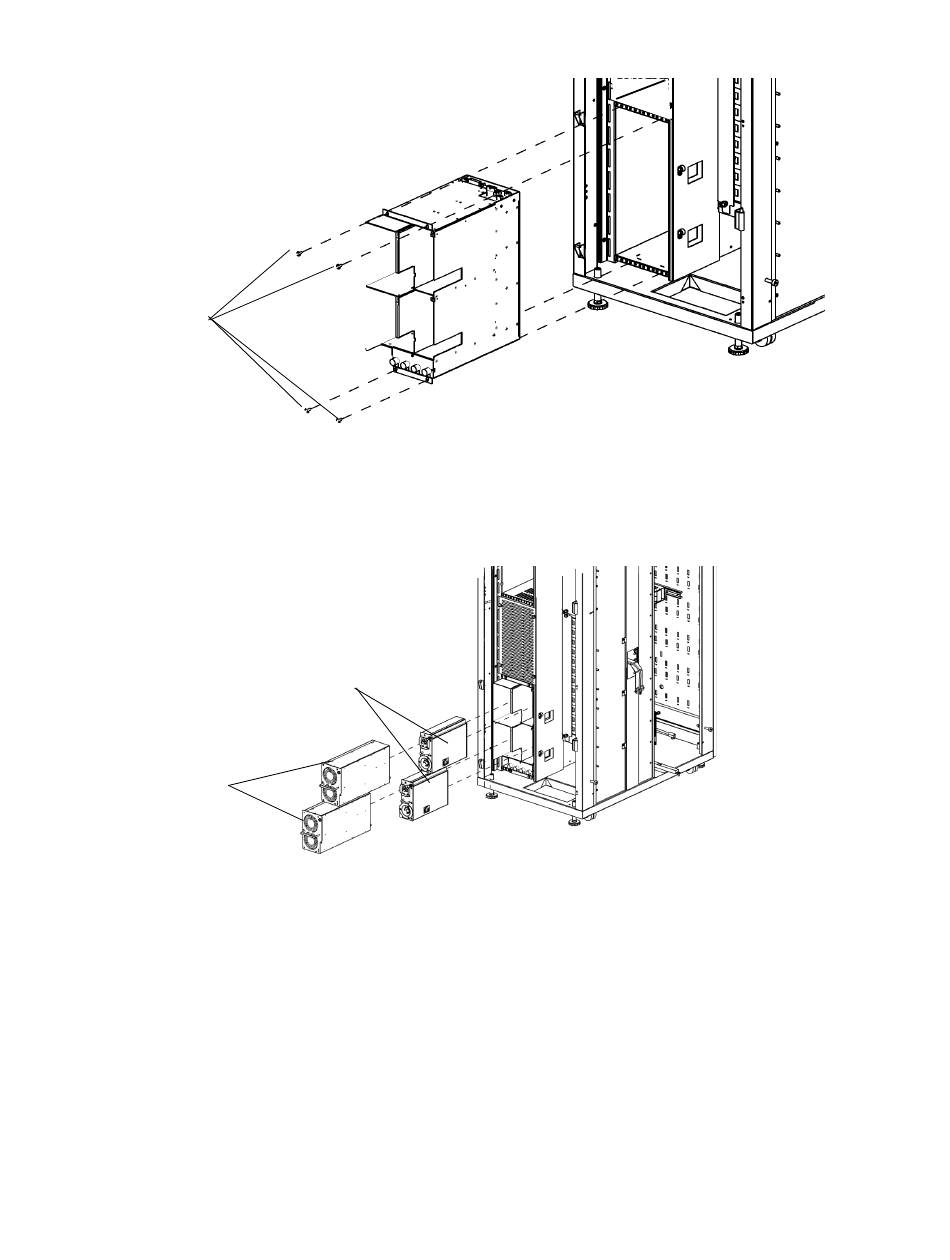

Slide the power chassis into the module and attach it using the four 7 mm screws.
7 mm screws
9
Install the power supplies and power distribution units.
Not all expansion modules will receive redundant power supplies, as those shown below.
power supplies
10 Through the space the LBX occupied, connect all the cables to the top of the power chassis.
The connections include four white connectors and one gray ribbon cable (the LBX ribbon). You only
need to connect the white connectors from the power chassis.
11 Connect the LBX ribbon cable.
Scalar i2000 Installation Guide
power distribution units
