Quantum Scalar i6000 Installation Manual page 64

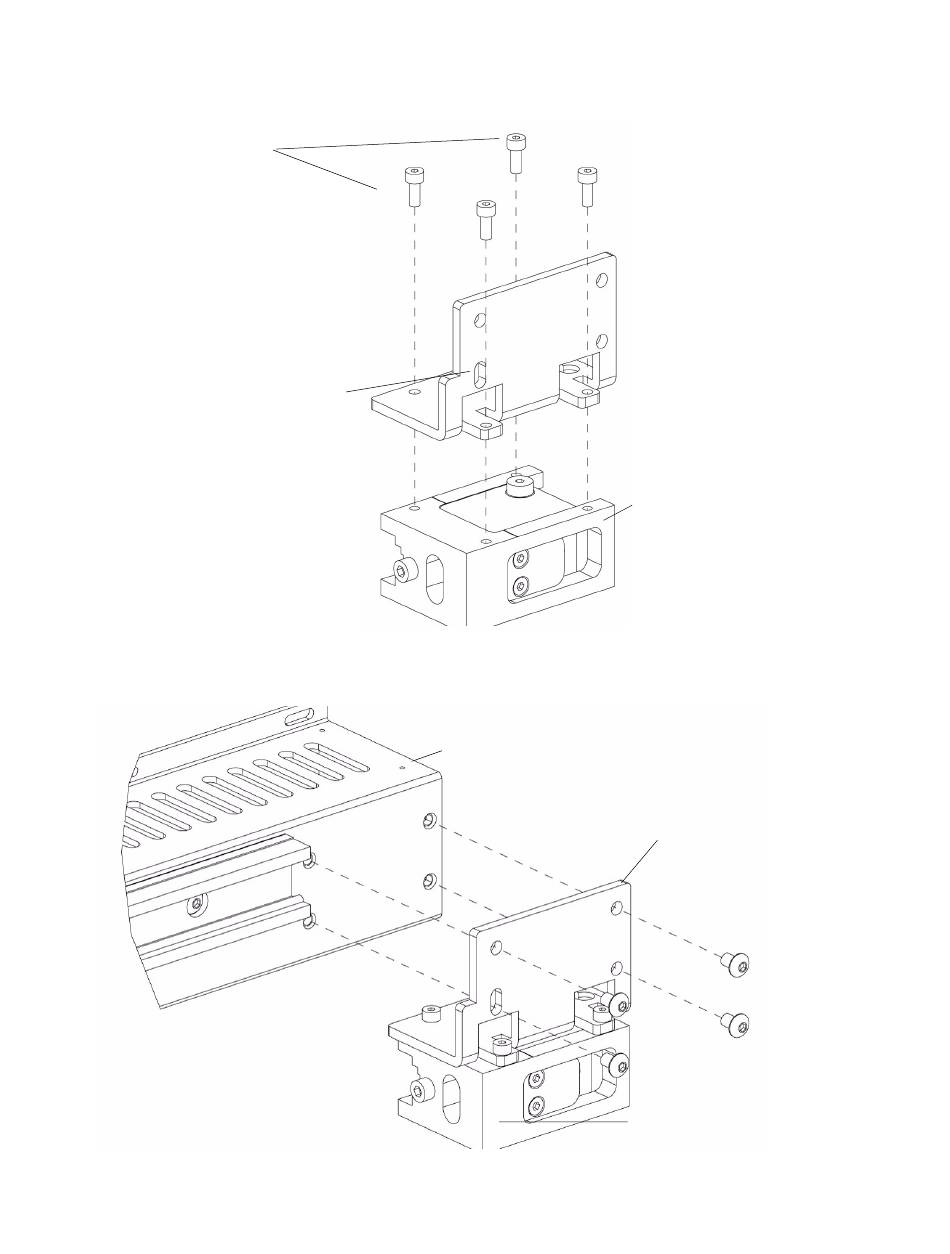

3 Using a 3 mm hex wrench install the 4 screws that attach the tensioner assembly to the replacement
tensioner bracket.
3 mm screws
Replacement tensioner mounting
bracket with slot
4 Use a 3 mm hex wrench to install the fours screws that attach the X-axis tensioner to the substrate of
the last expansion module in your library configuration.
52
substrate
black tensioner assembly
tensioner mounting
bracket
3 mm screws
black tensioner assembly
Installing a Multi-Module Library
