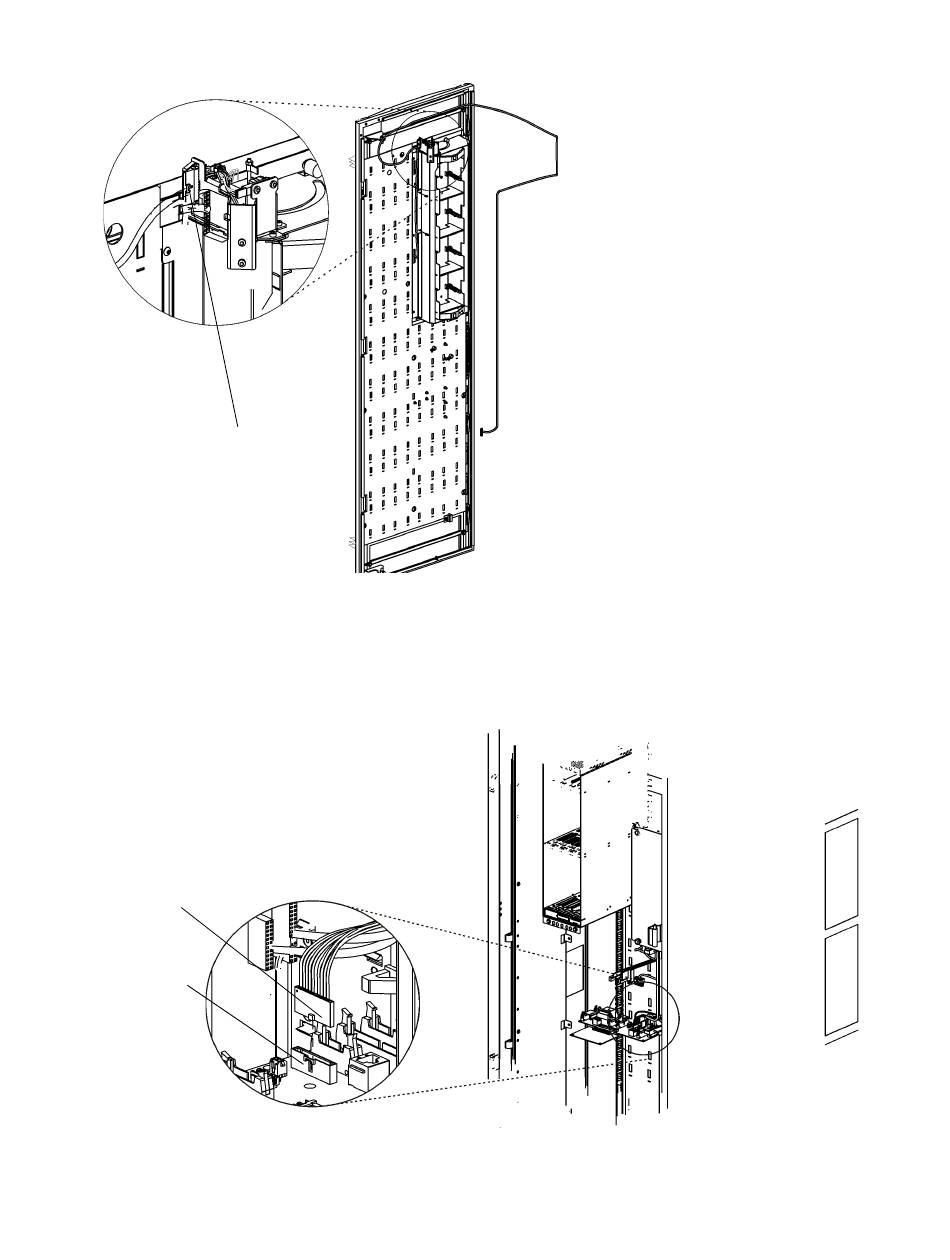

22 Plug the W6 cable into the I/E station and secure the cable using the plastic ties.
W6 cable
23 Route the I/E station cable (W6) from the I/E station lock assembly following the door interlock cable to
toward the rear of the expansion module. Continue routing cable W6 through the drive cluster clamps
down toward the LBX board.
24 Connect cable W6 to the J7 connector on the LBX board.
W6 cable
J7 connector
Scalar i2000 Installation Guide
277
