Removing the X-Axis Chain Assembly
1

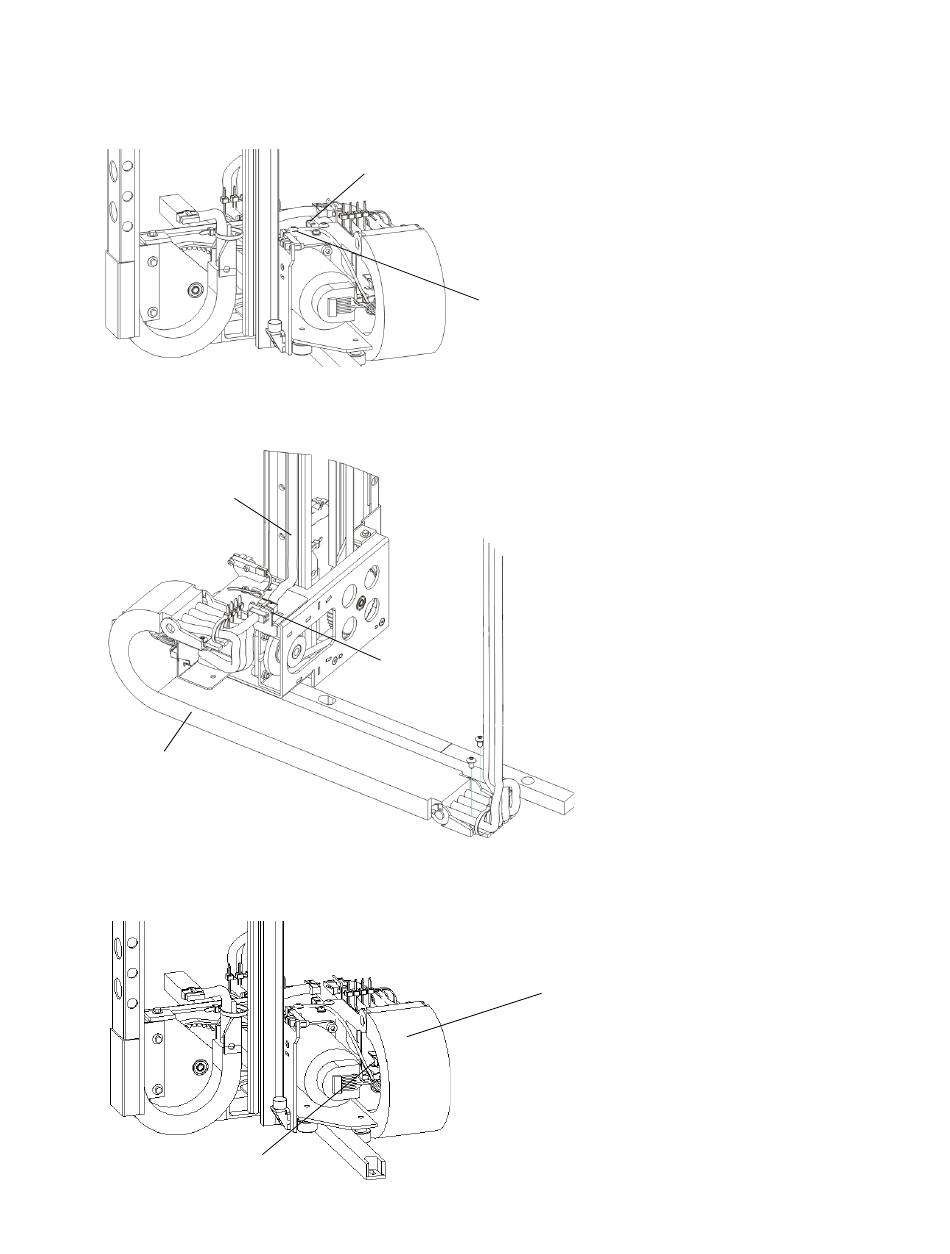

On the top of the X-axis chain assembly, release the Y-axis home sensor cable by flipping up the hold-
down.
2
Disconnect the Y-axis chain (W9) from the X-axis chain assembly (W8).
Y-axis chain
assembly (W9)
X-axis chain
assembly (W8)
3
Disconnect the Y-axis home/motor cable from the X-axis chain assembly (W8).
Y-axis
motor cable
82
hold down
Y-axis home sensor cable
connector
X-axis chain
assembly (W8)
Installing a Multi-Module Library
