4

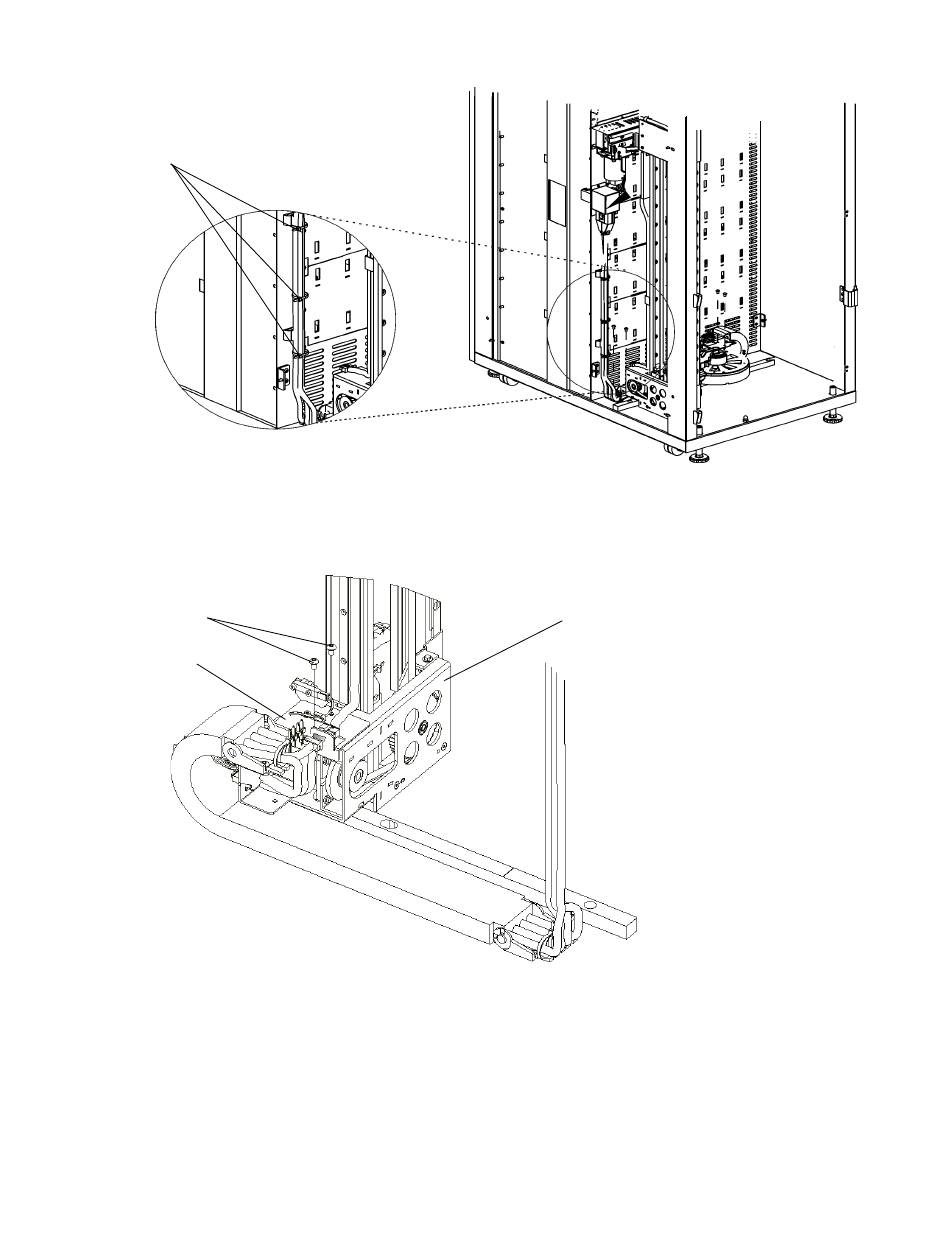

Connect the X-axis chain connector (W8) to the control module bulkhead using Velcro straps.
Velcro straps
5
Use a 3 mm hex wrench to attach the X-axis chain assembly (W8) to the Y-axis drive mount assembly
using two 3 mm screws.
3 mm screws
X-axis chain
assembly
60
Y-axis drive
mount assembly
Installing a Multi-Module Library
