Removing and Replacing the IEX Card

If you are adding one or more expansion modules to an existing eight-module library, each expansion
module you are adding must contain an IEX2 card. The IEX2 card is identified by a red sticker. If an
expansion module you are adding contains an earlier version of the IEX card, you must remove the earlier
version and replace it with an IEX2 card.
CAUTION
New IEX2 cards are identified by red stickers. Earlier IEX card versions
Note
have no stickers.

Removing the IEX Board

Required Tools: None
FRU ID: 105 (IEX board)
1 If the library is not shut down, shut down the library.
For more information, see
2 Open the service door.
3 Attach the ESD strap to your wrist and to an unpainted surface inside the door.

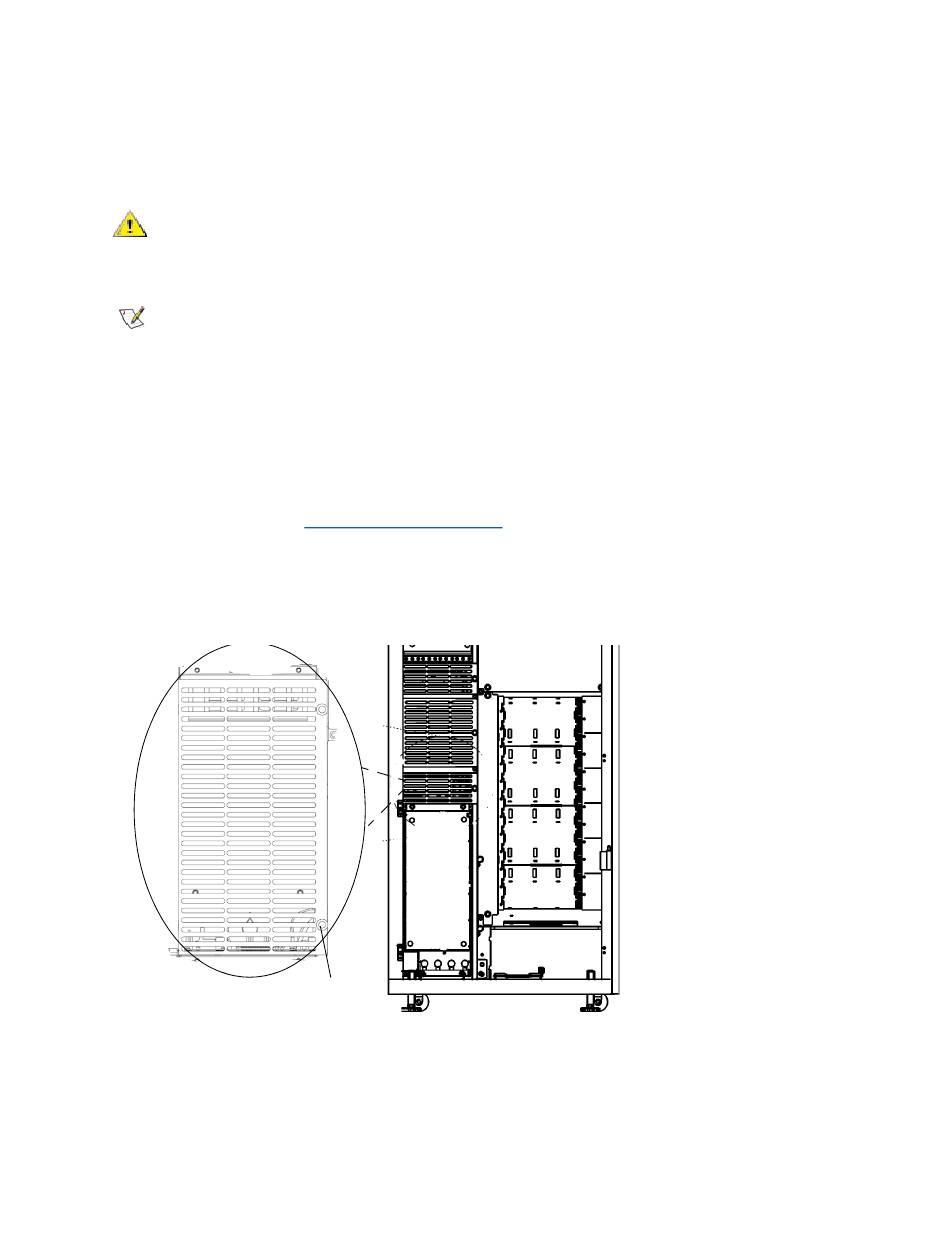

4 Unscrew the thumbscrew and remove the LBX/IEX cover plate.
Scalar i6000 Installation Guide
Only use this procedure if you are preparing to install expansion modules
to an existing eight-module library.
Shutting Down the Library
thumbscrew
on page 232.
